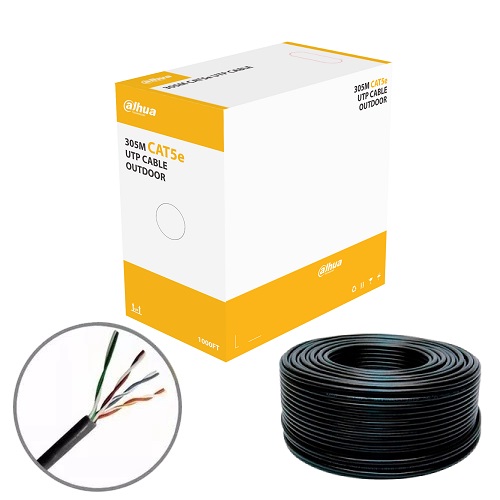

Dahua Outdoor CAT5e UTP Cable 1x305m PFM920-5EU
128.40 €
Dahua Technology Co., Ltd
Products ID: 174094
In supplier warehouse
Available to order: 10+ pcs.
Delivery Time 5–10 business days
Delivery options to:
Choose countryThe Dahua PFM920-5EU is a 305-meter outdoor UTP CAT5e network cable featuring 24AWG oxygen-free copper (OFC) conductors, designed for stable data transmission and Power over Ethernet (PoE) support.
Key Features
- Conductor Material: 99.97% high-purity oxygen-free copper (OFC) with 0.50 mm diameter (24AWG).
- Outer Sheath: MDPE jacket with an outer diameter of 5.2 mm.
- Power over Ethernet: compatible with PoE for transmitting data and power over a single cable.
- Operating Temperature: from –30°C to +60°C.
- Standards Compliance: meets ANSI/TIA 568-C.2 flame retardant class and RoHS requirements.

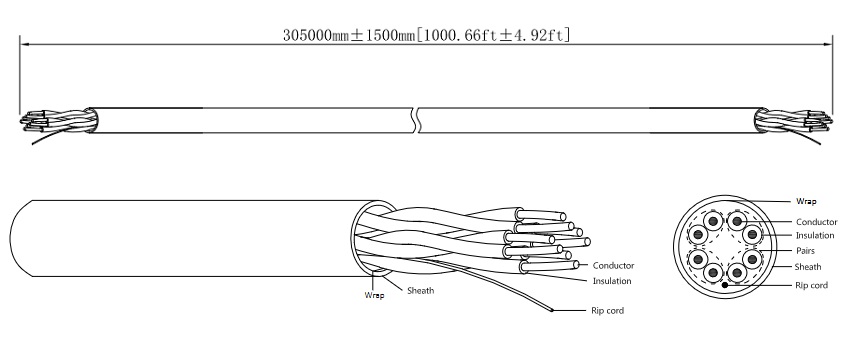

| Cable Type | UTP CAT5e (Outdoor) |
|---|---|
| Length | 305 m |
| Conductor Material | OFC Oxygen-Free Copper (99.97%) |
| Conductor Gauge | 24AWG (0.50 mm ± 0.01 mm) |
| Insulation Material | HDPE |
| Sheath Material | MDPE |
| Sheath Diameter | 5.2 mm ± 0.4 mm |
| Number of Cores | 8-core (4 pairs) |
| Max DC Resistance | 9.5 Ohm/100m |
| Characteristic Impedance | 100 ± 15 Ohm |
| Operating Temperature | -30°C to +60°C |
| Installation Temperature | -5°C to +50°C |
| EAN | 6939554987205 |
|---|
What conductor material is used in this cable?
The cable uses 99.97% high-purity oxygen-free copper (OFC) with a 24AWG (0.50 mm) gauge.
Is this cable compatible with PoE?
Yes, it supports Power over Ethernet (PoE), allowing data and power delivery through a single cable.
