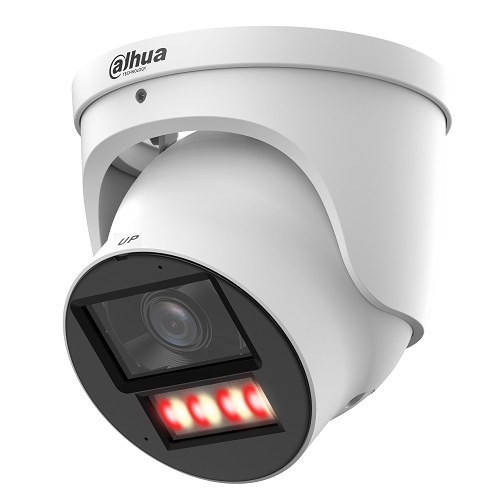

8 MP 4K IP network camera IPC-HDW5859H-ASE-PV-PRO, 2.8 mm
263.50 €
Dahua Technology Co., Ltd
Products ID: 197997
In supplier warehouse
Available to order: 10+ pcs.
Delivery Time 5–10 business days
Delivery options to:
Choose countryThe IPC-HDW5859H-ASE-PV-PRO is an 8 MP IP surveillance camera with 3840 × 2160 resolution and a fixed 2.8 mm F1.0 lens. It provides a 109° horizontal field of view, IR illumination up to 60 m and warm-light illumination up to 50 m.
Analytics and event search
Perimeter protection functions support human, animal and vehicle classification. Face detection, people counting and heat mapping are also available. AcuPick works with back-end devices to find targets, while intelligent event search works with a Smart NVR.
- Video: 120 dB WDR, H.265/H.264 encoding and 4 video streams.
- Audio and warnings: dual built-in microphones, a speaker, warm-light warnings and customisable sound alarms.
- Storage: Micro SD cards up to 1 TB, FTP, SFTP or NAS.
- Housing: metal construction, IP67 and IK10 protection, and operation from −40 °C to +60 °C.
Connections and selection points
Power options are 12 VDC, PoE+ (802.3at) and ePoE. Audio, alarm and RS-485 interfaces support system integration. Image rotation at 90° or 270° is limited to 4 MP (2688 × 1520) resolution and below. DORI distances describe visible image detail, not the operating range of intelligent functions.
| Image sensor | 1/1.8" CMOS |
|---|---|
| Maximum resolution | 3840 (H) × 2160 (V) |
| Electronic shutter speed | Auto/manual; 1/3 s–1/100 000 s |
| Minimum illumination | 0.0005 lux at F1.0 (colour, 30 IRE); 0.0003 lux at F1.0 (B/W, 30 IRE); 0 lux with illuminator on |
| Illumination distance | IR: up to 60 m (196.85 ft); warm light: up to 50 m (164.04 ft) |
| Angle adjustment | Pan: 0°–360°; tilt: 0°–78°; rotation: 0°–360° |
| Lens type | Fixed-focal |
| Focal length | 2.8 mm |
| Maximum aperture | F1.0 |
| Field of view | 2.8 mm: horizontal 109°; vertical 59°; diagonal 131° |
| Close focus distance | 2.8 mm: 3.2 m (10.50 ft) |
| DORI distances | Detect: 82.0 m (269.03 ft); observe: 32.8 m (107.64 ft); recognise: 16.4 m (53.81 ft); identify: 8.2 m (26.90 ft). These are not intelligent-function distances. |
| EPTZ | Yes |
| Perimeter protection (IVS) | Intrusion, tripwire and fast moving with vehicle, animal and human classification; loitering, people gathering, parking and stay detection. Large-scale AI models and self-learning to filter false alarms. |
| Smart motion detection | SMD 4.0 |
| AcuPick | Deep-learning target matching and search for people, animals and motor vehicles in live and recorded video; works with back-end devices. |
| Face detection | Snapshots, optimisation and best-face upload; face enhancement and exposure; 6 attributes and 8 expressions; face, one-inch photo or custom framing; real-time, quality-priority and optimised snapshot strategies; angle filter and optimisation time setting. |
| People counting | Tripwire counting: day/week/month/year reports; area counting and queue management: day/week/month reports; report export; 4 rules for each function. |
| Heat map | Yes |
| Video metadata | Motor vehicle, non-motor vehicle, face and human body detection; snapshots, optimisation and best-face upload. Attributes: 6 for motor vehicles, 6 for non-motor vehicles, 6 for faces and 8 for human bodies. |
| Smart search | With Smart NVR: refined intelligent search, event extraction and merging into event videos. |
| Video compression | H.265; H.264; H.264H; H.264B; MJPEG for sub stream only |
| AI coding | AI H.265; AI H.264; includes Smart H.265+ and Smart H.264+ |
| Video frame rate | Main: 3840 × 2160, 1–25/30 fps; sub: 704 × 576, 1–25 fps / 704 × 480, 1–30 fps; third: 1920 × 1080, 1–25/30 fps; fourth: 1280 × 720, 1–25/30 fps. Multiple streams are subject to total encoding capacity. |
| Streaming capability | 4 streams |
| WDR | 120 dB |
| Image rotation | 0°/90°/180°/270°; 90°/270° supported at 4M (2688 × 1520) resolution and below only |
| Privacy masking | 4 mosaics or 8 colour blocks |
| Built-in microphones | Dual microphones |
| Built-in speaker | Yes |
| Network port | RJ-45 (10/100 Enhancement Base-T) |
| Interoperability | ONVIF profiles S, G, T and M; CGI |
| Storage | FTP; SFTP; Micro SD card up to 1 TB; NAS |
| Management software | DSS; DMSS; DoLynk Care |
| Mobile client | iOS; Android |
| Light warning | Warm light; flashing or solid illumination for 5–30 s; flash frequency: high, medium, low |
| Sound warning | 11 sound alarms; import of 10 custom alarms; sound level 0–100; playback count 1–10 |
| RS-485 | 1; baud rate 1 200–115 200 bps |
| Audio input | 1 channel, RCA |
| Audio output | 1 channel, RCA |
| Alarm input | 1 channel; wet contact, 5 mA, 3–5 VDC |
| Alarm output | 1 channel; dry contact, 1 000 mA at 30 VDC / 500 mA at 50 VAC |
| Power output | 12 VDC; maximum current 165 mA, peak current 700 mA |
| Power supply | 12 VDC (±30%); PoE+ (802.3at); ePoE |
| Dual power backup | When powered by an adapter and PoE simultaneously, disconnecting either source allows continued operation without restarting. |
| Power consumption | Basic: 4.1 W (12 VDC), 4.8 W (PoE); maximum with IR, WDR, intelligence, siren and light deterrence active: 21.6 W (12 VDC), 24.2 W (PoE) |
| Operating temperature | −40 °C to +60 °C (−40 °F to +140 °F) |
| Protection | IP67; IK10 |
| Casing material | Metal |
| Net weight | 0.92 kg (2.03 lb) |
| EAN | 6937552406377 |
|---|
What power options does the camera support?
It supports 12 VDC (±30%), PoE+ (802.3at) and ePoE. If an adapter and PoE supply power simultaneously, disconnecting either source does not cause a restart.
Does intelligent search require a recorder?
Smart search works with a Smart NVR. AcuPick also works with back-end system devices to locate targets in live and recorded video.
