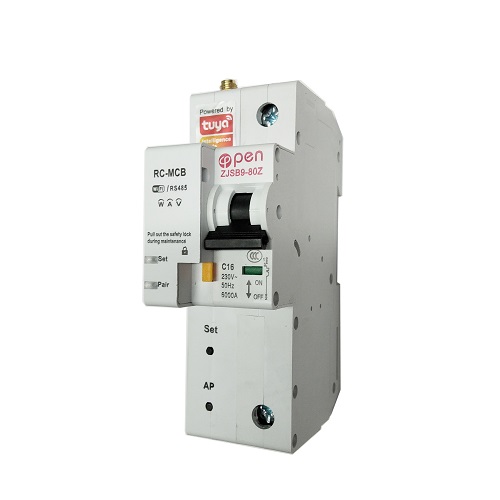

TUYA Smart 1-Pole Circuit Breaker Wi-Fi, RS485, 16A, DIN Rail
Price: 112.70 €
| Products ID: | 171043 |
|---|---|
| Manufactured by: | Tuya |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990001081942 |
Delivery options to:
Choose countryThe TUYA Smart 1-pole circuit breaker enables remote electrical control and real-time energy monitoring via Wi-Fi or RS485 using the Tuya Smart and Smart Life applications.
Key Features
- Integrated VAW metering function for monitoring voltage, current, and power consumption
- Remote control via smartphone, voice assistants (Amazon Alexa, Google Assistant), or schedules
- Mounting on standard 35 mm DIN rail
- Protection against overvoltage, undervoltage, and short circuits
- Includes one Wi-Fi antenna in the package
| Rated voltage | AC 230 V |
|---|---|
| Current | max. 16A |
| Frequency | 50 Hz |
| Wi-Fi frequency | 2.4 GHz |
| Poles | 1 |
| Communication interface | RS485 |
| Supported metering | Voltage (V), Current (A), Power (W) |
| Installation | On DIN rail, 35 mm |
| Protection class | IP20 |
| Operating temperature | -25°C ~ +65°C |
| Mechanical service life | >100,000 cycles |
| Dimensions | 35 x 109 x 74 mm |
| Weight | 257 g |
| Color | White |
| App compatibility | TuyaSmart / SmartLife (Android, iOS) |
What electrical parameters does this device measure?
The circuit breaker monitors voltage (V), current (A), and power (W) in real time via the app.
How is this circuit breaker installed?
It is designed for mounting on a standard 35 mm DIN rail.
What is included in the package?
The set includes the 1-pole smart circuit breaker and 1 Wi-Fi antenna.
