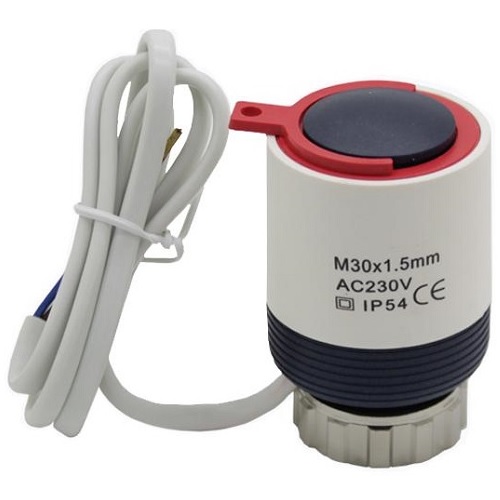

Thermal Actuator NC, 230V AC, M30x1.5mm, White
Price: 21.20 €
| Products ID: | 171224 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000260096 |
Delivery options to:
Choose countryThe electric thermal actuator is designed to control heat distribution equipment in water heating systems. It receives signals from room thermostats or hub controllers to regulate water flow according to set parameters.
Key Features
- Type: NC (normally closed)
- Connection thread: M30x1.5 mm
- Power consumption: 2 W
- Force: 100 N (±10%)
- Cable length: 80 cm
- Protection class: IP54
| Type | NC (normally closed) |
|---|---|
| Operating voltage | AC 230V, 50/60Hz |
| Power consumption | 2W |
| Starting current | 50mA |
| Force | 100N (± 10%) |
| Actuation time | up to 180s |
| Thread | M30x1.5mm |
| Cable length | 80cm |
| Safety class | IP54 |
| Operating temperature | -20°C~+50°C |
| Operating humidity | 5%~95%RH |
| Dimensions | 40 x 40 x 68 mm |
| Colour | white |
| Certificates | CE EN60730 |
Can this actuator be used with a solid fuel boiler?
No, it is not suitable for use in a heating system powered by a solid fuel boiler.
What connection thread does the thermal actuator have?

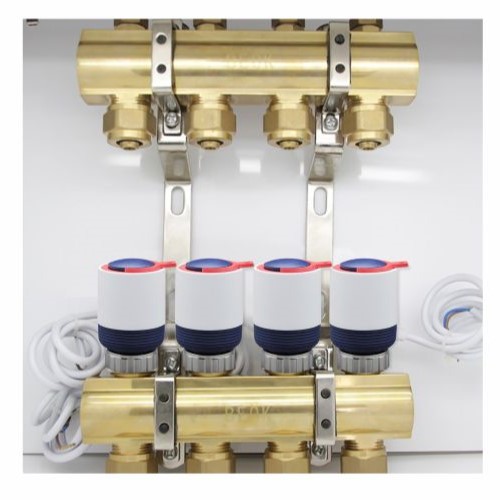

It is equipped with an M30x1.5mm thread for connecting to heating manifolds.
