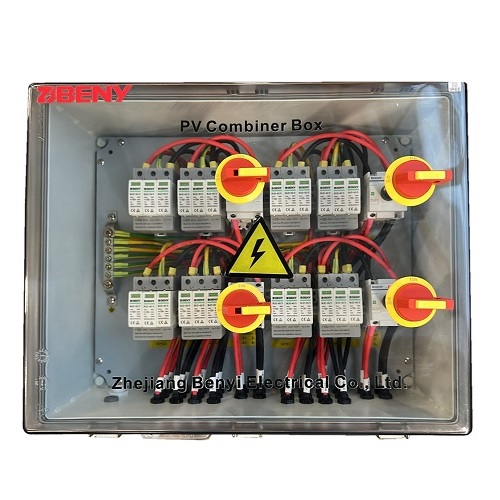

Solar PV Combiner Box, DC 8in-8out, 1000V, IP66
Price: 649.80 €
| Products ID: | 170992 |
|---|---|
| Manufactured by: | Beny |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000821365 |
Delivery options to:
Choose countryDC string combiner box designed for 8-string solar PV systems, providing surge protection and isolation on the solar DC side.
Key Features
- 8 input and 8 output configuration for 1000V DC systems
- IP66 waterproof and IK10 impact-resistant enclosure
- Flame retardant rating V0 and UV resistance
- Equipped with two 6P 1000V 50A DC switches with lockable handles
- Includes eight 3P 1000V 40kA DC surge protective devices (SPD)
- Supplied with MC4 connectors and cable glands
| Inputs / Outputs | 8 inputs / 8 outputs |
|---|---|
| Rated Voltage | 1000V DC |
| Ingress Protection | IP66 |
| Impact Resistance | IK10 |
| Flame Retardancy | V0 |
| DC Switch | 2 pcs. 6P, 1000V, 50A |
| DC SPD | 8 pcs. 3P, 1000V, 40kA |
| Package Contents | MC4 connectors and glands |
How many PV strings does this combiner box support?
It is designed for an 8-string solar PV system with 8 inputs and 8 outputs.
What is the protection rating of the enclosure?
The enclosure features an IP66 waterproof rating, IK10 impact resistance, UV resistance, and a V0 flame retardant rating.
