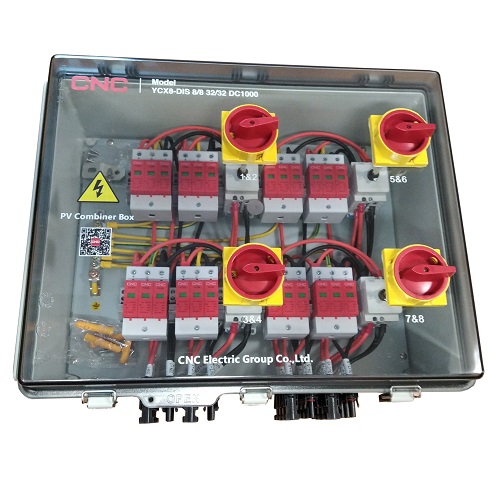

Solar PV Combiner Box DC 8-In 8-Out 1000V IP66
Price: 526.50 €
| Products ID: | 171199 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942367528787 |
Delivery options to:
Choose countryThe DC string combiner box is designed for 8 string in and 8 string out photovoltaic systems, providing surge protection and isolation on the solar DC side.
Key Features
- 8 input and 8 output configuration for 1000V DC solar systems
- Waterproof IP66 enclosure with V0 flame retardancy and UV resistance
- Includes 4 pcs 1000V 50A DC switches with lockable handles
- Equipped with 8 pcs 1000V 40kA DC surge protection devices (SPD)
- Fitted with MC4 connectors, enclosure dimensions: 528 x 458 x 358 mm
- Compliant with IEC60529, UL508i, and IEC60947-3 Pv2 standards
| Inputs / Outputs | 8 in / 8 out |
|---|---|
| Rated Voltage | 1000V DC |
| Protection Rating | IP66 |
| Dimensions | 528 x 458 x 358 mm |
| Flame Retardant Rating | V0 |
| Connectors | MC4 |
| DC Switch | 4 pcs (1000V, 50A) |
| DC Surge Protection (SPD) | 8 pcs (1000V, 40kA) |
| Standards | IEC60529, UL508i, IEC60947-3 Pv2 |
What system configuration is this box designed for?
It is designed for solar PV systems requiring 8 string inputs and 8 string outputs at 1000V DC.
What surge protection devices are included?
It includes 8 pieces of 1000V, 40kA DC surge protection devices (SPD) specifically designed for solar PV protection.
