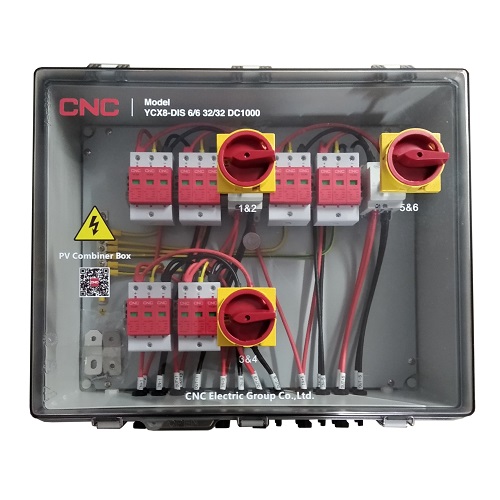

Solar PV Combiner Box DC 6in-6out 1000V IP66
Price: 396.40 €
| Products ID: | 171198 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942367528770 |
Delivery options to:
Choose countryThe DC string box is designed for 6 string in and 6 string out solar photovoltaic systems, providing surge protection and isolation on the solar DC side.
Key Features
- Configuration: 6 inputs and 6 outputs for 1000V DC systems
- Equipped with MC4 connectors
- 3 DC switches (1000V, 50A) with lockable handle and arc extinguishing chamber
- 6 DC surge protection devices (SPD, 1000V, 40kA)
- IP66 waterproof, UV-resistant enclosure with flame retardant rating V0
- Enclosure dimensions: 528 x 458 x 358 mm
| Configuration | 6 inputs / 6 outputs |
|---|---|
| Rated Voltage | 1000V DC |
| DC Switches | 3 pcs. (1000V, 50A) |
| Surge Protection Device (SPD) | 6 pcs. (1000V, 40kA) |
| Connectors | MC4 |
| Protection Rating | IP66 |
| Flame Retardant Rating | V0 |
| Dimensions | 528 x 458 x 358 mm |
| Standards | IEC60529, UL508i, IEC60947-3 Pv2 |
What is the primary function of this PV combiner box?
It is designed for surge protection and electrical isolating on the DC side of 6-string photovoltaic systems.
What protection components are installed inside the box?
It includes 3 lockable 1000V 50A DC switches and 6 DC 1000V 40kA surge protection devices (SPD).
