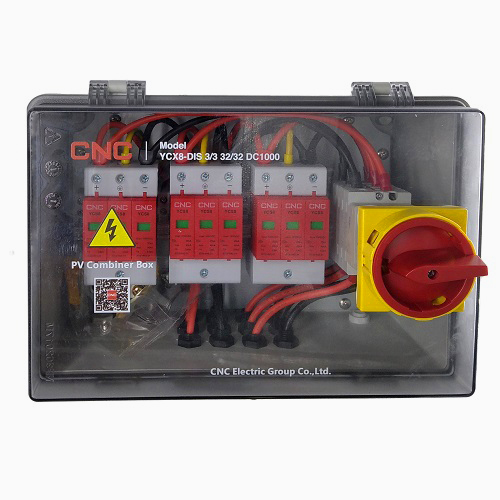

Solar PV Combiner Box DC 3 In 3 Out 1000V IP66
Price: 152.20 €
| Products ID: | 171162 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942367528756 |
Delivery options to:
Choose countryThe PV combiner box is designed for solar PV systems requiring 3 string inputs and 3 string outputs, providing surge protection and DC-side circuit isolation.
Key Features
- Designed for 3 string in and 3 string out 1000V DC solar systems
- Includes 1x 1000V 50A DC switch with a lockable handle
- Equipped with 3x 1000V 40kA DC surge protection devices (SPD)
- IP66 waterproof enclosure with V0 flame retardancy and UV resistance
- Fitted with MC4 connectors for straightforward connection
| Input / Output | 3 string in / 3 string out |
|---|---|
| Voltage Rating | 1000V DC |
| DC Switch | 1000V, 50A (1 pc.) |
| DC Surge Protection (SPD) | 1000V, 40kA (3 pcs.) |
| Ingress Protection | IP66 |
| Flame Retardant Rating | V0 |
| Connector Type | MC4 |
| Dimensions | 312x262x162 mm |
| Standards | IEC60529, UL508i, IEC60947-3 Pv2 |
What is the voltage rating of this PV combiner box?
The combiner box and its integrated components are rated for 1000V DC solar systems.
What type of connectors are used on the enclosure?
The box is equipped with standard MC4 connectors for DC input and output connections.
