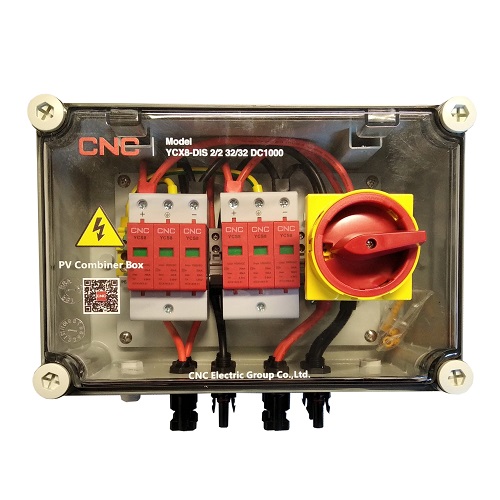

PV Combiner Box DC 2 In 2 Out 1000V IP66
Price: 147.80 €
| Products ID: | 171161 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942367528749 |
Delivery options to:
Choose countryThis DC string combiner box is designed for 2 string in and 2 string out solar photovoltaic systems, providing reliable isolation and surge protection on the solar DC side.
Key Features
- Supports 2 input and 2 output connections for 1000V DC PV systems
- Equipped with a 1000V 50A DC switch featuring an arc extinguishing chamber and lockable handle
- Includes two 1000V 40kA DC surge protection devices (SPD)
- IP66 waterproof, UV resistant, and V0 flame retardant enclosure
- Fitted with MC4 connectors for straightforward connection
| Configuration | 2 string in - 2 string out |
|---|---|
| Rated Voltage | 1000V DC |
| Ingress Protection | IP66 |
| Enclosure Dimensions | 280 x 190 x 130 mm |
| DC Switch | 1000V, 50A (1 pc.) |
| Surge Protective Device (SPD) | 1000V, 40kA (2 pcs.) |
| Connectors | MC4 |
| Flame Retardant Rating | V0 |
| Standards | IEC529, EN60529, UL508i, IEC60947-3 Pv2, CE, RoHS |
What system configuration is this combiner box designed for?
It is designed for solar PV systems with 2 strings in and 2 strings out operating up to 1000V DC.
What protection components are installed inside the box?
The unit includes one 1000V 50A DC isolator switch and two 1000V 40kA DC surge protection devices (SPDs).
