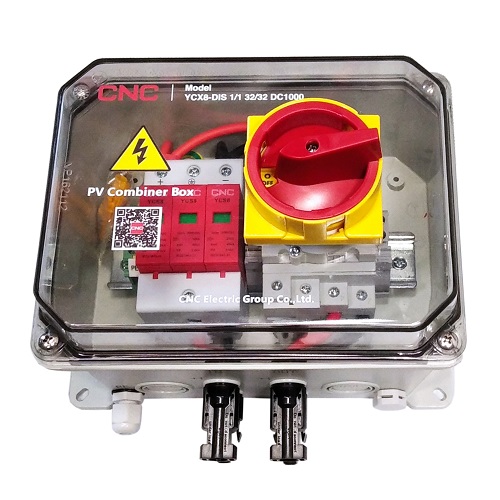

PV Combiner Box DC 1 In 1 Out 1000V IP66
Price: 76.00 €
| Products ID: | 171160 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942367528732 |
Delivery options to:
Choose countryThe DC string combiner box is designed for 1 string in - 1 string out photovoltaic systems, providing surge protection and isolation on the solar DC side.
Key Features
- Designed for 1 input and 1 output 1000V DC systems
- Equipped with a 1000V 50A DC switch with lockable handle
- Includes a 1000V 40kA DC surge protection device (SPD)
- IP66 waterproof enclosure with UV resistance and V0 flame retardant rating
- Equipped with MC4 connectors for input and output connections
| Inputs / Outputs | 1 input / 1 output |
|---|---|
| Rated Voltage | 1000V DC |
| DC Switch | 1000V, 50A (1 pc.) |
| Surge Protection Device (SPD) | 1000V, 40kA (1 pc.) |
| Connectors | MC4 |
| Ingress Protection | IP66 |
| Flame Retardant Rating | V0 |
| Dimensions | 215x165x154mm |
| Standards | EN60529, UL508i, IEC60947-3 Pv2 |
What system configuration is this combiner box suitable for?
It is designed for solar PV setups with a 1 string in and 1 string out configuration up to 1000V DC.
What protection components are included inside the box?
The box contains one 1000V 50A DC switch with a lockable handle and one 1000V 40kA DC surge protection device (SPD).
