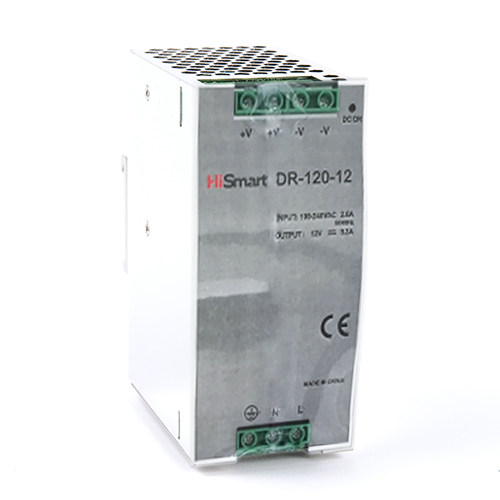

Power Supply 12V 8.3A DIN Rail
Price: 32.80 €
| Products ID: | 170112 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000700523 |
Delivery options to:
Choose countrySwitching power supply delivering 12V DC output, designed for standard DIN rail mounting.
Key Features
- Mountable on TS-35/7.5 or TS-35/15 DIN rails
- Protections: short circuit, overload, and over voltage
- Cooling by free air convection
- AC input range: 90–264V (47–63Hz)
- Adjustable DC output voltage range: -9% / +10%
| Type | Switching power supply |
|---|---|
| Input voltage (AC) | 90–264V (47–63Hz) |
| Output voltage (DC) | 12V |
| Rated current | 8.3A |
| Rated power | 99.6W |
| DC voltage adjustable range | -9% / +10% |
| AC current | 2.6A/115V, 1.6A/230V |
| Ripple and noise | 100mV p-p |
| Efficiency | 82% |
| Compatible DIN rail | TS-35/7.5, TS-35/15 |
Which DIN rails are compatible with this power supply?
It is compatible with standard DIN rails TS-35/7.5 and TS-35/15.
What built-in protections does the power supply offer?
It features protection against short circuit, overload, and over voltage.
