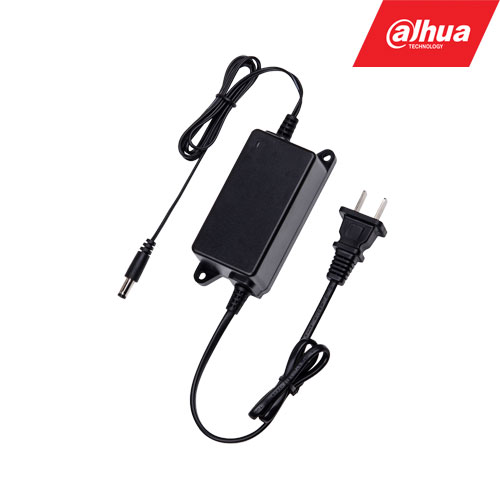

Power Supply 12V, 2A, 24W, with Plug
Price: 13.30 €
| Products ID: | 169479 |
|---|---|
| Manufactured by: | Dahua Technology Co., Ltd |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6939554931031 |
Delivery options to:
Choose countryPlug-in power supply providing 12V DC output and 2A current with 24W power capacity for reliable device operation.
Key Features
- Input: 100~240V, 50/60Hz, 0.5A
- Output: 12V, 2A, 24W
- Integrated protection: surge, over-temperature, over-current, and load voltage protection
- ESD protection: EN61000-4-2 (±4kV contact, ±8kV air)
- Operating temperature range: -30°C to +70°C
| Input | 100~240V, 50/60Hz, 0.5A |
|---|---|
| Output Voltage | 12V (+7%, -3%) |
| Output Current | 2A (± 2%) |
| Power | 24W |
| Protection | Surge protection, over temperature protection, over current, voltage load protection |
| ESD Protection | EN61000-4-2 ± 4kV Contact; ± 8kV Air |
| Surge Protection | EN61000-4-5 Common Mode ± 4kV (12 ohms), Differential Mode ± 2kV (2 ohms) |
| Working Temperature | -30°C ~ +70°C |
What are the input and output specifications of this power supply?
The power supply accepts 100~240V (50/60Hz, 0.5A) input and delivers 12V, 2A DC output with a total power of 24W.
What built-in protections are included?
It includes surge protection, over-temperature protection, over-current and voltage load protection, as well as ESD protection.
