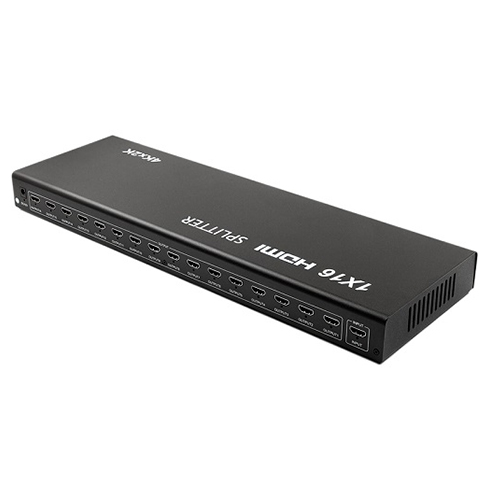

HDMI Splitter 1x16, 4K, 3D, HDMI 1.4b
Price: 103.40 €
| Products ID: | 170141 |
|---|---|
| Manufactured by: | Extra Digital |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000912513 |
Delivery options to:
Choose countryThis 1x16 HDMI splitter distributes a single HDMI input source to 16 HDMI-compatible displays, monitors, or projectors simultaneously.
Key Features
- Supports resolutions up to 4K (3840x2160) at 30Hz and 3D video format
- Compliant with HDMI 1.4b and HDCP 1.4 standards
- Can regenerate HDMI signals when placed at the end of a long HDMI cable
- Supports 8/10/12-bit color depth and transfer rates up to 3.2Gbps
- Compatible with sources like DVD players, AV receivers, and set-top boxes
| Input ports | 1x HDMI |
|---|---|
| Output ports | 16x HDMI |
| HDMI version | HDMI 1.4b, HDCP 1.4 |
| Max resolution | 3840 x 2160 / 30Hz |
| Supported resolutions | 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 |
| Color depth | 8/10/12 bit |
| Max bandwidth | 320MHz |
| Max transfer rate | 3.2Gbps |
| Cable distance (1080p) | Input up to 15m, output up to 25m (AWG26) |
| Cable distance (4K) | Input up to 12m, output up to 15m (AWG26) |
| Power supply | AC 100V-240V (50/60Hz); DC 12V / 3A |
| Operating temperature | -15°C ~ +55°C |
| Operating humidity | 5-90% RH |
| Dimensions | 460 x 150 x 40 mm |
| Weight | 1620g |
How many displays can be connected to this splitter?
This device allows a single HDMI source to be mirrored across up to 16 HDMI monitors, TVs, or projectors.
What is the maximum supported resolution?
It supports resolutions up to 4K (3840x2160) at 30Hz, as well as 3D video formats.
What cable lengths are supported?
Using standard AWG26 HDMI cables, it supports up to 15m input and 25m output in 1080p, and up to 12m input and 15m output in 4K resolution.
