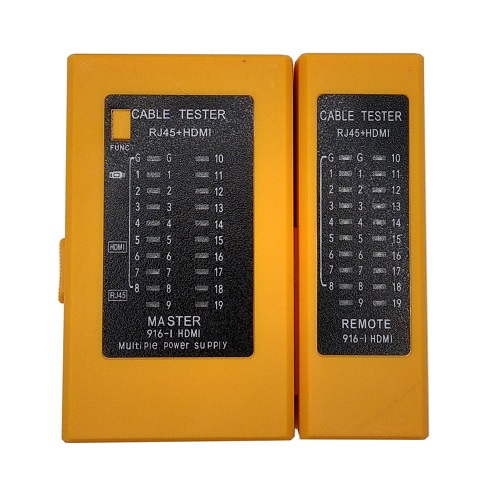

HDMI Cable Tester NF622 for Type A and Type C Cables
Price: 32.80 €
| Products ID: | 171029 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000912285 |
Delivery options to:
Choose countryThe NF622 HDMI cable tester is designed to verify continuity, pin configuration, shorts, open circuits, and shielding on HDMI cables with Type A and Mini HDMI Type C connectors.
Key Features
- Verifies Type A and Type C connectors across A-A, A-C, C-A, and C-C configurations.
- Checks 19-pin wiremap, shield connection, opens, shorts, and cross status.
- Selectable test modes: fast scan, slow scan, and step-by-step manual test.
- Supports cable test distance under 50 meters.
- LED status indicators and beeper audio confirmation.
| Model | NF622 |
|---|---|
| Supported Connectors | HDMI Type A, Mini HDMI Type C |
| Supported HDMI Versions | 1.0, 1.1, 1.2, 1.2a, 1.3, 1.3a, 1.3b, 1.3c, 1.4, 1.4a (Category 1 & Category 2) |
| Master Unit Interface | HDMI (Type A) x 2, Mini HDMI (Type C) x 1 |
| Remote Unit Interface | HDMI (Type A) x 2, Mini HDMI (Type C) x 1 |
| Test Distance | Under 50 m |
| Test Modes | Fast scan, slow scan, step by step |
| Display & Indicators | 19 pin LEDs, shield LED, beeper |
| Low Battery Indication | 6.0V |
| Power Source | 1x DC 9V (NEAD 1604/6F22, not included) |
| Storage Temperature | -10°C to 55°C |
Which HDMI connector types are supported?
The tester supports HDMI Type A and Mini HDMI Type C connectors in A-A, A-C, C-A, and C-C configurations.
What power source does the tester require?
The unit is powered by one 9V DC battery (NEAD 1604/6F22), which is not included.
What is the maximum cable length that can be tested?
The tester supports testing cables under 50 meters in length.
