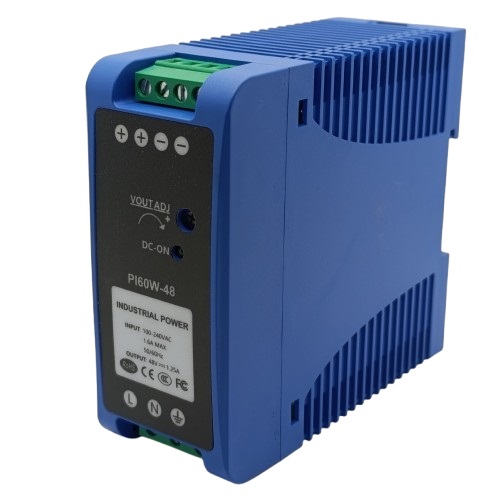

DIN Rail Power Supply 48V 1.25A 60W
Price: 32.10 €
| Products ID: | 170110 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000700547 |
Delivery options to:
Choose countrySlim industrial power supply designed for DIN rail mounting, delivering 48V DC output at up to 1.25A and 60W.
Key Features
- Mountable on TS-35/7.5 and TS-35/15 DIN rails
- Protections against short circuit, overload, and over voltage
- Cooling by free air convection
- Operating temperature range from -40°C to 70°C
- Adjustable DC output voltage range of 47 to 56V
- Meets EN61000-3-2 EMC standard
| Input Voltage Range AC | 90-264V (47-63Hz) |
|---|---|
| Output Voltage DC | 48V |
| DC Voltage Adjustable Range | 47 ~ 56V |
| Rated Current | 1.25A |
| Rated Power | 60W |
| AC Current | 1.4A / 115V, 0.8A / 230V |
| Ripple and Noise | 100mV p-p |
| Efficiency | >89% |
| Mounting | DIN rail TS-35/7.5 or TS-35/15 |
| Operating Temperature | -40°C to 70°C |
Which DIN rails are supported for mounting?
This power supply can be installed on standard TS-35/7.5 or TS-35/15 DIN rails.
Is the DC output voltage adjustable?
Yes, the DC output voltage can be adjusted within the 47V to 56V range.
