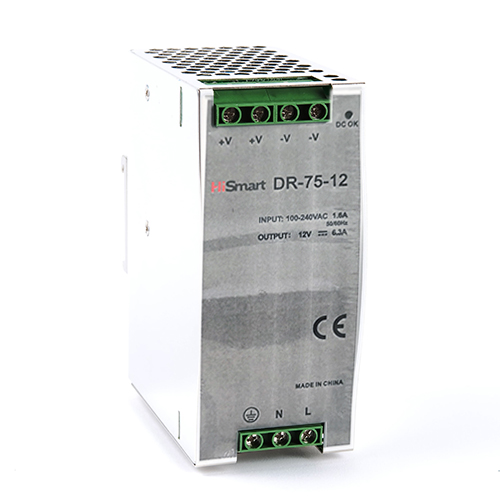

DIN Rail Power Supply 12V 6.3A 75W
Price: 30.50 €
| Products ID: | 170113 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000700516 |
Delivery options to:
Choose countrySwitching power supply with 12V DC output, designed for installation on standard DIN rails.
Features
- Mountable on DIN rail TS-35/7.5 or TS-35/15
- Cooling by free air convection
- Short circuit, overload, and over voltage protections
- Adjustable DC output voltage range of -9% / +10%
| Type | Switching power supply |
|---|---|
| AC input range | 90–264V |
| Frequency | 47–63Hz |
| DC output voltage | 12V |
| DC voltage adjustable range | -9% / +10% |
| Rated current | 6.3A |
| Rated power | 76W |
| AC current | 1.6A/115V, 0.96A/230V |
| Ripple and noise | 100mV p-p |
| Efficiency | 79% |
| Compatible DIN rail | TS-35/7.5, TS-35/15 |
| Protections | Short circuit, overload, over voltage |
Which DIN rails are compatible with this power supply?
It can be mounted on TS-35/7.5 and TS-35/15 DIN rails.
What is the AC input range?
The input voltage range is 90–264V AC with a frequency of 47–63Hz.
