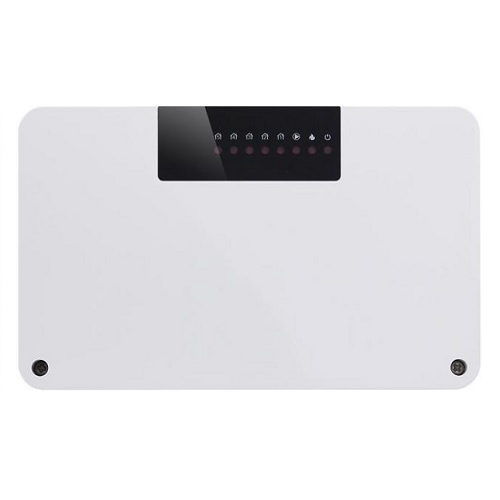

Central Controller for Heating Systems, 8 Loops, White
Price: 71.70 €
| Products ID: | 171234 |
|---|---|
| Manufactured by: | Tuya |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000260072 |
Delivery options to:

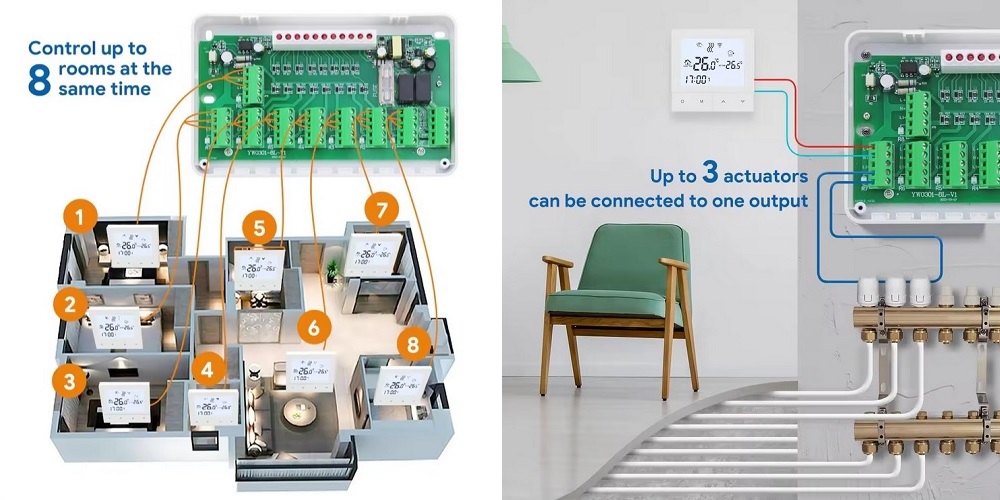

Choose countryCentral wiring hub controller designed for heating systems to automatically regulate room temperature across up to 8 separate zones.
Key Features

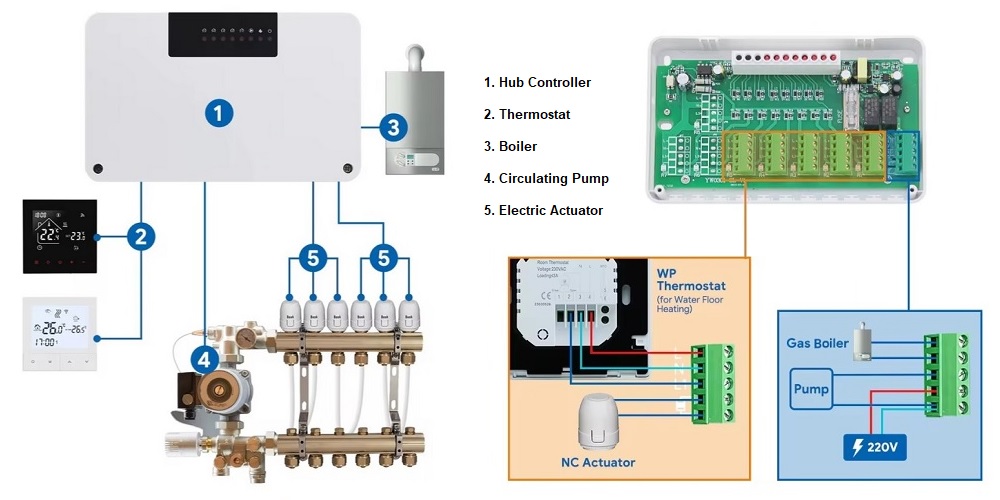

- Supports up to 8 loops with 1 room thermostat and up to 3 NC thermal actuators per channel
- Controls heating boiler and circulating pump based on thermostat demand
- Built-in 200-second time delay function to protect equipment

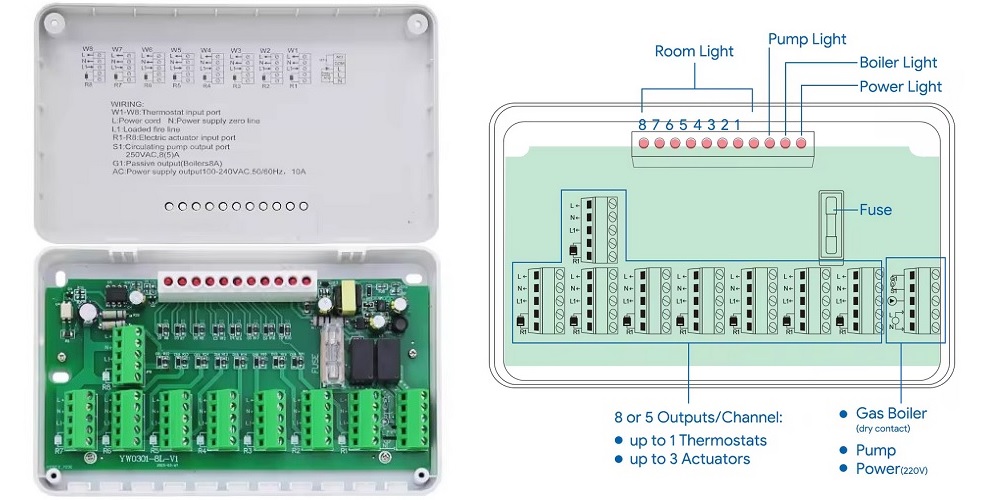

- LED status indicators for active heating zones and connected appliances
- Housing made of fire-retardant ABS+PC material
| Application | Heating system |
|---|---|
| Loops | 8 |
| Power supply | AC 100-240V, 50/60Hz, 10A |
| Output (heating boiler) | 8A |
| Output (pump) | AC 250V, 8(5)A |
| Suitable thermal drive | NC (normally closed) |
| Max. thermal actuators per loop | 3 |
| Delay time | 200 s |
| Housing material | Fire retardant ABS+PC |
| Operating temperature | -20°C ~ +50°C |
| Dimensions | 177x110x35 mm |
| Colour | White |
| Warranty | 24 months |
What type of thermal actuators are compatible with this controller?
This controller is compatible only with NC (normally closed) thermal actuators.
How many actuators can be connected to each loop?
Each loop supports one room thermostat and up to 3 thermal actuators.
Can this unit control auxiliary heating equipment?
Yes, it can switch the heating boiler and circulating pump on and off based on zone demand.
