ANCEL L8000 Diagnostic Leak Detector for Automotive Systems

Q: What vehicle systems can be tested with the ANCEL L8000?

It can be used to test intake and exhaust systems, vacuum lines, turbochargers, hoses, gaskets, and EVAP systems.

Q: What is included in the package?

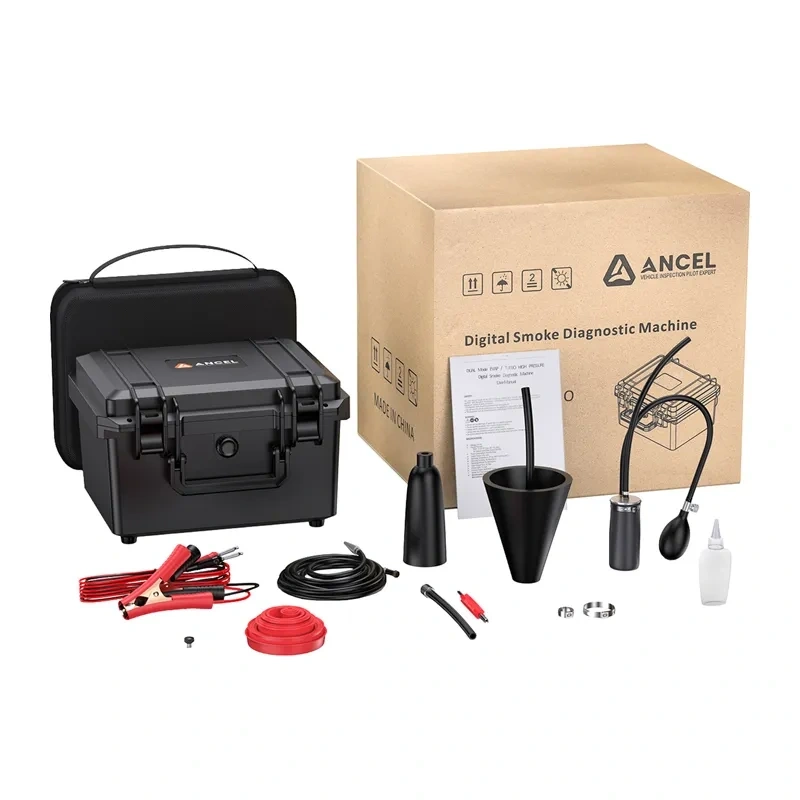

The kit includes the leak detector, a full set of plugs, an exhaust cone, a Schrader valve tool, an EVAP service port adapter hose, 150 ml smoke fluid, an intake bladder, a smoke hose, a power cord, and seals.

Q: What are the pressure limits for the EVAP and Turbo modes?

The EVAP mode operates at 0.44–0.5 psi, while the built-in high-pressure pump reaches up to 20 psi (138 kPa).

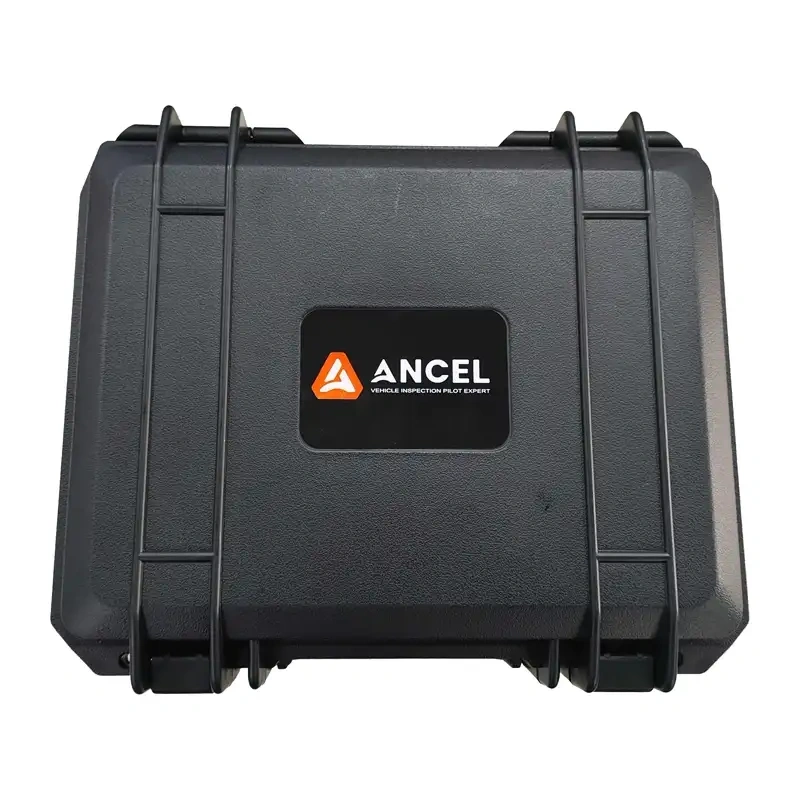

ANCEL L8000 Diagnostic Leak Detector for Automotive Systems — primary image

ANCEL L8000 Diagnostic Leak Detector for Automotive Systems — image 2

Price: 288.40 €

Products ID:	174053
Manufactured by:	Ancel
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6978281190601

Delivery options to:

Choose country

ANCEL L8000 Diagnostic Leak Detector for Automotive Systems

The ANCEL L8000 is an automotive leak detector featuring low-pressure EVAP and high-pressure Turbo modes, designed for smoke tests and pressure drop diagnostics across various vehicle systems.

Key Features

Supports smoke testing and pressure drop testing for intake, exhaust, vacuum, and EVAP systems
Built-in pump delivering up to 20 psi with a smoke output rate of 6–8 l/min
Control panel with a 4-inch color LCD screen, customizable parameters, and airtightness self-test
Complete package including adapters, plug kit, exhaust cone, smoke hose, and 150 ml smoke fluid

Manufacturer	ANCEL
Model	L8000
Device type	Automotive system leak detector
Display	4-inch screen
Power supply	12 V DC
Current in Smoke mode	< 6.5 A
Smoke output	6–8 l/min
Output pressure	EVAP: 0.44–0.5 psi; built-in HP pump: max. 20 psi (138 kPa)
Flow rate	< 8 l/min
Power cord length	Approx. 2.5 m
Smoke hose length	Approx. 2.5 m
Supported functions	Smoke test, pressure drop test, device self-diagnostics
Air source	Built-in pump
Dimensions	280 x 250 x 260 mm
Weight	4.75 kg
Operating temperature	-17°C to 60°C

What vehicle systems can be tested with the ANCEL L8000?

It can be used to test intake and exhaust systems, vacuum lines, turbochargers, hoses, gaskets, and EVAP systems.

What is included in the package?

The kit includes the leak detector, a full set of plugs, an exhaust cone, a Schrader valve tool, an EVAP service port adapter hose, 150 ml smoke fluid, an intake bladder, a smoke hose, a power cord, and seals.

What are the pressure limits for the EVAP and Turbo modes?

The EVAP mode operates at 0.44–0.5 psi, while the built-in high-pressure pump reaches up to 20 psi (138 kPa).
