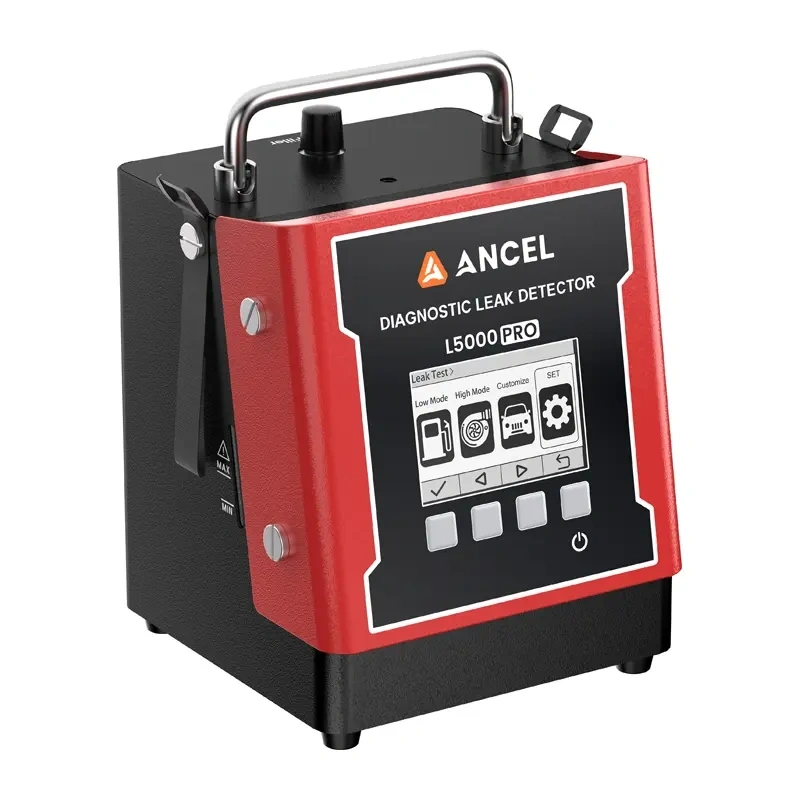

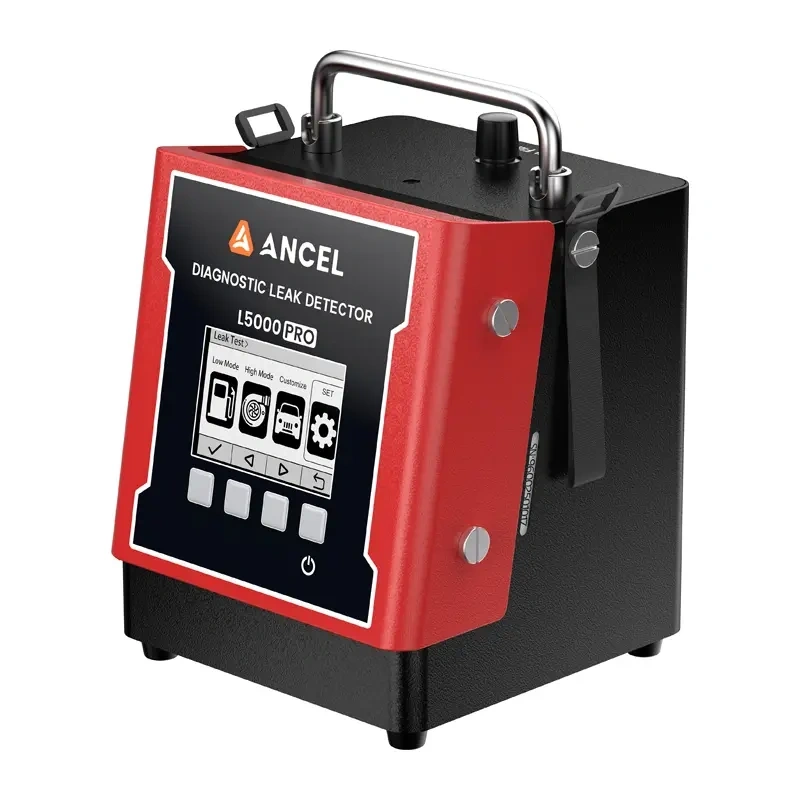

ANCEL L5000 PRO Automotive Diagnostic Smoke Leak Detector
Price: 300.40 €
| Products ID: | 173888 |
|---|---|
| Manufactured by: | Ancel |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6978281190588 |
Delivery options to:
Choose country
The ANCEL L5000 PRO is a diagnostic leak detector designed to test automotive systems using air and smoke. Operating in low pressure (0.5 psi), high pressure (20 psi), and adjustable linear modes (0.5 to 20 psi), it enables precise testing across EVAP, intake, exhaust, intercooler, and oil systems.
Key Features
- Performs air leak, smoke leak, pressure decay, and vacuum leak testing
- Integrated air pump providing airflow of less than 8 l/min
- 3.5-inch LCD screen with 4 function control buttons
- Integrated self-test function for device self-diagnostics
- 12 V DC car battery power supply

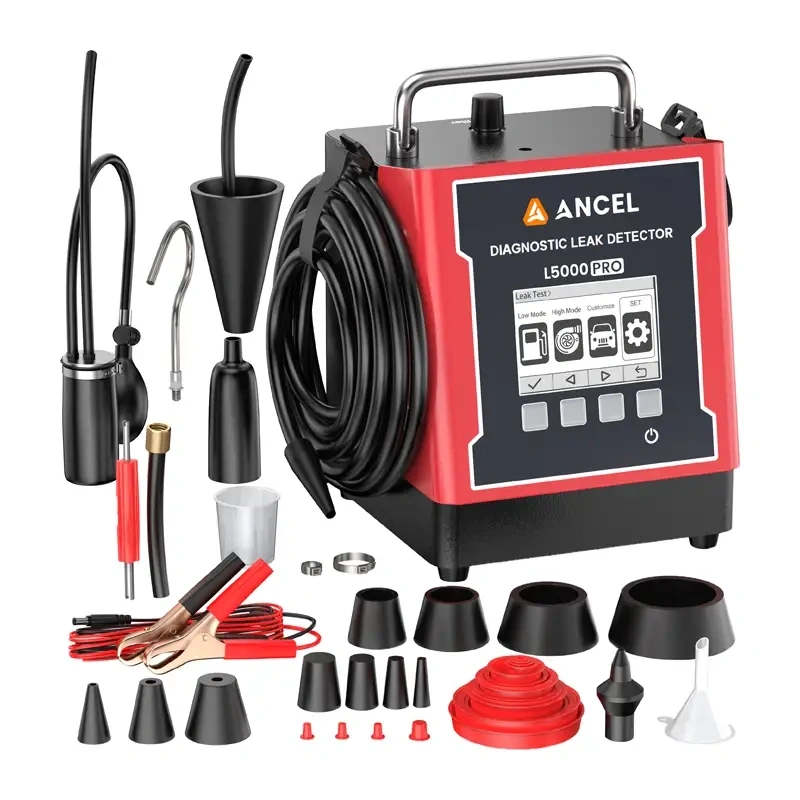

- Includes 2.5 m power cord, 2.5 m smoke hose, and various adapter cones
| Manufacturer | ANCEL |
|---|---|
| Model | L5000 PRO |
| Device type | Diagnostic leak detector for automotive systems |
| Display | 3.5-inch screen |
| Power supply | 12 V DC (car battery), < 8 A |
| Output pressure | 0.5 psi / 20 psi / adjustable 0.5–20 psi |
| Flow rate | < 8 l/min |
| Pressure resolution | 0.001 of the selected unit |
| Flow rate resolution | 0.01 l/min |
| Air source | Built-in pump |
| Power cord length | 2.5 m |
| Smoke hose length | 2.5 m |
| Dimensions | 164 x 168 x 245 mm |
| Weight | 2.4 kg |
What is the power source for the ANCEL L5000 PRO?
The device is powered by a 12 V DC vehicle battery with a current draw of less than 8 A.
Does the detector require an external air supply?
No, the device has a built-in pump as its air source.
What pressure range does the ANCEL L5000 PRO support?
It supports a low-pressure mode of 0.5 psi, a high-pressure mode of 20 psi, and an adjustable range from 0.5 to 20 psi.
