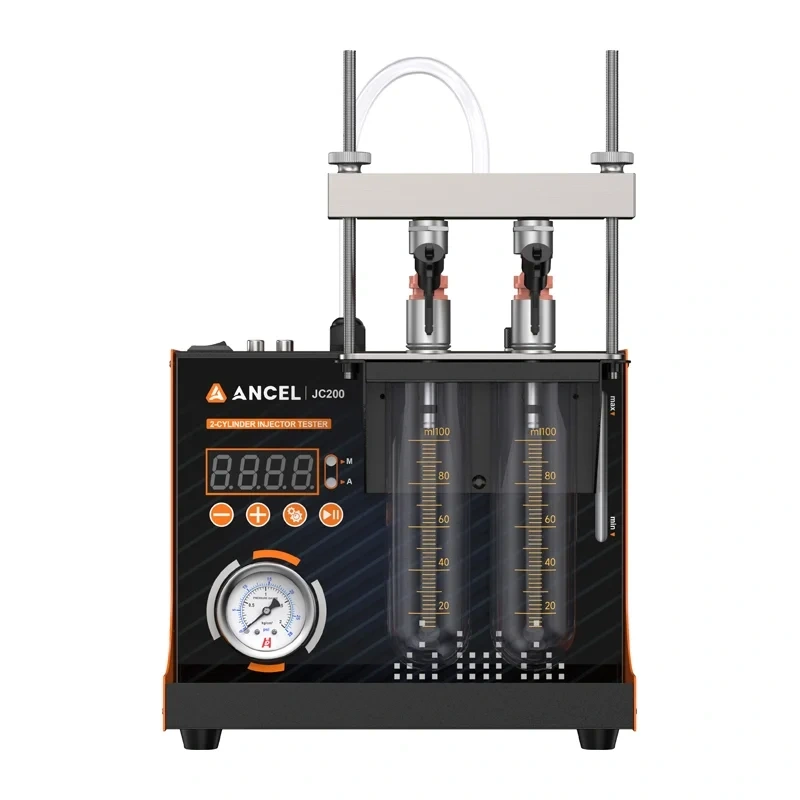

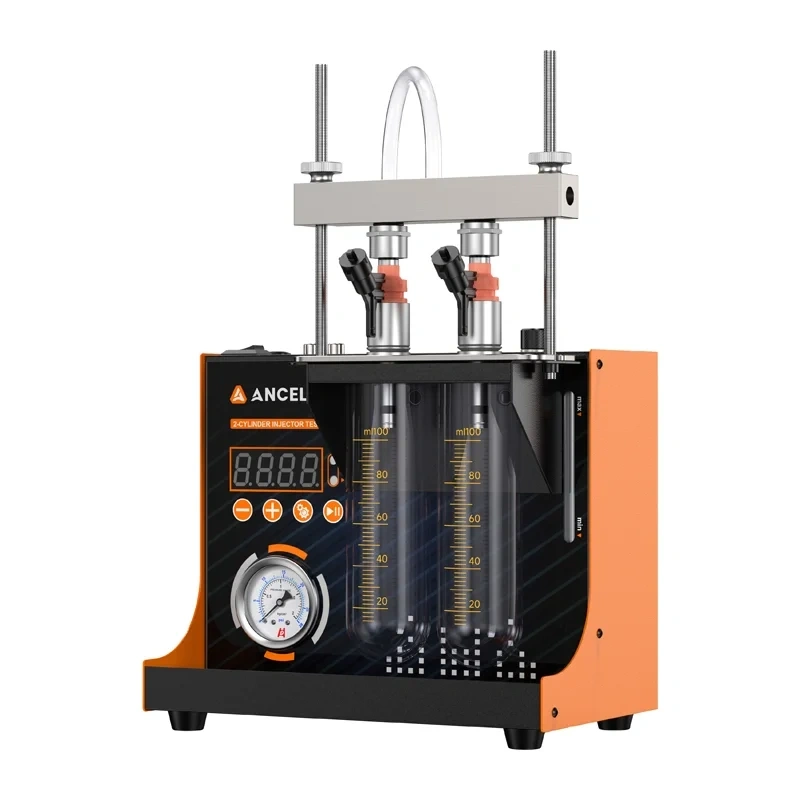

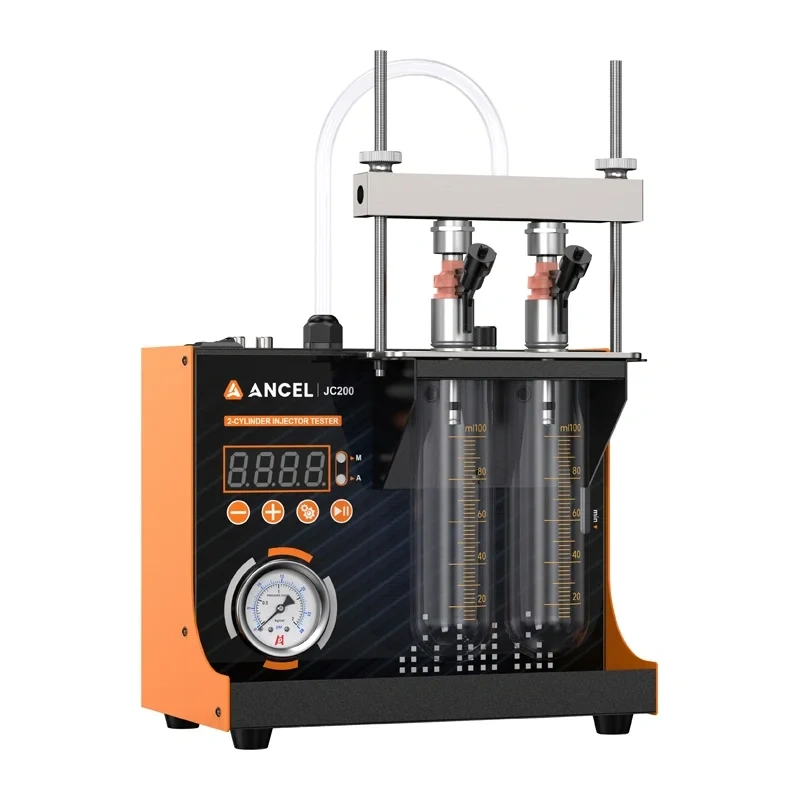

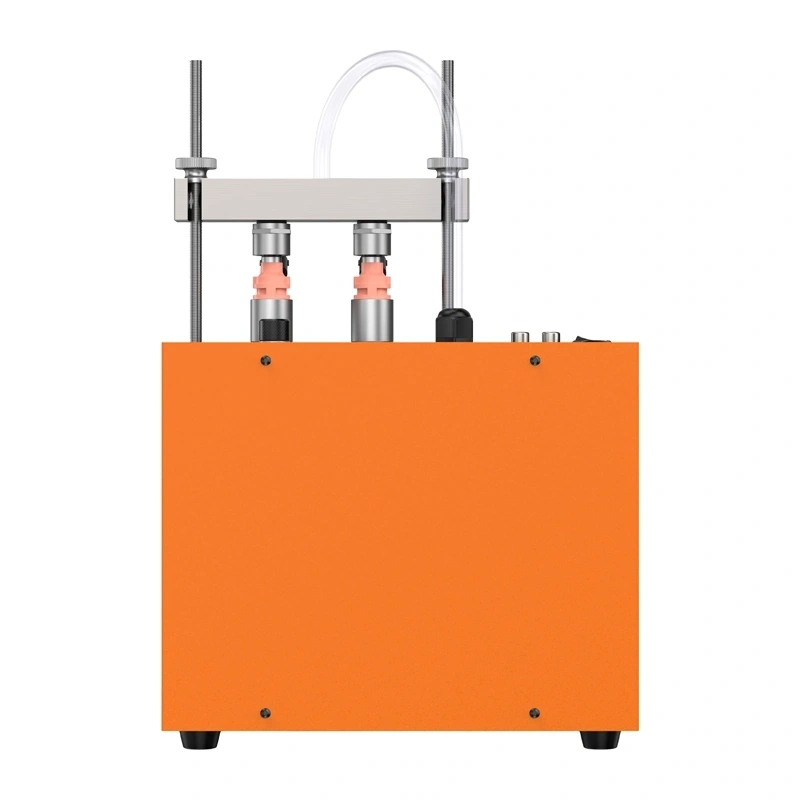

ANCEL JC200 Motorcycle Fuel Injector Cleaner and Tester
Price: 105.50 €
| Products ID: | 174041 |
|---|---|
| Manufactured by: | Ancel |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6978281190557 |
Delivery options to:
Choose country
The ANCEL JC200 is a compact device engineered for diagnosing and cleaning motorcycle fuel injectors. It is compatible with 6V and 12V Top-Feed MPI injectors and operates using a 12V DC battery power source.
Key Features
- Injection uniformity test and backlit atomization observation
- Leak testing under pressure and injection volume verification
- Stable working pressure maintained at 1.2–1.5 bar
- Speed simulation range from 100 to 9,900 rpm
- Digital display and visible test fluid level indicator
| Manufacturer | ANCEL |
|---|---|
| Model | JC200 |
| Device Type | Motorcycle fuel injector diagnostic and testing device |
| Operating Voltage | DC 12 V |
| Power Supply | 12 V DC car battery, 2 A |
| Tank Capacity | 150 ml |
| Cylinder Capacity | 100 ml |
| Rotational Speed | 100–9,900 rpm (increment: 100 rpm) |
| Time Range | 30–600 s |
| Operating Pressure | 1.2–1.5 bar (constant) |
| Pressure Relief | Manual |
| Display | Digital screen |
| Supported Injectors | Motorcycle / 6 V and 12 V Top-Feed MPI |
| Operating Temperature | -5°C to 50°C |
Which injectors are supported by the ANCEL JC200?
The ANCEL JC200 supports motorcycle 6V and 12V Top-Feed MPI fuel injectors.
How is the device powered?
It is powered by a standard 12 V DC car battery (2 A).
What diagnostic tests can this device perform?
It performs fuel injection volume tests, injection uniformity tests, atomization observations, and leak tests in manual and automatic modes.
