ANCEL DS600 ELITE OBD2 Diagnostic Scanner
Price: 597.40 €
| Products ID: | 174055 |
|---|---|
| Manufactured by: | Ancel |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6978281190540 |
Delivery options to:

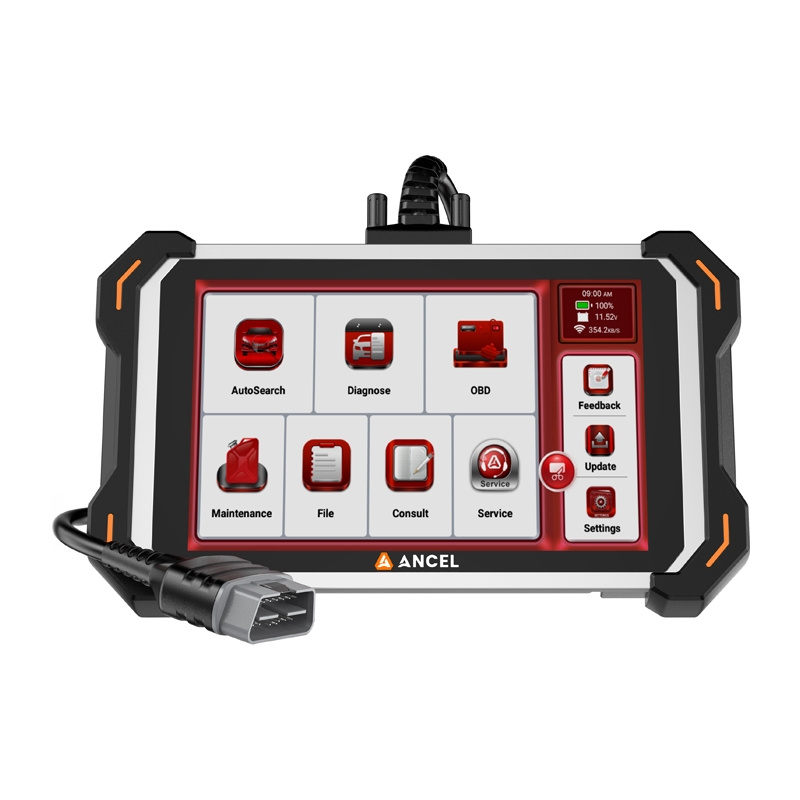

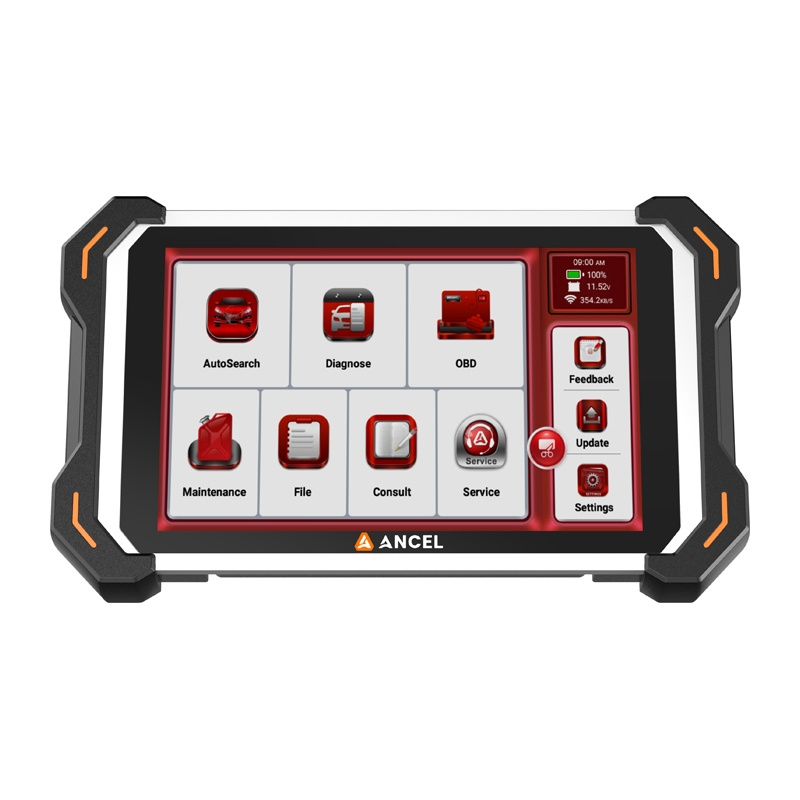

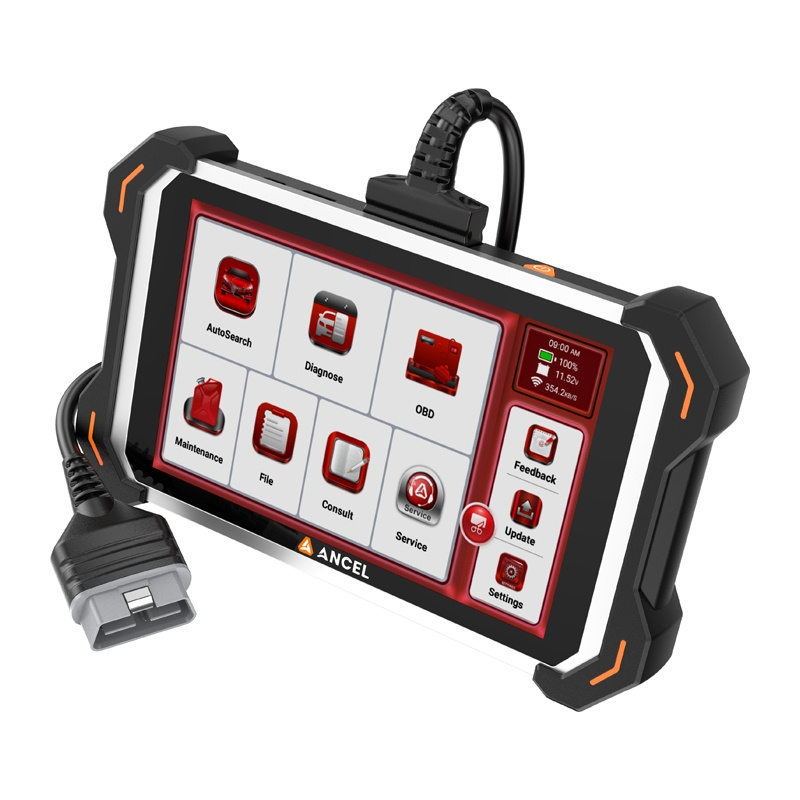

Choose countryThe ANCEL DS600 ELITE is an OBD2 diagnostic scanner featuring an 8-inch touchscreen and Android 10.0 OS, built for full vehicle system diagnostics, reading and clearing DTCs, and real-time live data monitoring.
Key Features and Capabilities
- AutoSearch Identification: Automatically reads the vehicle VIN to identify make, model, and year.
- Complete System Diagnostics: Supports actuator testing, coding, reset functions, and live parameter streams.
- Broad Protocol Support: Compatible with CAN-FD, DOIP, ISO 15765-4 CAN, ISO 14230-4 KWP, SAE J1850, and ISO 9141-2.
- Fast Data Processing: Equipped with 4 GB RAM and 64 GB ROM for smooth operation.
- High-Capacity Battery: 4150 mAh built-in rechargeable battery for extended diagnostic sessions.
| Manufacturer | ANCEL |
|---|---|
| Model | DS600 ELITE |
| Device Type | OBD2 diagnostic scanner |
| Screen | 8-inch color touchscreen, 1280x800 px |
| Operating System | Android 10.0 |
| RAM | 4 GB |
| ROM | 64 GB |
| Battery Capacity | 4150 mAh |
| Connection Type | Wired OBD connection |
| Wireless Connectivity | Bluetooth 5.0, Wi-Fi 2.4 GHz / 5.0 GHz |
| USB-C Input | 5 V DC / 2.5 A |
| OBD Input | 9–18 V DC / 1.2 A |
| Supported Languages | 28 |
| Diagnostics | Full system diagnostics |
| Supported Protocols | SAE J1850 PWM, SAE J1850 VPW, ISO 9141-2, ISO 14230-4 KWP, ISO 15765-4 CAN, CAN-FD, DOIP |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
How does the ANCEL DS600 ELITE connect to the vehicle?
It communicates with the vehicle via a stable wired OBD connection.
Does this scanner support modern protocols like CAN-FD and DOIP?
Yes, it supports CAN-FD and DOIP, along with SAE J1850 PWM/VPW, ISO 9141-2, ISO 14230-4 KWP, and ISO 15765-4 CAN.
What is the screen size and resolution of the device?
The scanner features an 8-inch color touchscreen with a resolution of 1280x800 px.
