ANCEL DS600 BT Professional OBD2 Diagnostic Scanner
Price: 601.80 €
| Products ID: | 174054 |
|---|---|
| Manufactured by: | Ancel |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6978281190434 |
Delivery options to:

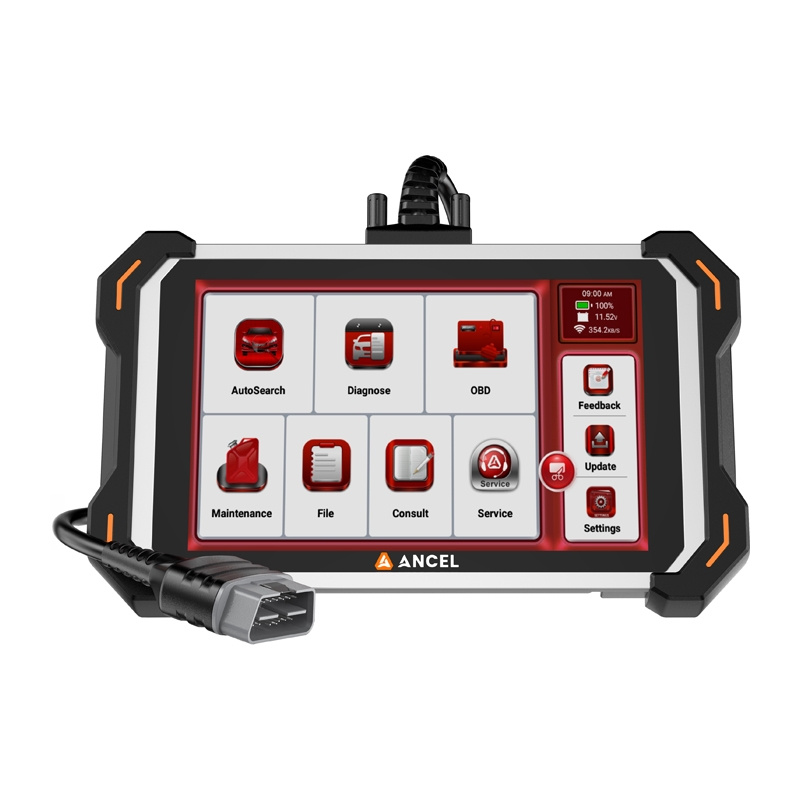

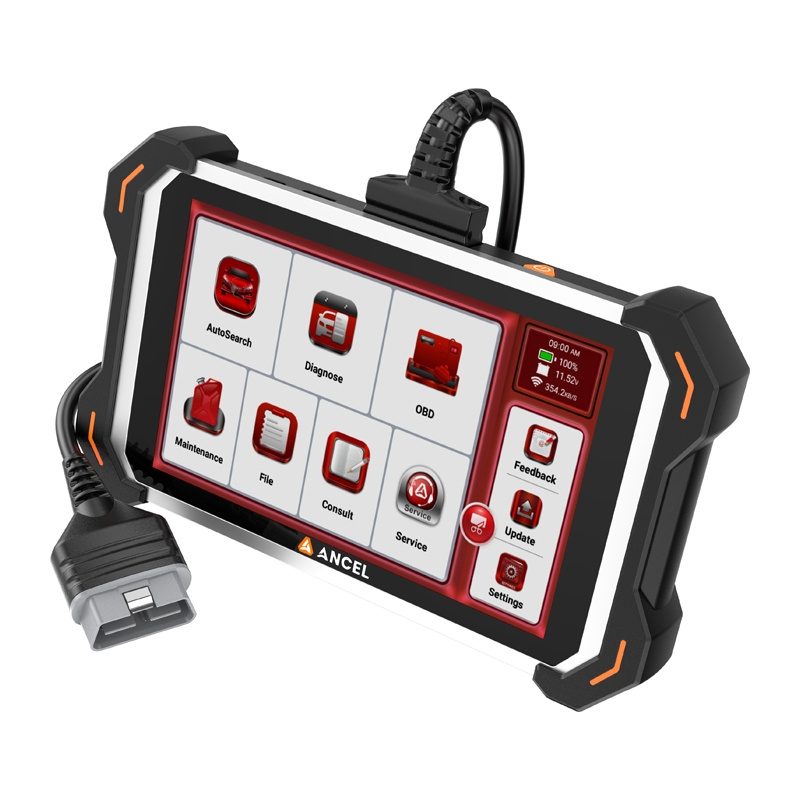

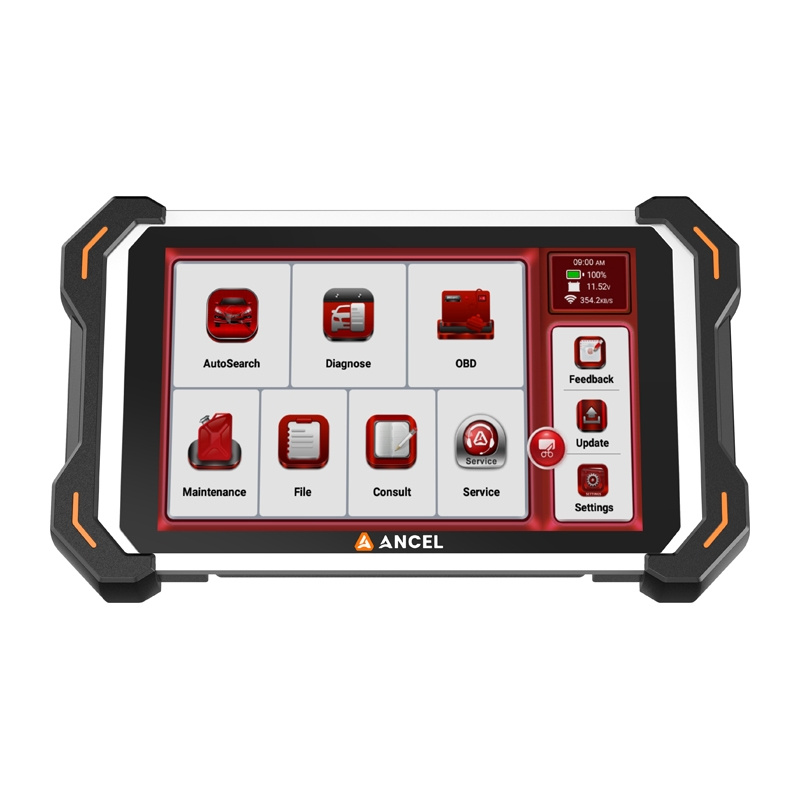

Choose countryThe ANCEL DS600 BT is a professional OBD2 diagnostic scanner featuring an 8-inch color touchscreen, Android 10.0, and a wireless Bluetooth VCI module for comprehensive vehicle system diagnostics.
Key Features
- 8-inch color touchscreen with 1280x800 px resolution
- 4 GB RAM and 64 GB ROM hardware configuration
- Wireless Bluetooth VCI connection with Bluetooth 5.0 and dual-band Wi-Fi (2.4 GHz / 5.0 GHz)
- AutoSearch for automatic vehicle identification and VIN reading
- Real-time parameter monitoring, DTC reading, and clearing
- Rechargeable 4150 mAh battery
- Wide protocol support including CAN-FD, DOIP, ISO, and SAE standards
| Manufacturer | ANCEL |
|---|---|
| Model | DS600 BT |
| Device Type | OBD2 diagnostic scanner |
| Screen | 8-inch color touchscreen, 1280x800 px |
| Operating System | Android 10.0 |
| RAM | 4 GB |
| ROM | 64 GB |
| Battery Capacity | 4150 mAh |
| Bluetooth | 5.0 |
| Wi-Fi | 2.4 GHz / 5.0 GHz |
| USB-C Input | 5 V DC / 2.5 A |
| OBD Input | 9–18 V DC / 1.2 A |
| Connection Method | Bluetooth VCI |
| Number of Supported Languages | 28 |
| Diagnostics | Full system diagnostics |
| Supported Protocols | SAE J1850 PWM, SAE J1850 VPW, ISO 9141-2, ISO 14230-4 KWP, ISO 15765-4 CAN, CAN-FD, DOIP |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
How does the ANCEL DS600 BT connect to a vehicle?
The scanner connects wirelessly to the vehicle using the included Bluetooth VCI adapter.
Which diagnostic protocols are supported?
It supports SAE J1850 PWM, SAE J1850 VPW, ISO 9141-2, ISO 14230-4 KWP, ISO 15765-4 CAN, CAN-FD, and DOIP.
What is the battery capacity of the scanner?
The device is equipped with a 4150 mAh rechargeable battery.
