ANCEL ANJ400 Car Fuel Injector Cleaner and Tester
Price: 385.80 €
| Products ID: | 174056 |
|---|---|
| Manufactured by: | Ancel |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6978281190175 |
Delivery options to:
Choose country

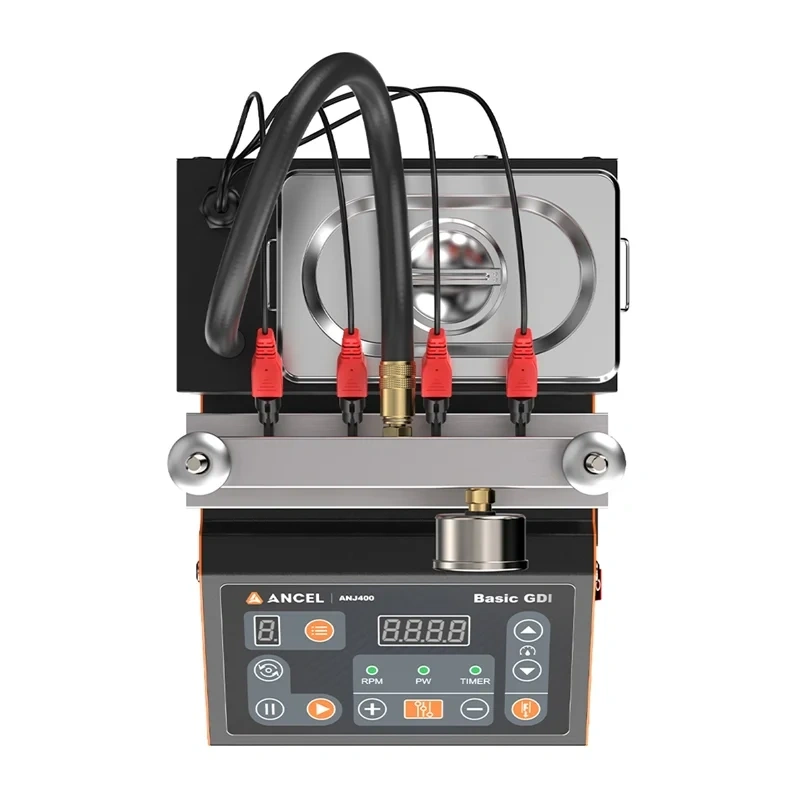

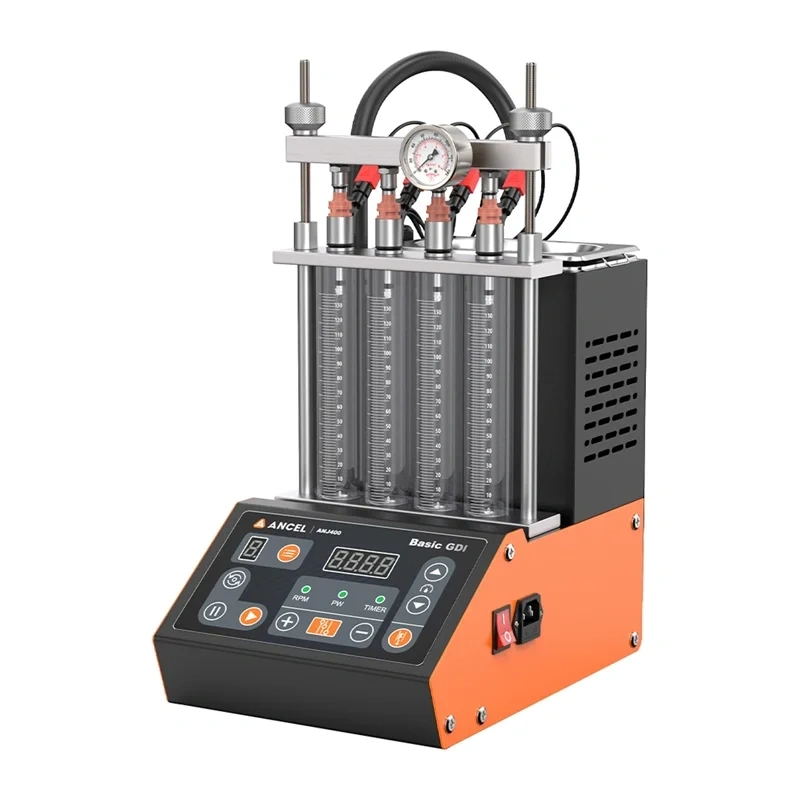

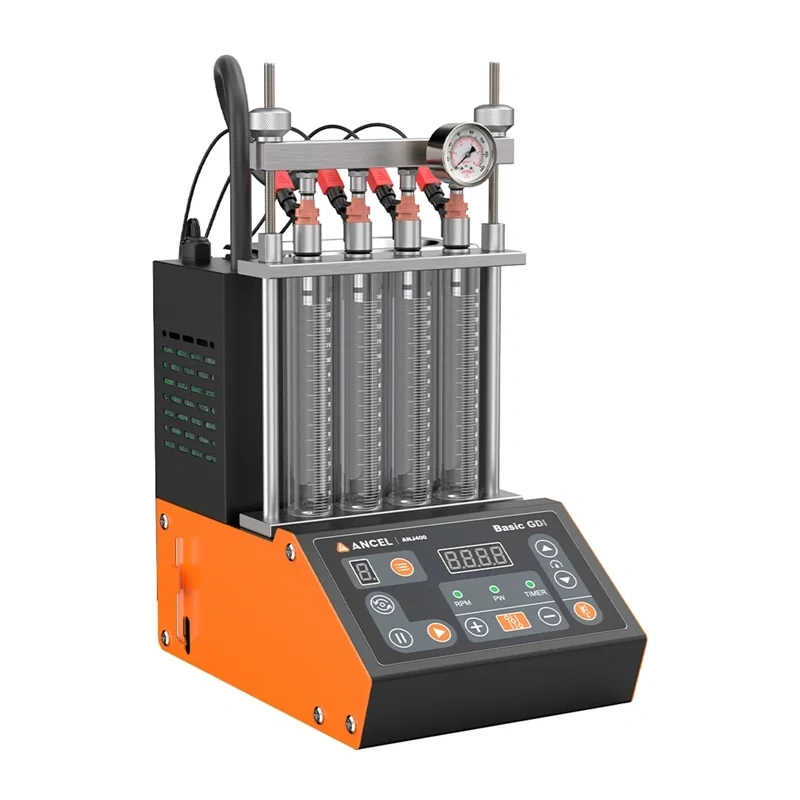

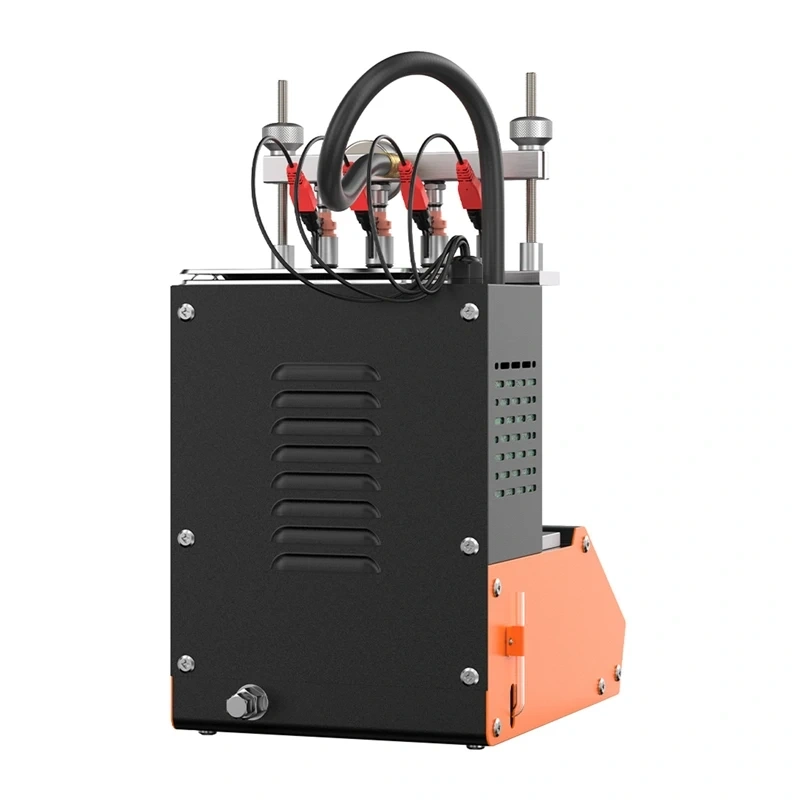

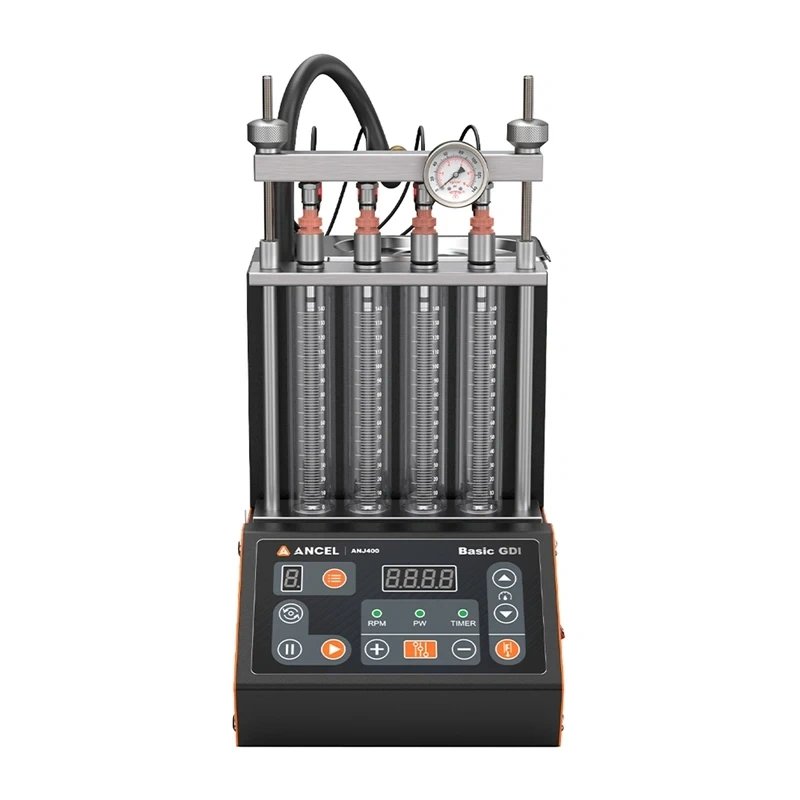

The ANCEL ANJ400 is a professional automotive fuel injector cleaning and testing machine that combines ultrasonic cleaning technology with microcomputer-controlled pressure regulation.
Key Features and Capabilities
- Integrated 100 W ultrasonic cleaning bath (38–39 kHz) for thorough deposit removal
- Adjustable operating pressure from 0 to 8 bar with a 2,400 ml fuel tank
- Spray pattern, injection flow, leakage tests, and backflushing function
- Engine condition simulation with a range from 100 to 9,900 rpm
- Broad compatibility with electromagnetic injectors (GDI, EFI, MPI, SFI) and low-resistance injectors (1 Ω)
| Manufacturer | ANCEL |
|---|---|
| Model | ANJ400 |
| Device Type | Injector cleaning and testing device |
| Input Power | 230 W |
| Ultrasonic Cleaner Power | 100 W (38–39 kHz) |
| Operating Pressure | 0–8 bar (adjustable) |
| Fuel Tank Capacity | 2,400 ml |
| Simulated RPM Range | 100–9,900 rpm (increment: 10 rpm) |
| Time Range | 5–300 s (increment: 5 s) |
| Pulse Width | 0–30 ms |
| Resistance Test Accuracy | 0.1 Ω |
| Display | Digital screen |
| Supported Injectors | Electromagnetic injectors (EFI, GDI, MPI, SFI; does not support piezoelectric injectors) |
| Operating Temperature | -10°C to 40°C |
What types of fuel injectors are supported by the ANCEL ANJ400?
It supports electromagnetic gasoline injectors including GDI, EFI, MPI, and SFI types, as well as low-resistance injectors down to 1 Ω. Piezoelectric injectors are not supported.
What diagnostic tests can be performed with this machine?
The machine performs spray pattern/atomization tests, 15-second flow rate tests, leak tests under pressure, engine load simulations, and backflushing.
What is the tank capacity and operating pressure range?
The device features a 2,400 ml fuel tank and an adjustable operating pressure ranging from 0 to 8 bar.
