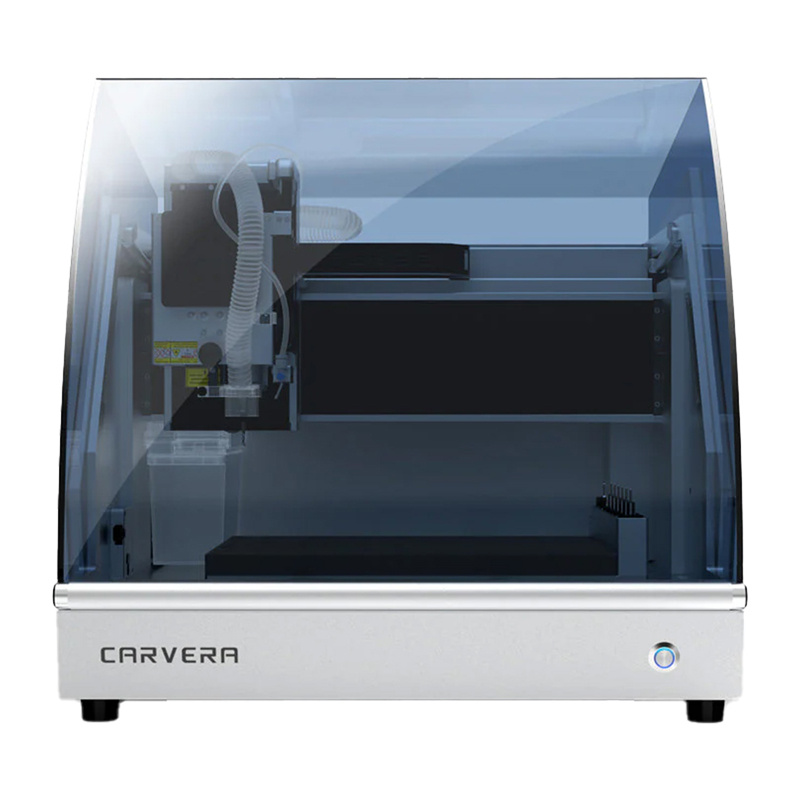

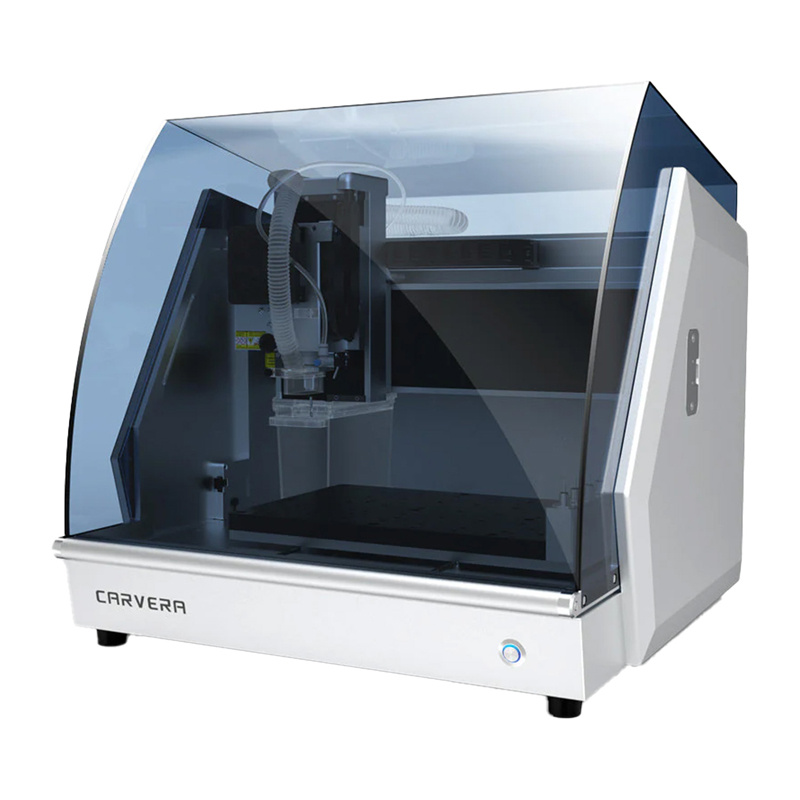

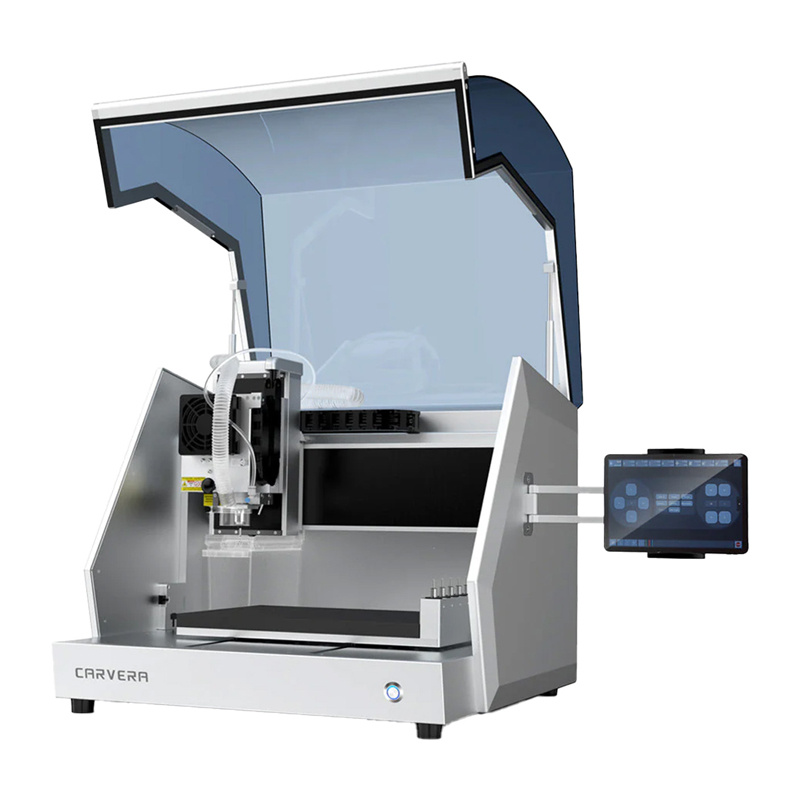

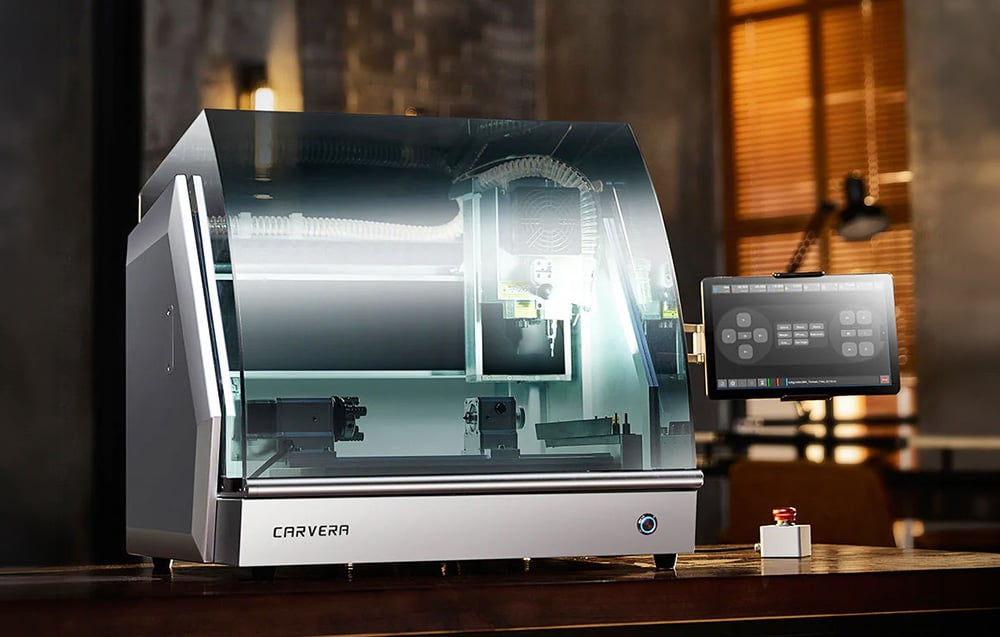

MAKERA Carvera CNC Router Machine with Laser Module
Price: 6736.90 €
| Products ID: | 177353 |
|---|---|
| Manufactured by: | MAKERA |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
Delivery options to:

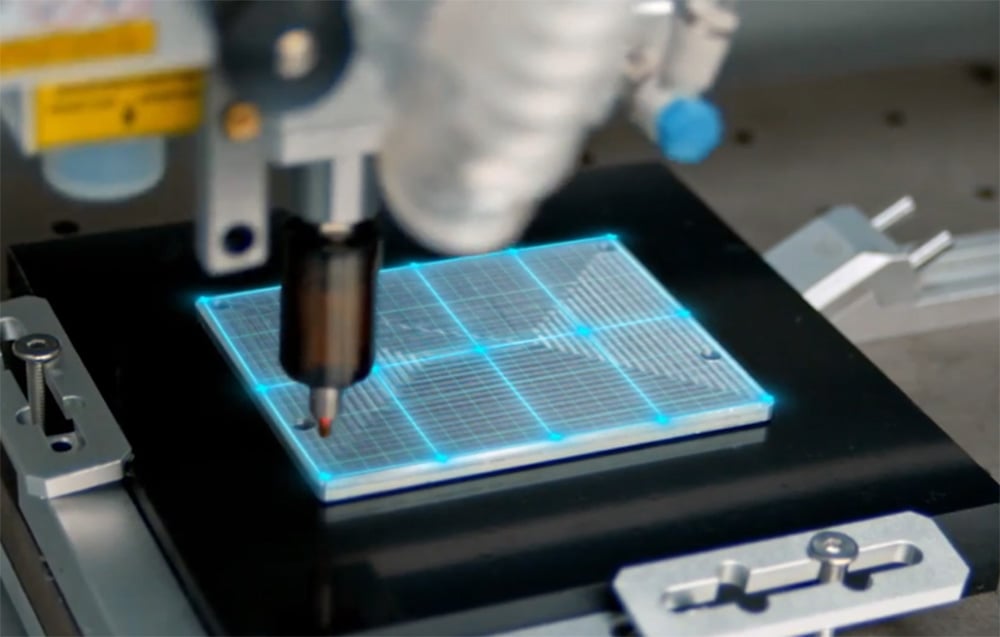

Choose countryThe MAKERA Carvera is an automated desktop CNC router featuring 0.01 mm precision and an integrated 2.5 W diode laser module, engineered for milling wood, plastics, aluminum, brass, copper, carbon fiber, and PCBs.
Key Features
- Automatic Tool Changer: integrated 6-tool magazine with automatic tool setting and auto-leveling.
- Built-in Dust Extraction: integrated 0.8 L vacuum system keeps the working area clean during operation.
- Dual Functionality: combines high-precision CNC routing with a 445 nm 2.5 W laser engraver.
- Rigid Construction: metal alloy chassis with linear guides and ball screws for smooth motion without vibration.
- Closed-Loop Servo Drive: provides accurate motion control and obstacle collision protection on all axes.
| Manufacturer | MAKERA |
|---|---|
| Model | Carvera |
| Working area | 36 cm (X) × 24 cm (Y) × 14 cm (Z) |
| 4th axis working area (optional) | 9.2 cm (diameter) × 24 cm (length) |
| Maximum height (with cover open) | 84 cm |
| Base dimensions | 22.8" × 20.5" × 21.3" |
| Weight | approx. 50 kg |
| Power | 200 W |
| Rotational speed | 0–15,000 rpm (with closed-loop control) |
| Chuck | Dedicated 1/8" chuck included (optional: 1/4", 6 mm, 4 mm, 3 mm) |
| Tool change method | Automatic tool change |
| Magazine capacity | 6 tools |
| Cooling | Air cooling |
| Air Assist | External air compressor support |
| Motors | Servo motors for X/Y/Z axes, Nema17 stepper motor for A axis |
| Drive | Ball screws and linear guides |
| Maximum travel speed | 6000 mm/min |
| Spindle accuracy | < 0.01 mm |
| Resolution | 0.01 mm |
| Laser power | 2.5 W |
| Laser type | 445 nm semiconductor diode laser |
| Dust control | Built-in extraction system |
| Tank capacity | 0.8 L |
| Metal | Aluminum, brass, copper; optional: steel and titanium (not recommended for prolonged processing) |
| Wood | Hardwood and softwood, MDF, plywood, and others |
| Plastics | Foams, PVC, ABS, acrylic, PC, HDPE, and others |
| Composite materials | Carbon fiber, FR4, and others |
| Laser engraving materials | Wood, plastic, fabrics, leather, cardboard, and others |
| Control | Dedicated software supporting CARVERA functions |
| Connectivity | USB / Wi-Fi |
| Operating Systems | iOS, Android, macOS, Windows, Linux, and others |
| Dedicated CAM Software | Makera CAM; Makera Studio |
| Compatible CAD/CAM Software | Fusion360, SolidWorks, AutoCAD, VCarve Pro, Aspire, Illustrator, and others |
What is the working area of the MAKERA Carvera?
The main working area is 36 cm (X) × 24 cm (Y) × 14 cm (Z). With the optional 4th axis module, it supports parts up to 9.2 cm in diameter and 24 cm in length.
Does the machine have an automatic tool changer?
Yes, the Carvera features an automatic tool change system with a capacity of 6 tools.
What connectivity options are available?
The machine supports both USB and Wi-Fi connections, and is compatible with iOS, Android, macOS, Windows, and Linux.
