MAKERA Carvera Air 4-Axis Module for CNC Machine
Price: 444.80 €
| Products ID: | 177348 |
|---|---|
| Manufactured by: | MAKERA |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
Delivery options to:

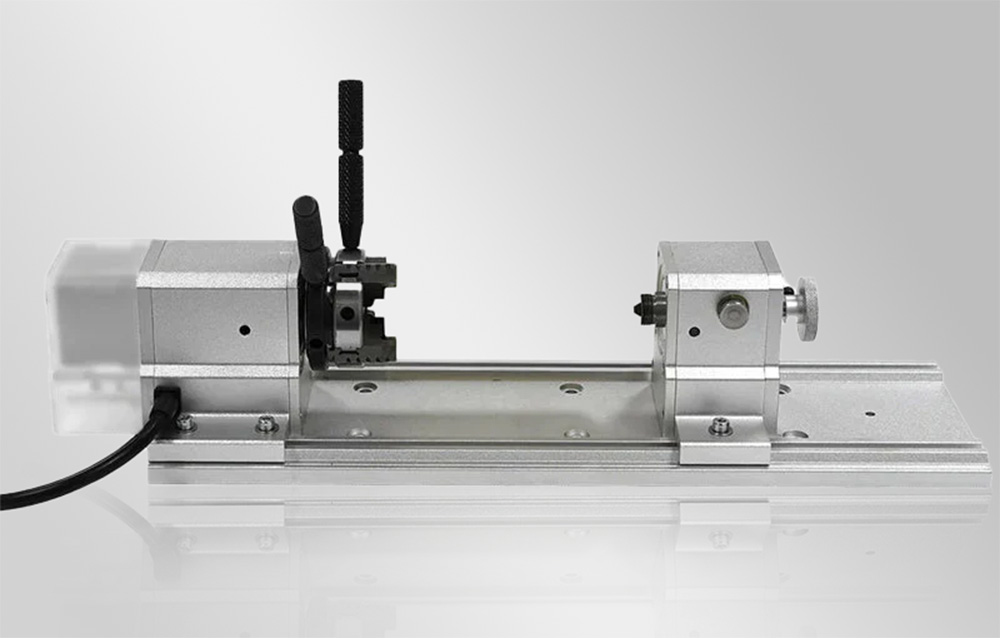

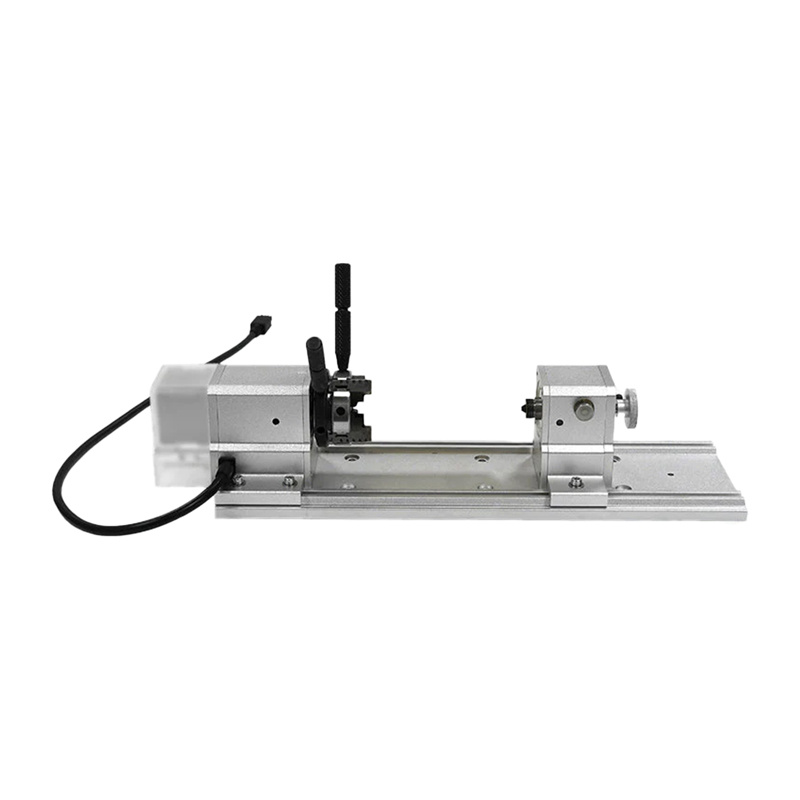

Choose countryThe MAKERA Carvera Air 4-axis module expands the capabilities of the Carvera Air milling machine, enabling simultaneous 4-axis machining for cylindrical parts, double-sided projects, and complex 3D shapes.
Key Features
- Designed exclusively for the MAKERA Carvera Air milling machine

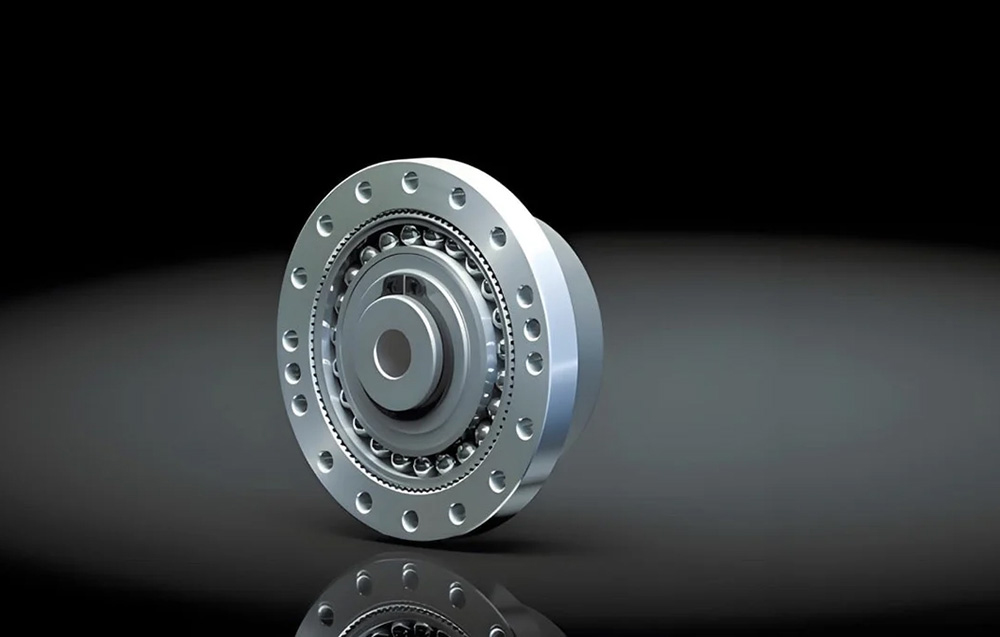

- Equipped with a harmonic wave gear drive for precise motion and minimal backlash
- Rotational precision of 0.01° and maximum speed of 2400°/min
- Suitable for wood, plastic, and non-ferrous metals
- Compatible with MakeraCAM, Fusion 360, VCarve, and other CAM software
| Manufacturer | MAKERA |
|---|---|
| Work area | 9.2 x 20 cm (diameter x length) |
| Weight | 2.5 kg |
| Drive system | Wave gear |
| Motor | Nema17 stepper motor |
| Maximum speed | 2400°/min |
| Rotational precision | 0.01° |
| Materials | Wood, plastic, non-ferrous metals |
| Software | MakeraCAM, Fusion 360, VCarve, etc. |
Which machine is this 4-axis module compatible with?
This module is designed exclusively for the MAKERA Carvera Air milling machine.
What is included in the package?
The package includes the 4-axis module, 2 resin modeling plates for the 4th axis, and 2 keys for the 4th axis lathe chuck.
What is the maximum workpiece size for the rotary axis?
The work area allows for parts up to 9.2 x 20 cm (diameter x length).
