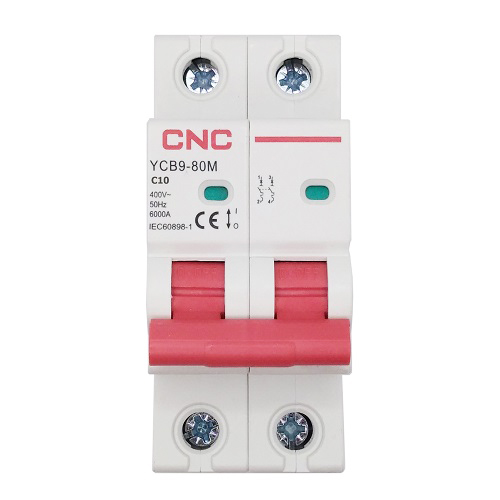

Miniature Circuit Breaker, 2P, 10A, Class C, 6kA
Price: 10.70 €
| Products ID: | 171179 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942034315382 |
Delivery options to:
Choose countryTwo-pole miniature circuit breaker designed with 10A rated current and Class C tripping characteristic for electrical circuit protection.
Key Features
- Protection against overload and short circuits
- Contact position indicator (red indicates closed, green indicates open)
- Mounting on 35mm DIN rail (EN 60715)
- Dual-end connection supporting cable or pin-type busbar up to 25mm²
- Flame-retardant, high-temperature and impact-resistant body
| Number of poles | 2 |
|---|---|
| Rated current (In) | 10 A |
| Tripping characteristic | Class C |
| Rated voltage (Ue) | AC 400 V |
| Insulation voltage (Ui) | 500 V |
| Rated frequency | 50/60 Hz |
| Rated breaking capacity (Icu) | 6000 A |
| Rated impulse withstand voltage (Uimp) | 6000 V |
| Mechanical endurance | 20000 operations |
| Electrical endurance | 8000 operations |
| Protection degree | IP20 |
| Terminal cross-section area | up to 25 mm² / 18-3 AWG |
| Mounting | DIN rail 35 mm (EN 60715) |
| Operating temperature | -5°C ~ +40°C |
How is this miniature circuit breaker mounted?
It is designed for fast clip mounting on standard 35mm DIN rail (EN 60715).
What do the contact position indicators mean?
Red indicates that the contacts are closed, while green indicates that the contacts are open.
