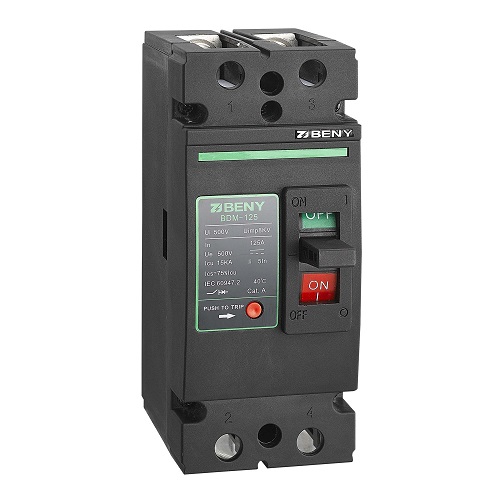

DC Molded Case Circuit Breaker 2P, 125A, 500VDC, Black

Price: 105.20 €

Products ID:	173991
Manufactured by:	Beny
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	9990000822621

Delivery options to:

Choose country

Molded case DC circuit breaker 2-pole, 125A, 500VDC designed for solar photovoltaic systems, battery energy storage systems (BESS), UPS applications, and EV charging stations.

Key Features

Non-polarity design allows charging and discharging without connection direction limits
Overload, short circuit, and over-current protection for DC circuits
Compatible with grounded and ungrounded systems
Tested for operation in extreme temperatures from -40°C to 85°C
15kA ultimate and run breaking capacity (Icu/Ics)

Poles	2P
Rated current (In)	125A
Rated voltage (Ue)	DC 500V
Insulation voltage (Ui)	DC 500V
Ultimate breaking capacity (Icu)	15kA
Run breaking capacity (Ics)	15kA
Rated impulse voltage (Uimp)	8kV
Mechanical life	10000 cycles
Electrical life	2000 cycles
Protection rating	IP20 (terminals), IP40 (all sides)
Certifications	AS/NZS IEC 60947.2, AS60947-2, TUV-027276-E
Dimensions	150.5x64.5x119 mm
Operating temperature	-40°C to 85°C
Color	Black
Warranty	24 months

What applications is this DC circuit breaker designed for?

It is designed for solar PV systems, battery energy storage systems (BESS), UPS applications, EV charging stations, DC combiner boxes, and DC distribution cabinets.

Does this circuit breaker require specific connection polarity?

No, it features a non-polarity design suitable for charging and discharging without connection direction limits.
