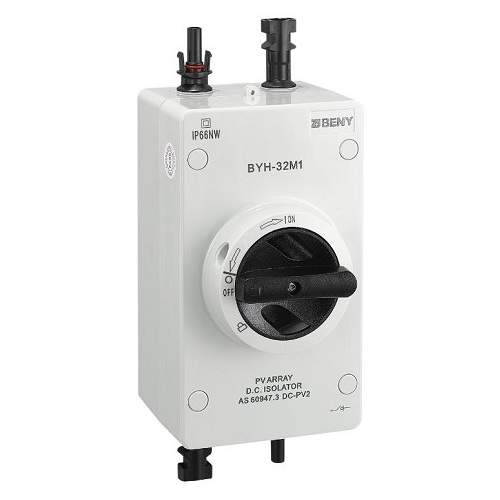

DC Isolator Switch 2P 32A 1000VDC MC4 IP66
Price: 49.30 €
| Products ID: | 170990 |
|---|---|
| Manufactured by: | Beny |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000821396 |
Delivery options to:
Choose countryDC isolator switch designed for disconnecting the DC circuit and controlling photovoltaic systems in residential and commercial installations.
Key Features
- Rated voltage up to 1000V DC and maximum current of 32A
- Pre-wired MC4 connectors for quick and secure installation
- IP66 protection rating, UV resistant and fire retardant enclosure with breathing valve
- Arcing time under 3 ms for effective circuit disconnection
- Lockable switch handle in the off position
| Number of poles | 2 |
|---|---|
| Rated voltage (Ue) | DC 1000V |
| Insulation voltage (Ui) | DC 1200V |
| Maximum current | 32A |
| Rated current (In) | 16A / 25A / 32A |
| Rated impulse voltage (Uimp) | 8kV |
| Protection rating | IP66 |
| Connection type | MC4 / M4 (1.2–1.8 Nm) |
| Wire cross-sectional area | max. 4–16 mm² |
| Mechanical life | 15000 cycles |
| Electrical life | 1000 cycles |
What is the rated voltage and maximum current of this isolator switch?
The switch is rated for up to 1000V DC with a maximum current of 32A.
Does this DC switch come pre-wired with MC4 connectors?
Yes, the isolator switch is factory pre-wired with MC4 connectors.
