Besen SQ20-22KW-APP Wall-Mounted Electric Vehicle Charger (22 kW)
-4%
Price: 337.90 €324.80 €
| Products ID: | 148814 |
|---|---|
| Manufactured by: | Besen |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 5907085525365 |
Delivery options to:
Choose country

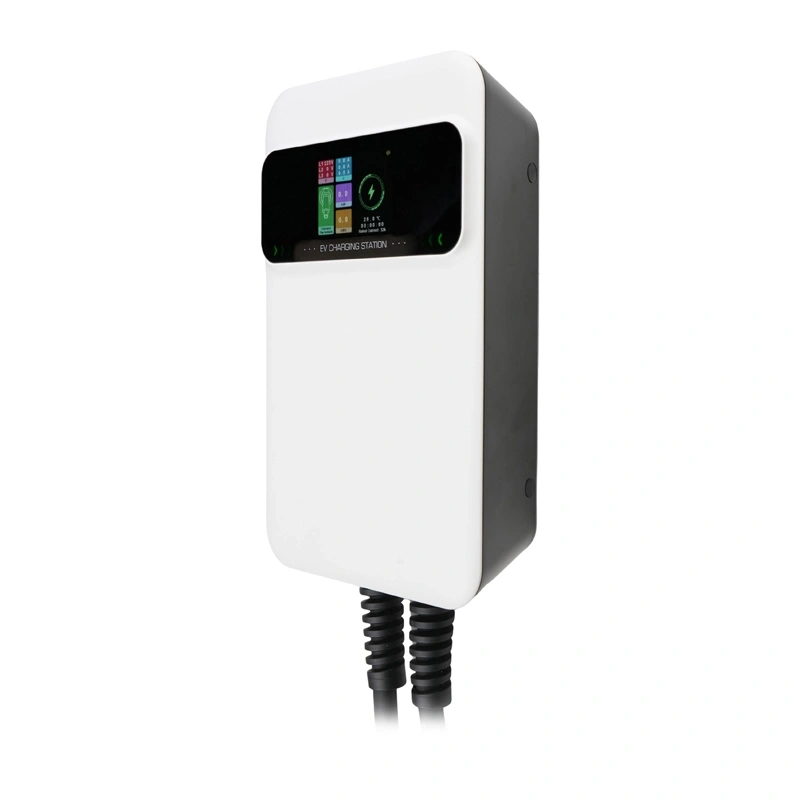

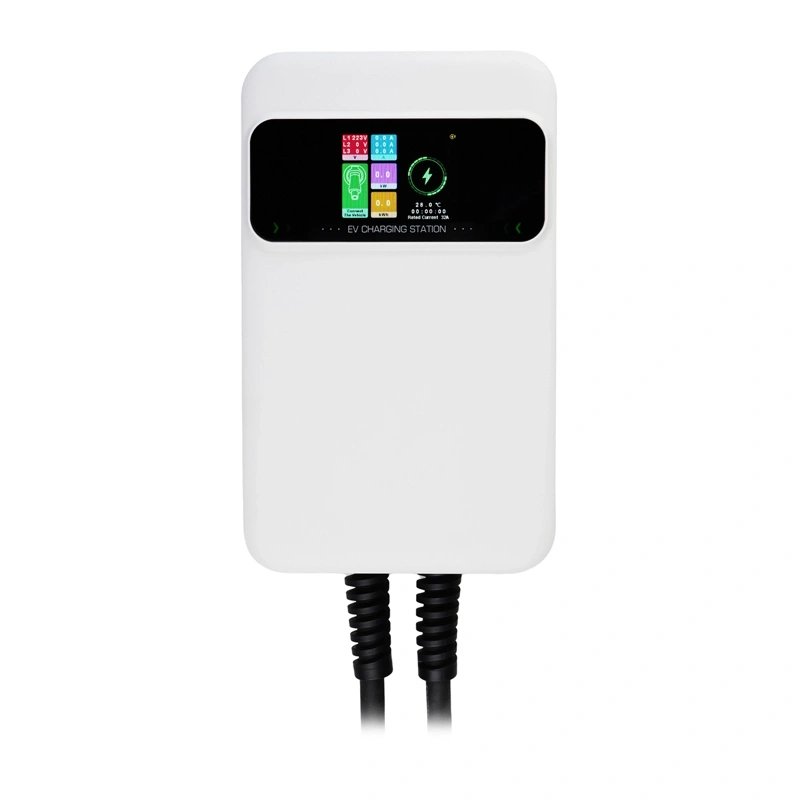

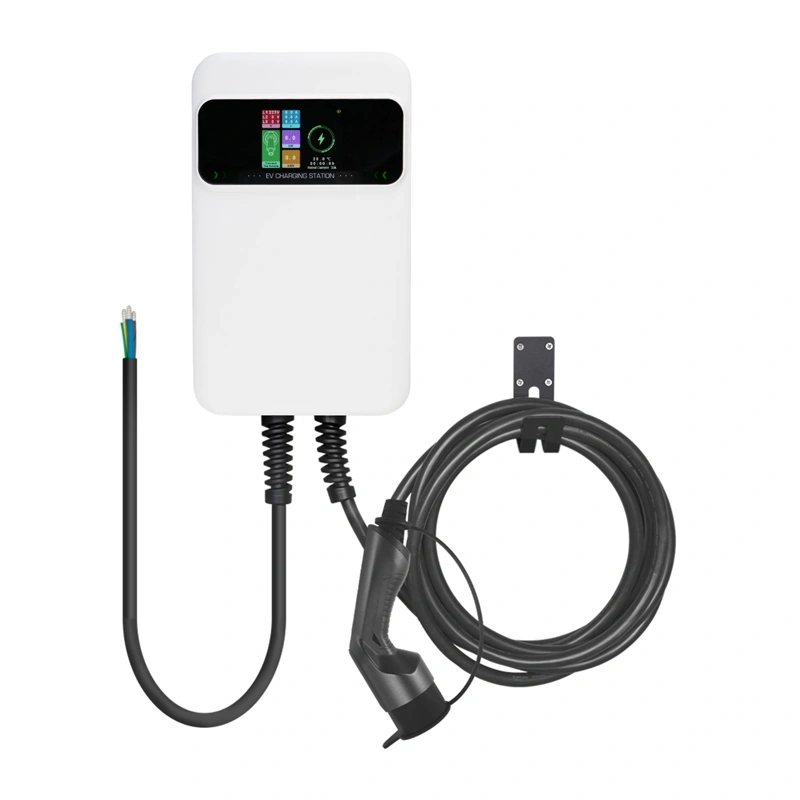

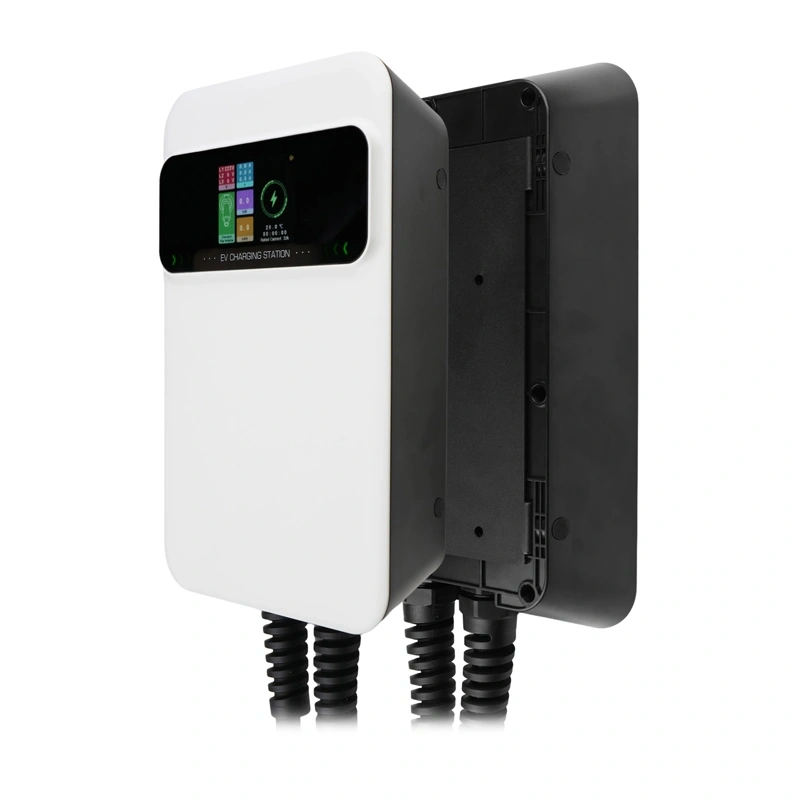

The Besen SQ20-22KW-APP is a wall-mounted 3-phase EV charger delivering up to 22 kW output, designed for both residential and professional charging applications.
Key Features
- Bluetooth app connectivity for remote current setting, scheduling, and charging history
- 3.5-inch color LCD display showing real-time voltage, current, temperature, and energy usage
- Smart chip for automatic diagnosis and correction of non-hardware errors
- Comprehensive safety protections against overvoltage, overload, short circuits, and overheating
- IP66-rated enclosure providing dust and water resistance
- Broad vehicle compatibility supporting SAE J1772, IEC 62196-2, and GB/T interfaces
| Manufacturer | Besen |
|---|---|
| Model | SQ20-22KW-APP |
| Output power | 22 kW |
| Input/output voltage | AC 400V (3-phase) |
| Maximum current | 32 A |
| Frequency | 47–63 Hz |
| Charging interface | SAE J1772, IEC 62196-2, GB/T |
| Display | 3.5” color LCD |
| Water resistance | IP66 |
| Weight | 8 kg |
| Dimensions | 295 × 195 × 65 mm |
| Ambient temperature | -25°C ~ +55°C |
| Humidity | 0–95% non-condensing |
What information is shown on the LCD screen?
The 3.5-inch color LCD screen displays real-time data including charging time, voltage, current, temperature, and total energy consumed.
What app features are available via Bluetooth?
Through the app, you can remotely configure charging current and schedule, start/stop charging, view usage history, and perform software updates.
What items are included in the package?

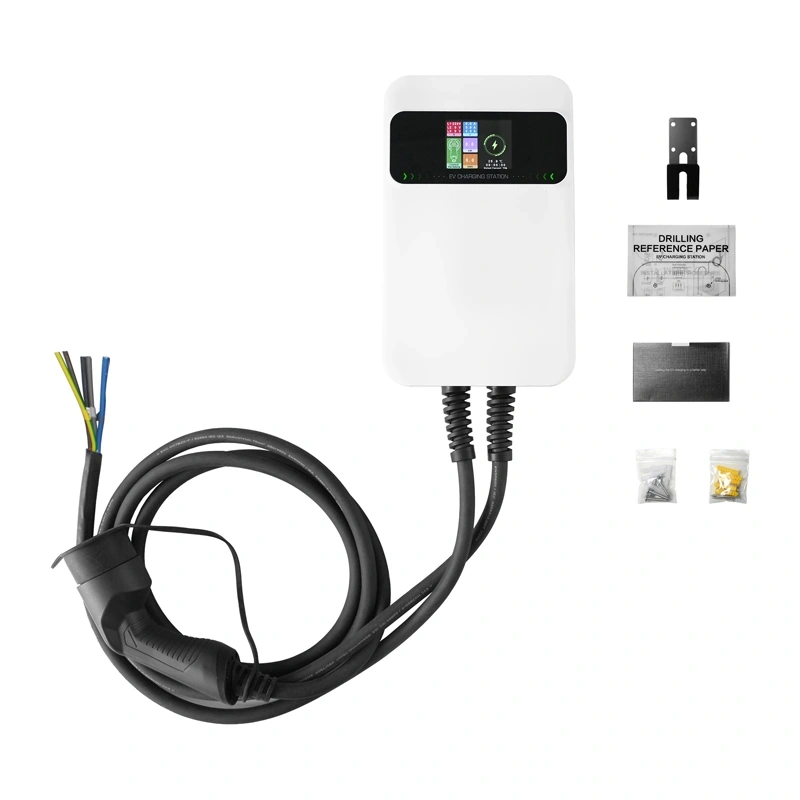

The package includes the charger, user manual, foldable quick start guide, positioning paper, mounting screws, and a metal hanger.
