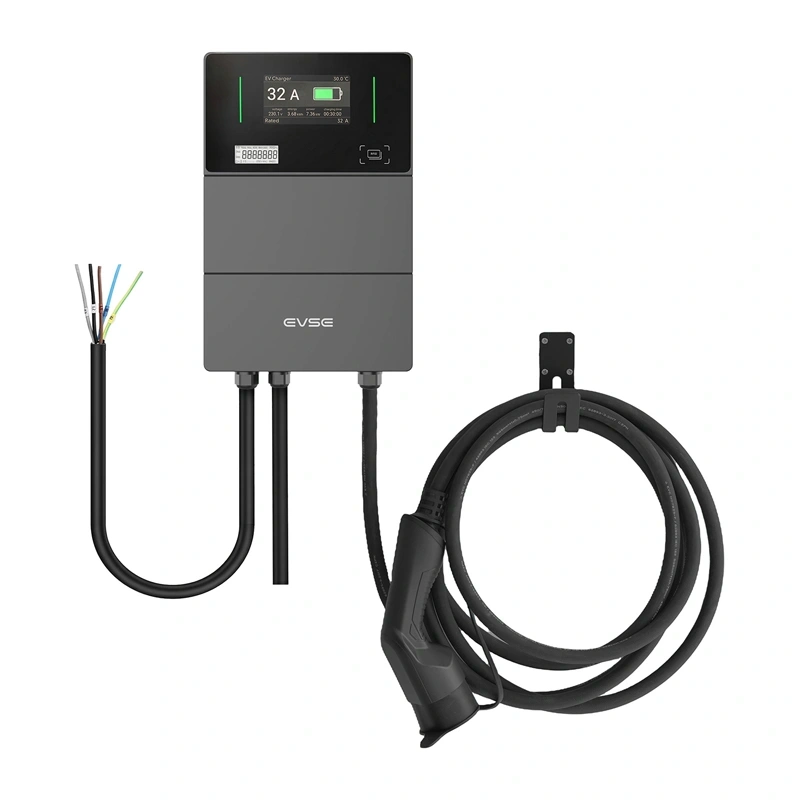

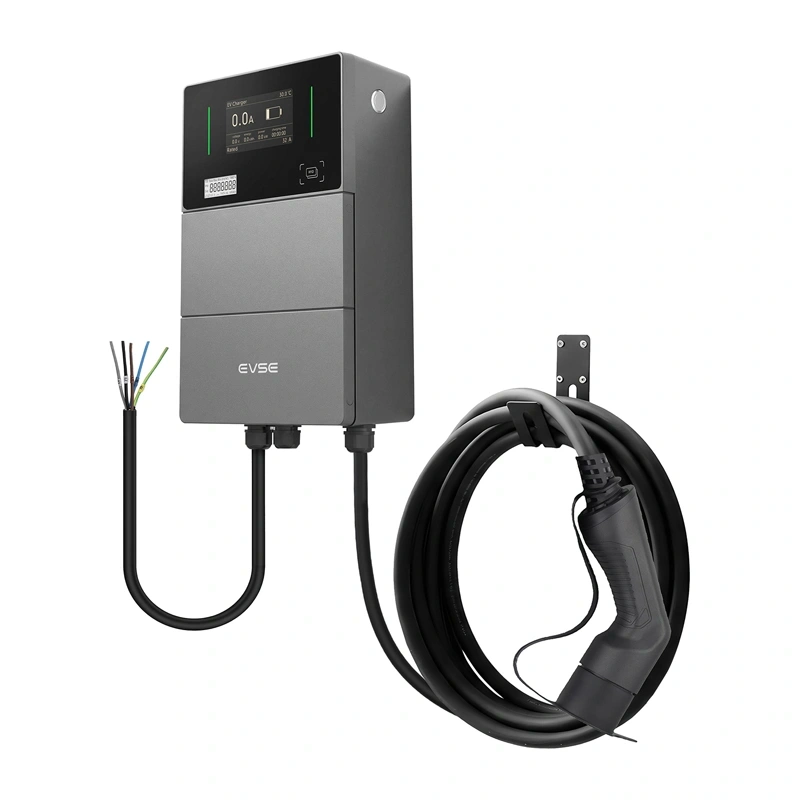

Besen BS40-11KW-DLB-APP 11 kW EV charger with DLB

385.70 €

Products ID: 197823

In supplier warehouse Available to order: 10+ pcs. Delivery Time 5–12 business days

Delivery options to:

The Besen BS40-11KW-DLB-APP charges electric vehicles at up to 11 kW using a 16 A three-phase supply. Mobile app control and Dynamic Load Balancing (DLB) provide access to charging controls and management of the electrical installation’s available power.

Control and electrical features

Mobile app: provides access to charger controls.
DLB function: manages the electrical installation’s available power.
Power supply: AC 230/400 V, 3 phases, 50/60 Hz.
Protection features: protection against undervoltage, current overload, short circuits, ground faults, overheating and the effects of lightning strikes.

Housing and installation

The IP66-rated housing measures 230 × 350 × 95 mm. The charger operates at temperatures from -25 °C to 55 °C and altitudes up to 2 000 m above sea level. Standby power consumption does not exceed 10 W.

A wall mount is included. An optional mounting post can be purchased separately for post installation.

Manufacturer	Besen
Model	BS40-11KW-DLB-APP
Power	11 kW
Rated current	16 A
Number of phases	3
Supply voltage	AC 230/400 V
Frequency	50/60 Hz
Protection rating	IP66
Operating temperature	From -25 °C to 55 °C
Standby power consumption	≤10 W
Maximum operating altitude	2 000 m above sea level
Dimensions	230 × 350 × 95 mm
Protection features	Undervoltage, current overload, short circuits, ground faults, overheating and the effects of lightning strikes
Control	Mobile app
Load management	Dynamic Load Balancing (DLB)
Included mounting accessory	Wall mount
Optional mounting solution	Mounting post, purchased separately
