Besen BS20 11 kW EV charging station with app control
-6%
Delivery options to:

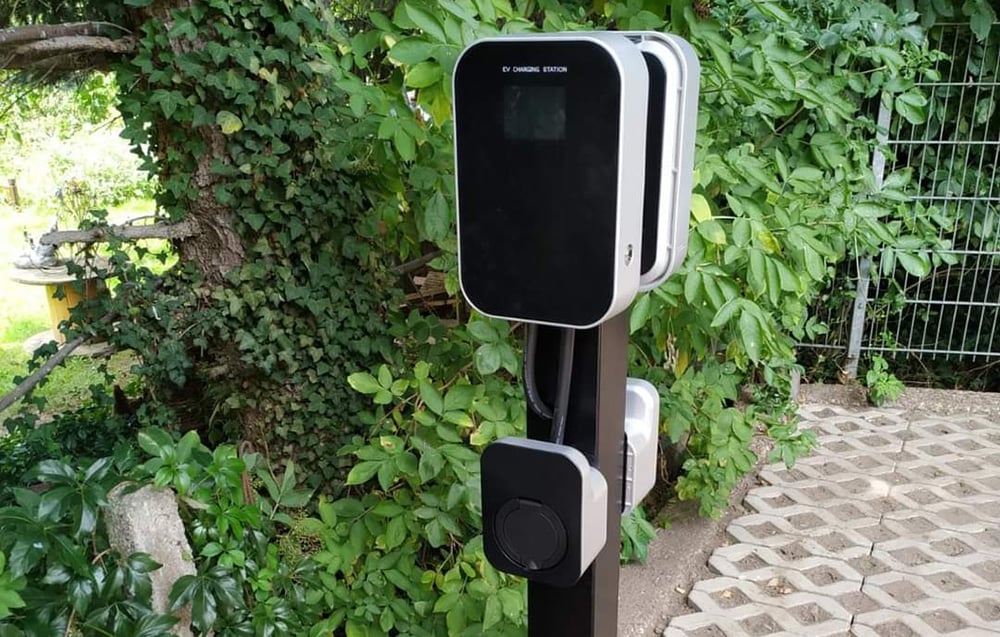

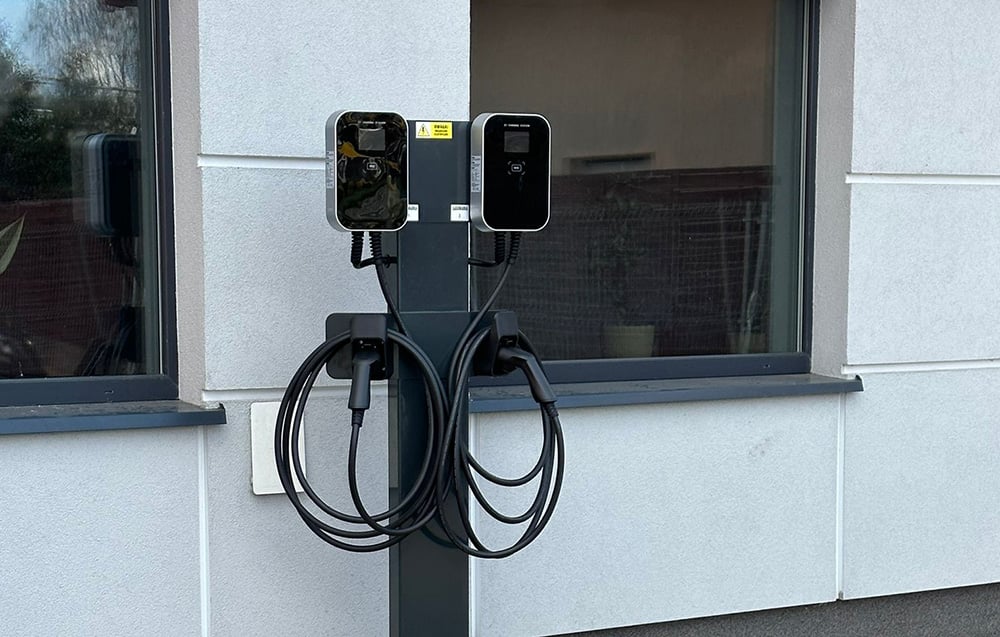

Choose countryThe Besen BS20 is an EV charging station delivering up to 11 kW, with a 5 m cable. Designed for private garages and commercial car parks, it supports wall or floor mounting.
Charging information and control
A 3.5-inch colour LCD displays charging status. Pair the station with your smartphone via Bluetooth to use EVSEMaster for setting charging times, viewing charging history, updating software and starting or stopping charging. The app is available on the App Store and Google Play.
- Housing: PC+ABS plastic with IP66 protection against dust and water jets and IK10 impact resistance.
- Protection: undervoltage, overload, short-circuit, overheating and lightning protection, plus RCD protection.
- Standby consumption: less than 8 W.
- Optional connectivity: Ethernet, Wi-Fi, 4G and Bluetooth are listed as options.
Package contents
Includes the charger, user manual, fold-out quick start guide, positioning template, mounting screws and metal hanger.
| Manufacturer | Besen |
|---|---|
| Model | BS20 |
| Input voltage / output voltage | AC 230 V / 400 V |
| Input frequency | 47–63 Hz |
| Output power | 11 kW |
| Maximum output current | 32 A |
| Connector type | SAE J1772, IEC 62196-2, GB/T |
| Cable length | 5 m |
| Protection rating | IP66 |
| Housing material | PC+ABS engineering plastic |
| Impact resistance | IK10 |
| Protection features | Undervoltage, overload, short-circuit, overheating and lightning protection |
| RCD | Type A / Type A+6 mA DC |
| Ambient temperature | -25 °C to 55 °C |
| Ambient humidity | 0–95% (non-condensing) |
| Display | 3.5-inch colour LCD |
| Mounting | Wall or floor mounting |
| App | EVSEMaster; App Store and Google Play |
| App functions | Charging time settings, charging history, software updates, starting and stopping charging via Bluetooth |
| Optional connectivity | Ethernet, Wi-Fi, 4G, Bluetooth |
| Certifications | CE, FCC, CSA, RoHS, ETL |
| EAN | 5906168438790 |
|---|
Can I control charging from my phone?
Yes. With a Bluetooth connection to the station, EVSEMaster lets you start and stop charging, set charging times, view charging history and update software.
What is included?
The charger, user manual, fold-out quick start guide, positioning template, mounting screws and metal hanger.
