Medical Pulse Oximeter Finger LCD Display

The pulse oximeter works by measuring the absorption of radiation of two different wavelengths - red and infrared - by red blood cells in the capillaries The measured signal consists of two components: a constant and a variable (pulsating) component. The variable component describes the absorbance of the pulsed arterial blood. From the measurement, the degree of haemoglobin saturation with oxygen is calculated The pulse oximeter also measures the heart rate.

The pulse oximeter is a small device for the rapid measurement of vital signs such as pulse. The correct oxygen saturation level should be between 94 and 99%.

During the test, it is important to remember that the pulse rate should not be tested after physical exertion or in a state of emotional distress. The average heart rate is age-dependent. The pulse oximeter test is best performed in a sitting position, without having performed much physical exertion beforehand.

The pulse oximeter is a device that should be found in every home.

It is intended, mainly for people who have difficulty breathing, people with chronic lung diseases, in asthma, in hypoxia emergencies, in cardiovascular diseases, in heavy physical exertion and in many other cases, as well as for daily health monitoring.

PULSE OXIMETER OPERATION:

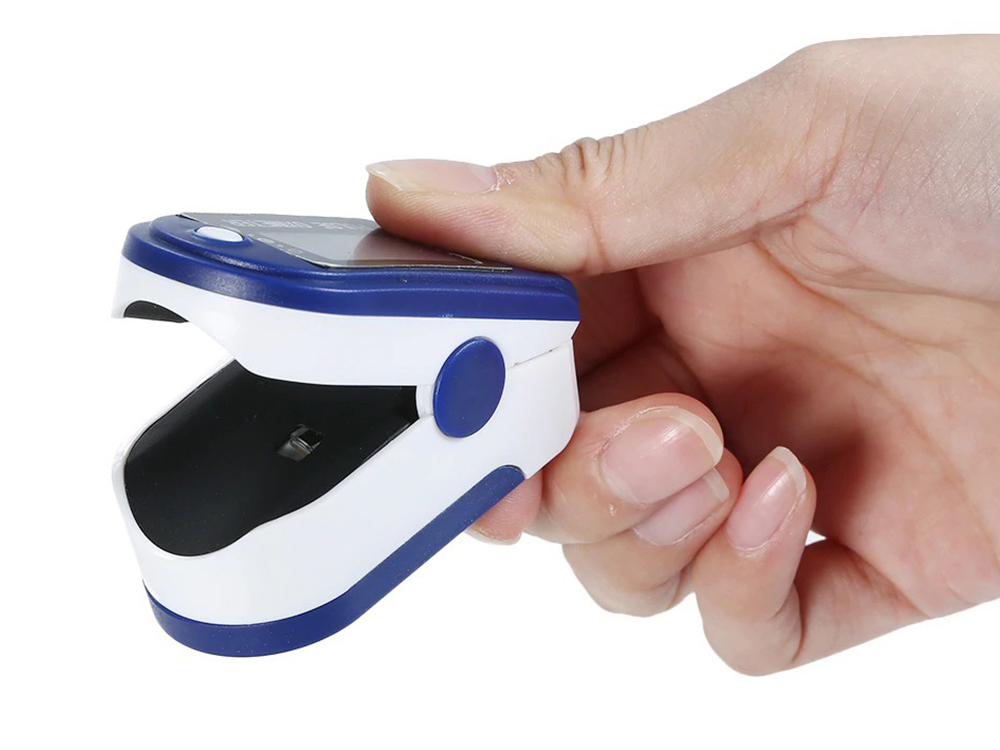

✅ Unfold the clip by pressing the PUSH button at the top.

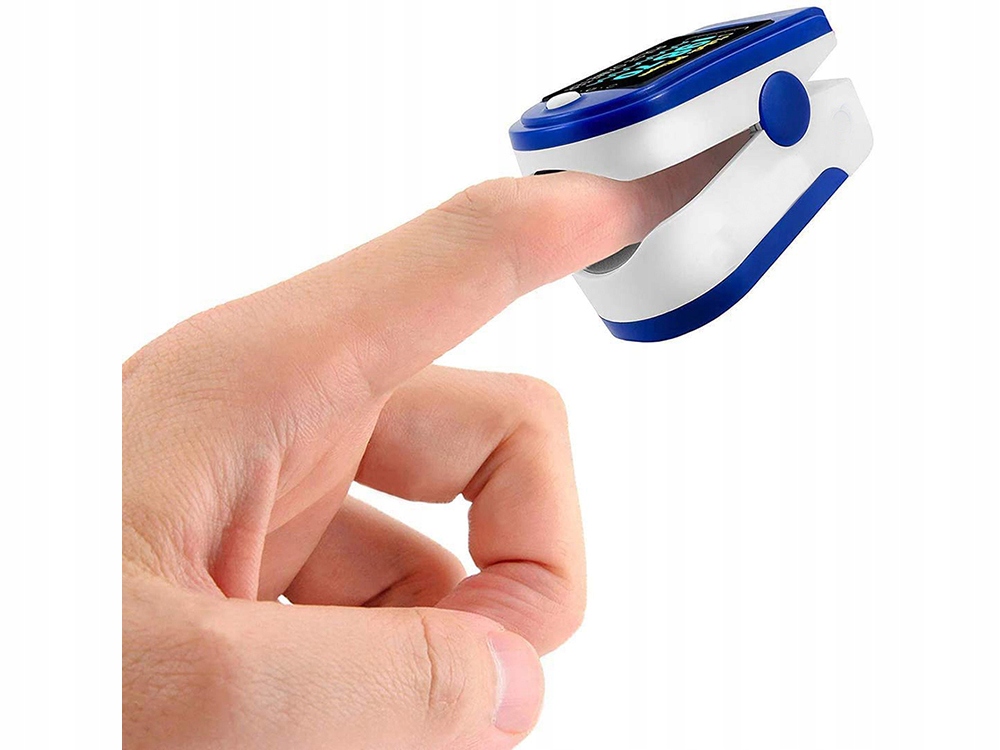

✅ Insert finger inside so that it is parallel to the ground

✅ Switch the pulse oximeter on using the white button

✅ Read out the resulting measurement

✅ Remove finger from pulse oximeter, device switches off after a while

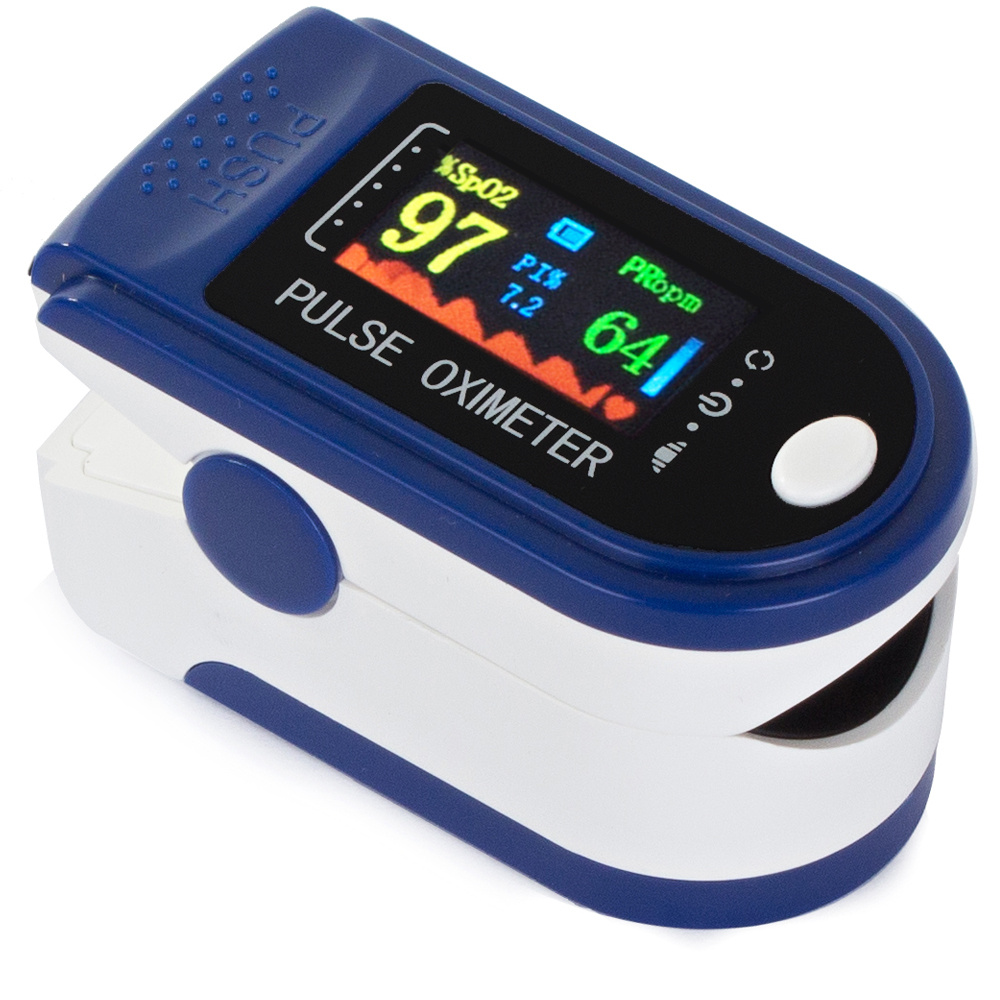

SYMBOL DESIGNATION:

✅ %Sp02 - oxygenation of the body - norm from 94 to 100%

✅ PR - heart rate - norm depending on age

✅ Battery charge indicator

✅ PI% - perfusion index indicator

TECHNICAL SPECIFICATIONS:

✅ Quick and easy operation

✅ Measuring range for oxygenation: 70% to 99%

✅ Accuracy of oxygenation measurement in the range 80% - 99% is 2%

✅ Accuracy of oxygenation measurement from 70% - 99% is 3%

✅ Heart rate measurement range: 30 to 240 BPM

✅ Accuracy of heart rate measurement: +/- 1 BPM

✅ Automatic switch-off

✅ Option to rotate function on display: vertical or horizontal

✅ Colour OLED display

✅ Can be used at temperatures of: 5 to 40 degrees Celsius

✅ Power supply: 2 x AAA ( not supplied)

✅ Battery level indicator

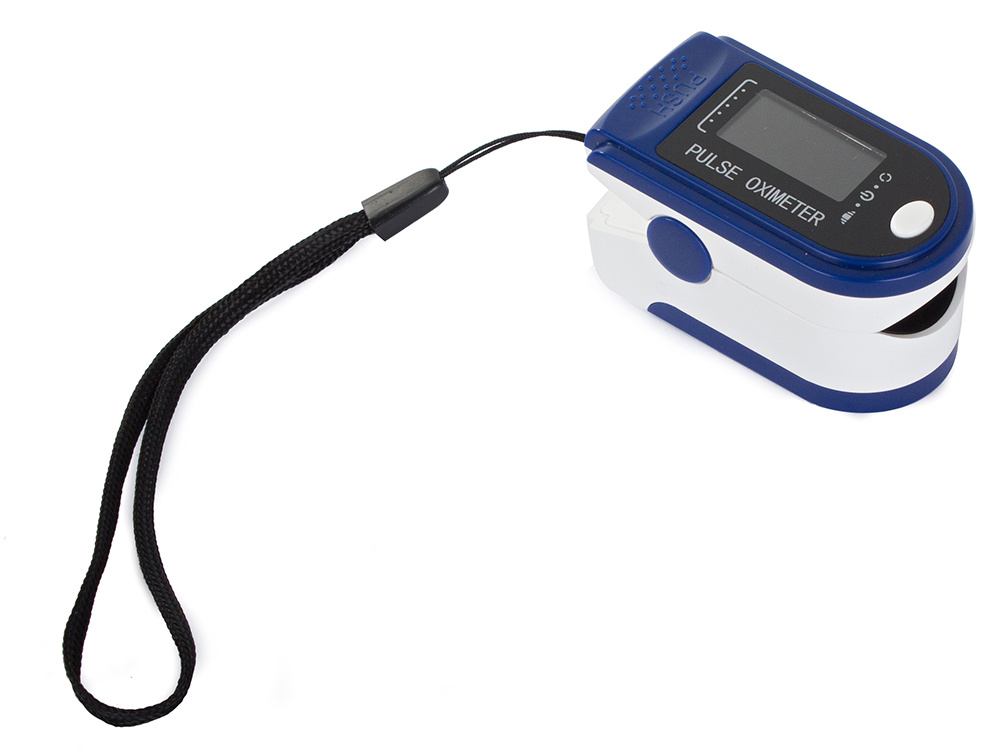

✅ Hanging lanyard

✅ Display dimensions: 22mm x 11mm

✅ Device dimensions: 55mm x 30mm x30mm

Note: dark nail varnishes may interfere with the measurement
