ELEGOO Mars 5 Ultra 3D Printer

-2%

ELEGOO Mars 5 Ultra 3D Printer — Image 2

ELEGOO Mars 5 Ultra 3D Printer — Image 3

ELEGOO Mars 5 Ultra 3D Printer — Image 4

317.70 €311.50 €

Products ID: 176026

In supplier warehouse Available to order: 10+ pcs. Delivery Time 5–12 business days

Delivery options to:

Choose country

The ELEGOO Mars 5 Ultra is an MSLA resin 3D printer engineered for speed and precision, equipped with a 7-inch 9K Mono LCD screen and Tilt Release technology.

Key Features

High Resolution: 9K display with 18 x 18 μm XY resolution for highly detailed and accurate prints.
Tilt Release Technology: Speeds up layer separation to achieve printing speeds of up to 150 mm/h.
Intelligent AI Camera: Real-time monitoring, failure detection, and time-lapse video recording capabilities.
Automatic Leveling: One-Click self-check and auto-leveling system ensure quick, tool-free setup.
Reliability and Safety: Smart resin level monitoring, power-loss resume printing, and overheat protection over 80°C.

Manufacturer	Elegoo
Model	Mars 5 Ultra
Printing Technology	MSLA
Build Volume	153.36 x 77.76 x 165 mm
Print Speed	Up to 150 mm/hour
Layer Thickness	0.01-0.2 mm
XY Resolution	18 x 18 μm (8520 x 4320 pixels)
Z-axis Accuracy	0.02 mm
Light Source	COB (405 nm wavelength)
LCD Screen	7 inches, 9K Mono LCD
Screen Protector	9H tempered glass
Connectivity	USB, WiFi
System	EL3D-4.0
Compatible Software	Chitubox
Dimensions	260 x 268 x 451.5 mm
Net Weight	8.8 kg
Gross Weight	10.8 kg

EAN	6976021767960

What is the build volume and maximum print speed of the Mars 5 Ultra?

The Mars 5 Ultra has a build volume of 153.36 x 77.76 x 165 mm and can reach printing speeds of up to 150 mm/h.

What functions does the AI camera provide?

The AI smart camera provides real-time print monitoring, detects common printing errors (such as empty plate or warping), and records time-lapse videos.

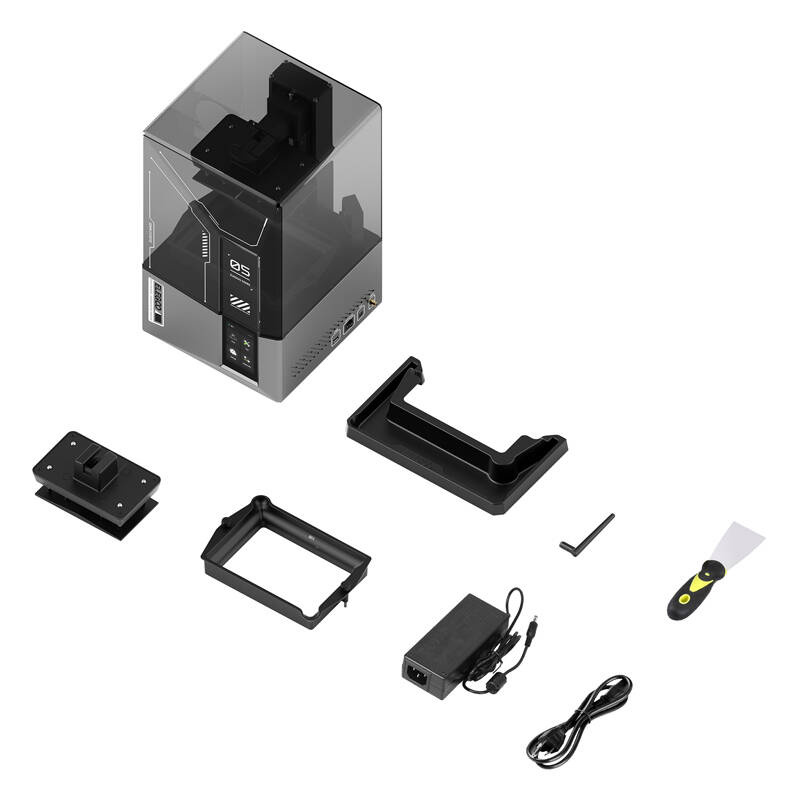

What items are included in the package?

The package includes the Mars 5 Ultra 3D printer, WiFi antenna, build plate, resin tank, AI camera, resin tray, USB drive, protective mask, gloves, funnel, spare screws, power supply, tool kit, scraper, and user manual.
