ELEGOO Mars 5 3D Printer

Price: 195.70 €

Products ID:	175073
Manufactured by:	Elegoo
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6976021767953

Delivery options to:

Choose country

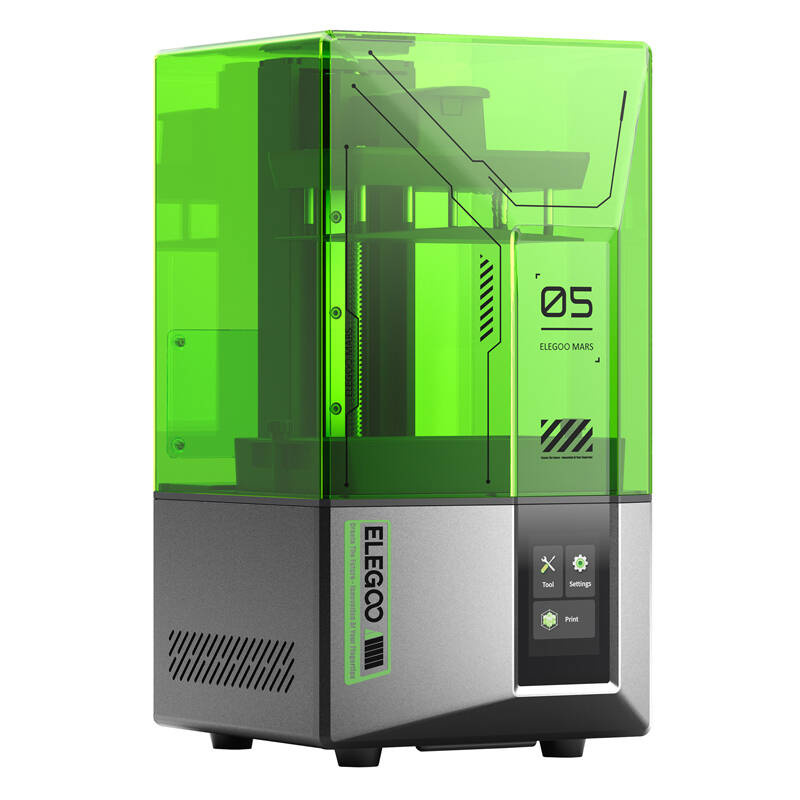

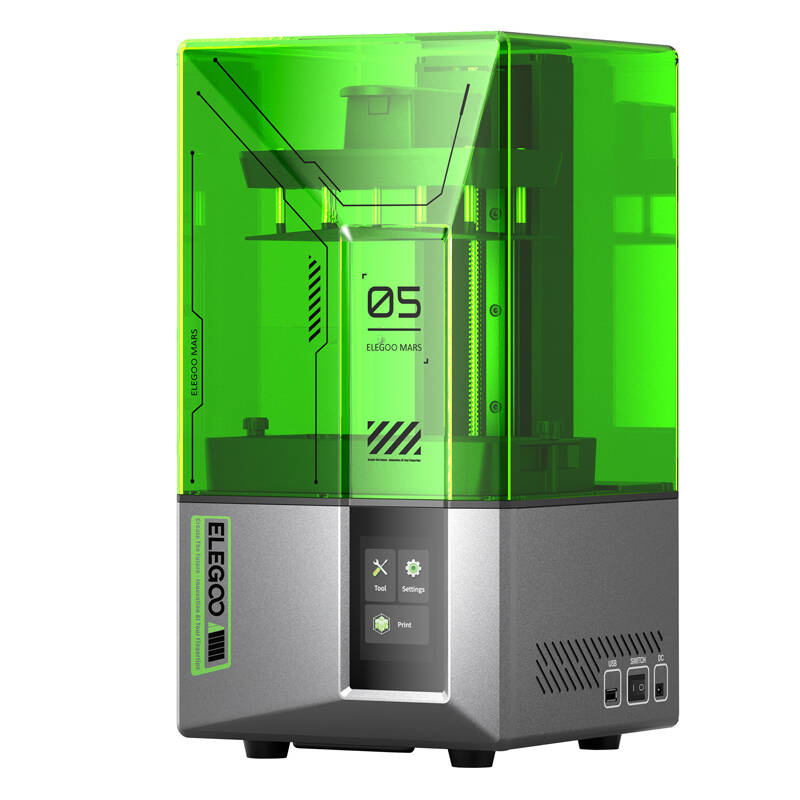

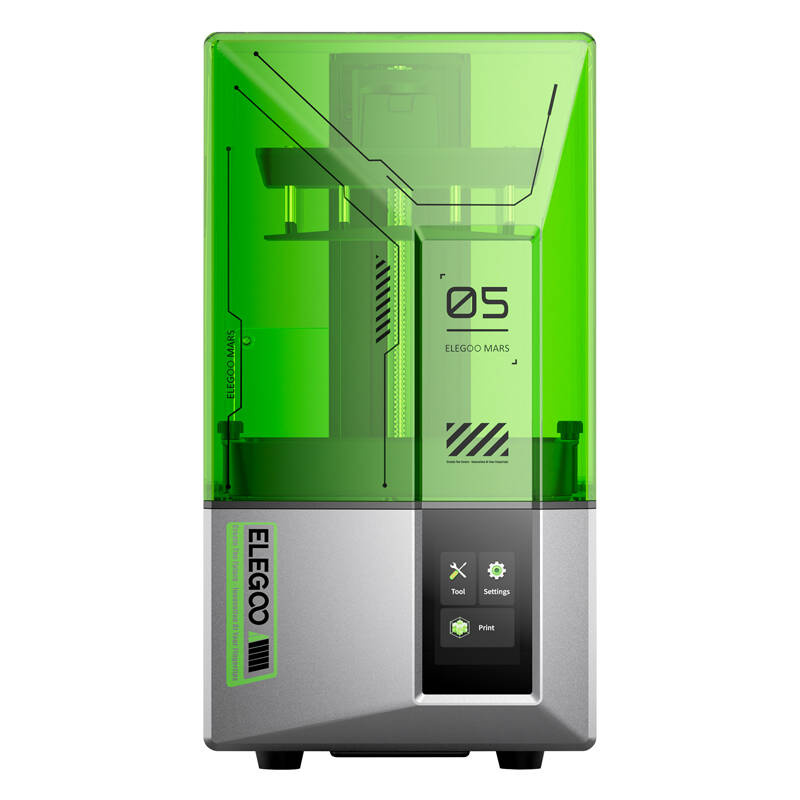

The ELEGOO Mars 5 is an MSLA 3D printer designed for high-precision model creation, prototyping, and detailed parts.

Key Features

4K Mono LCD: 6.6-inch display with 35 x 35 μm XY resolution captures fine details.
Automatic Leveling: Prepares the build platform with a single click without manual calibration.
Intelligent Sensors: Detects resin residue, monitors resin levels, and checks plate alignment.
One-Click Self-Check: Verifies hardware status and functionality before printing begins.
Overheat Protection: Automatically pauses printing and triggers an alert if LED temperature exceeds 80℃.

Manufacturer	ELEGOO
Model	Mars 5
Printing Technology	MSLA
Working Volume	143.43 x 89.6 x 150 mm³
Print Speed	Up to 70 mm/hour
Layer Thickness	0.01-0.2 mm
XY Resolution	35 x 35 μm (4098 x 2560 pixels)
Z-Axis Accuracy	0.02 mm
Light Source	COB (405 nm wavelength)
LCD Screen Size	6.6 inches, 4K Mono LCD
Screen Protection	Scratch-resistant PET film
Connection	USB interface
System	EL3D-3.0.1
Compatible Software	Chitubox, Voxeldance Tango
Interface Languages	Chinese, English
Power Requirements	100-240V 50/60Hz 24V 3A
Cooling System	3 heat pipes + fan
Dimensions	230 x 230 x 433.5 mm
Net Weight	6.6 kg
Gross Weight	8.6 kg

What is the build volume of the ELEGOO Mars 5?

The working volume is 143.43 x 89.6 x 150 mm³.

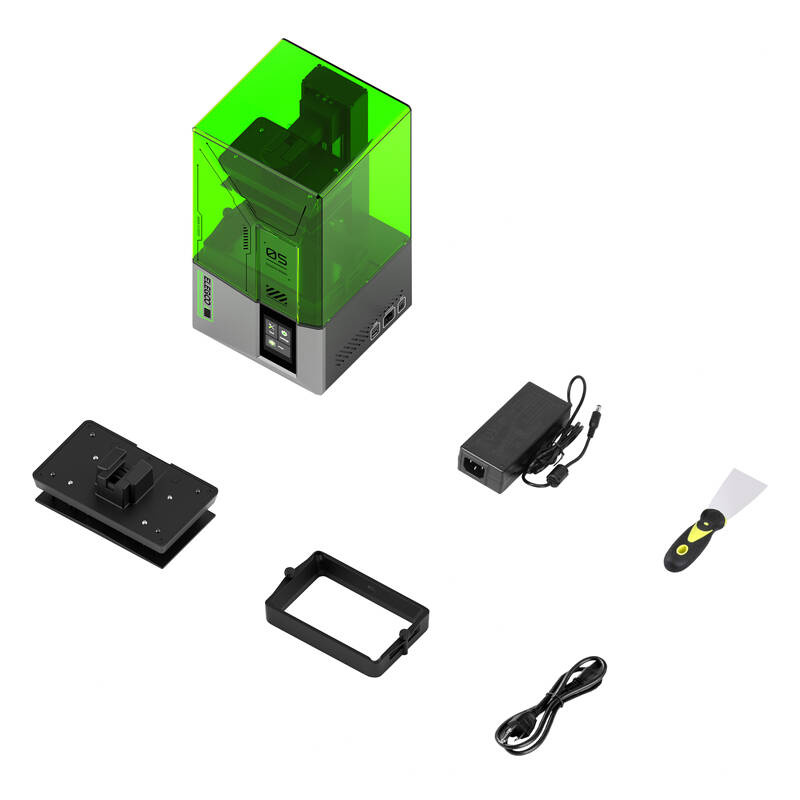

What items are included in the package?

The package includes the Mars 5 3D printer, work plate, resin tank, USB drive, protective mask, gloves, funnel, spare screws, user manual, power supply, tool kit, and scraper.

Which slicer software programs are supported?

The printer is compatible with Chitubox and Voxeldance Tango.
