ELEGOO Centauri Carbon 2 3D Printer, CoreXY, 256x256x256 mm
Elegoo
| Products ID: | 195170 |
|---|---|
| Manufactured by: | Elegoo |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 6932704931721 |
Delivery options to:
Choose country

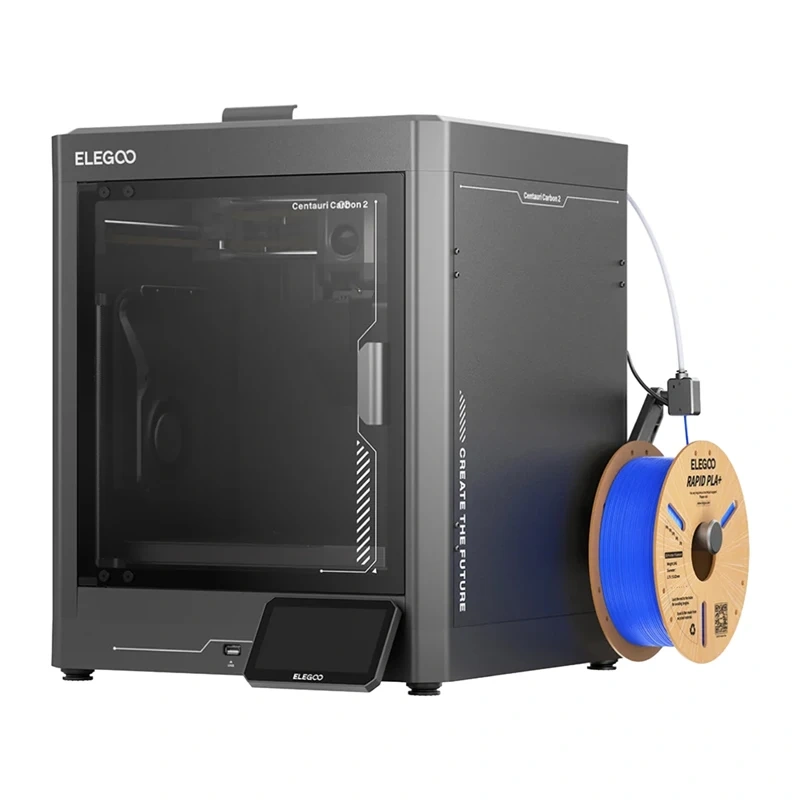

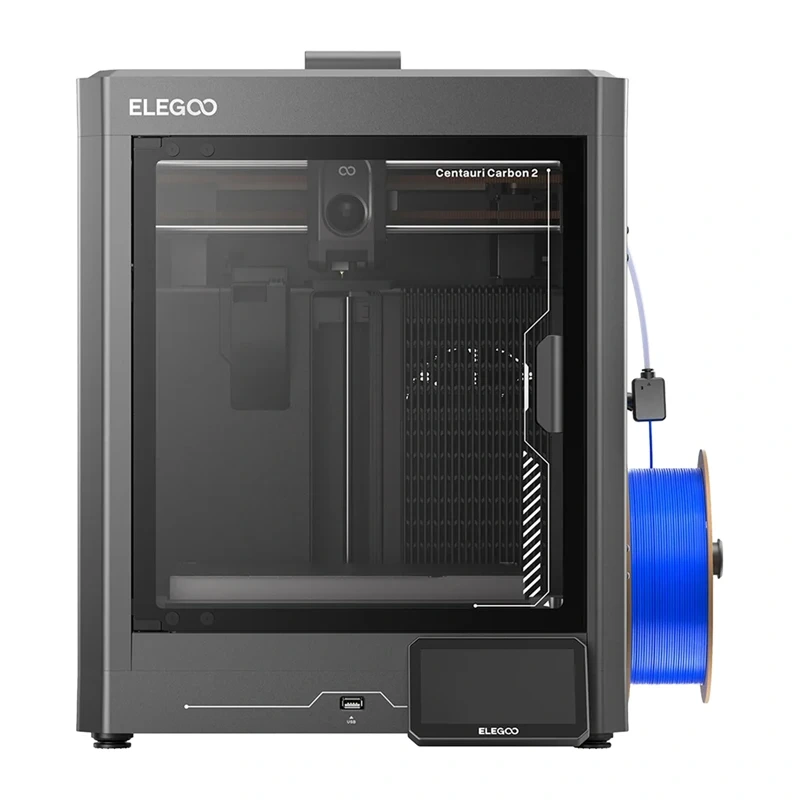

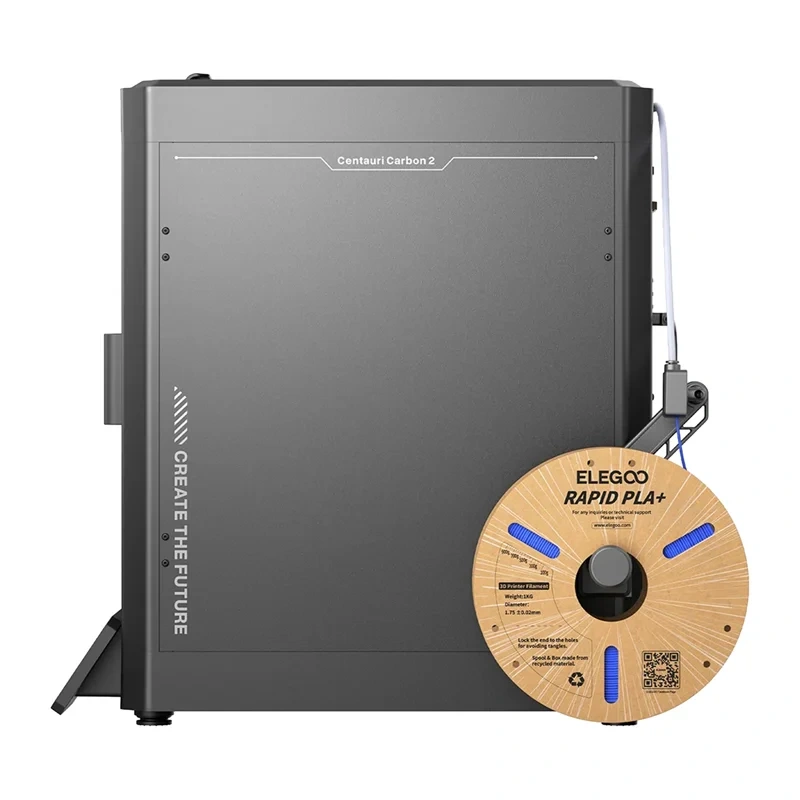

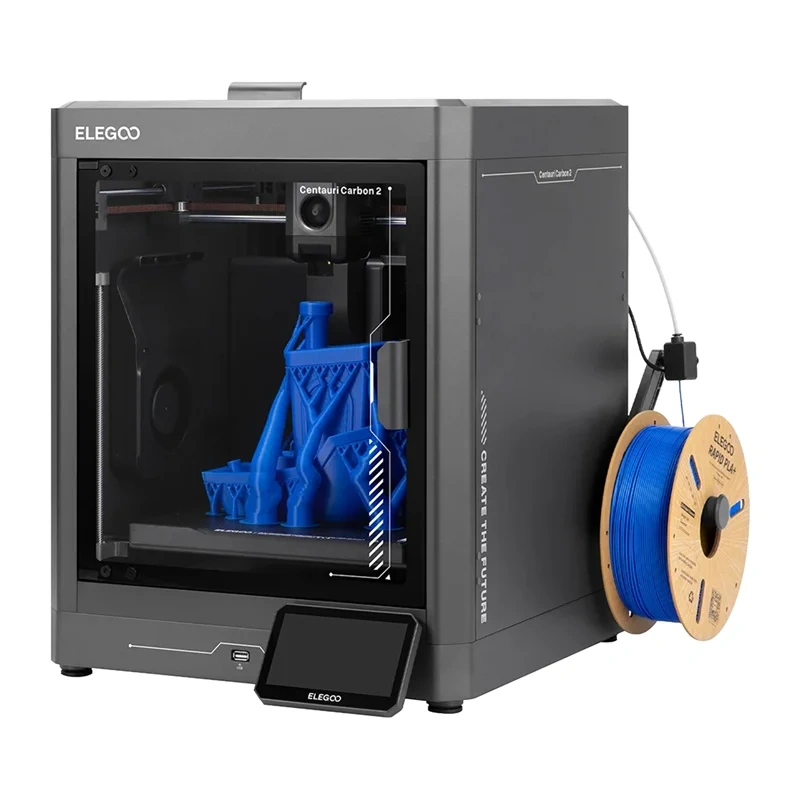

The ELEGOO Centauri Carbon 2 is an enclosed FDM 3D printer built on a CoreXY architecture, engineered for high-speed printing across a broad range of materials. It provides a 256 × 256 × 256 mm build volume, print speeds reaching up to 500 mm/s, a default acceleration of 10 000 mm/s², and a hotend capable of reaching 350°C.
CoreXY Kinematics and Rigid Mechanics
The CoreXY design achieves print speeds of up to 500 mm/s, with 250 mm/s as the recommended setting, while acceleration reaches up to 20 000 mm/s². Two 4260 stepper motors independently power the X and Y axes alongside low-friction metal linear rails for fluid movement. The Z-axis features 3 trapezoidal lead screws and 3 metal linear guides, giving stable three-point support to the build platform to preserve layer repeatability. An integrated die-cast aluminum frame and base dampen vibrations to maintain ±0.1 mm dimensional accuracy.
350°C Hotend and Extensive Material Compatibility

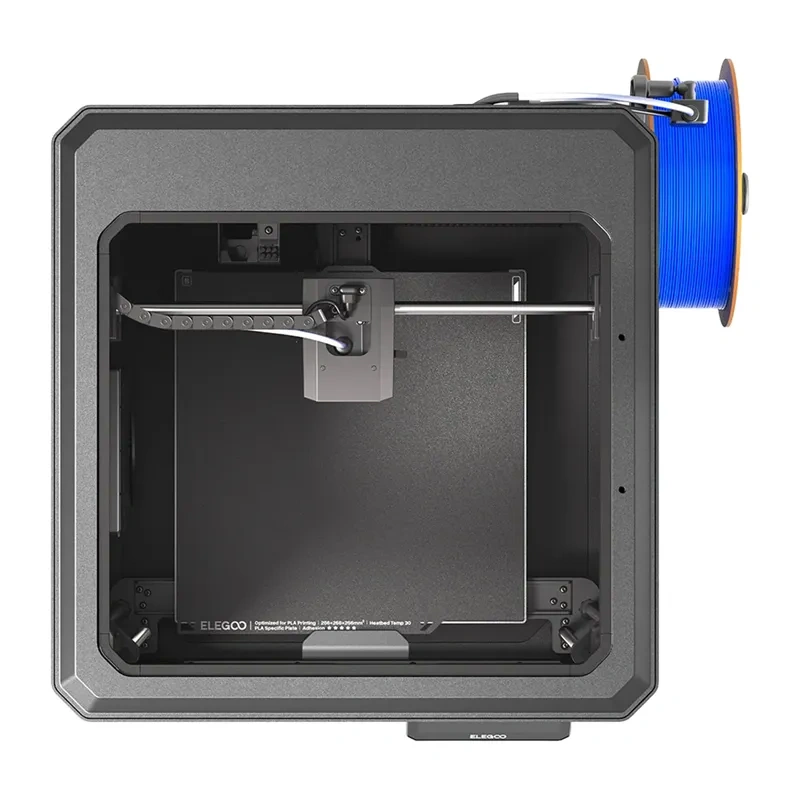

With its enclosed chamber and a hotend reaching up to 350°C, the Centauri Carbon 2 works with both standard and technical 1.75 mm filaments. Supported materials include PLA, PETG, TPU, PLA-CF, ABS, ABS-CF, ASA, ASA-CF, PET, PET-CF, PETG-CF, PC, PA, and select PPS and PPA polymers. The toolhead features a Dual-Gear Direct extruder, titanium heat break, and a 0.4 mm nozzle made from brass and hardened steel, complemented by a heated bed that reaches 110°C.
Automated Setup and Process Monitoring
The printer features full automatic calibration and a 121-point mesh bed leveling routine. An integrated camera enables live monitoring, while a filament runout sensor and clog detection help safeguard long jobs. The build platform utilizes a double-sided spring steel sheet featuring textured PEI on one side and a dedicated PLA surface on the other. User interaction is handled via a 5-inch capacitive touchscreen, Wi-Fi and USB connectivity, built-in HEPA filtration with activated carbon, and low-noise drivers operating below 45 dB.
| Manufacturer | ELEGOO |
|---|---|
| Model | Centauri Carbon 2 |
| Printing technology | FDM (Fused Deposition Modeling) |
| Design | CoreXY |
| Build volume | 256 × 256 × 256 mm |
| Build plate size | 260 × 260 mm |
| Maximum print speed | up to 500 mm/s |
| Recommended print speed | 250 mm/s |
| Default acceleration | 10 000 mm/s² |
| Maximum acceleration | 20 000 mm/s² |
| Print accuracy | ±0.1 mm |
| Layer thickness | 0.1–0.4 mm |
| Recommended layer thickness | 0.2 mm |
| Filament diameter | 1.75 mm |
| Supported filaments | PLA, PETG, TPU, PLA-CF, ABS, ABS-CF, ASA, ASA-CF, PET, PET-CF, PETG-CF, PC, PA, and select PPS and PPA materials |
| Extruder | Dual-Gear Direct Extruder |
| Nozzle | brass + hardened steel |
| Nozzle diameter | 0.4 mm |
| Maximum nozzle temperature | 350°C |
| Maximum bed temperature | 110°C at an ambient temperature of 25°C |
| Operating ambient temperature | 5–40°C |
| Thermal cut-off | titanium alloy |
| Platform | double-sided spring steel plate, textured PEI + PLA-compatible surface |
| Leveling | automatic, 121-point |
| Drive control | Quiet controllers for all axes |
| Camera | Yes |
| Full automatic calibration | Yes |
| Filament end sensor | Yes |
| Air filter | HEPA + activated carbon |
| LED lighting | Yes |
| Display | 5" capacitive touchscreen |
| Operating system | ELEGOO OS |
| Connectivity | USB, Wi-Fi |
| Software | ElegooSlicer, Orca, Cura |
| Supported input formats | STL, OBJ, 3MF, STEP |
| Output format | G-code |
| Multicolor printing support | Can be upgraded with CANVAS (sold separately) |
| Operating noise level | ≤45 dB |
| Printer dimensions | 398 × 404 × 490 mm |
| Net weight | 17.5 kg |
| Input voltage | 100–240 V AC, 50/60 Hz |
| Output voltage | 24 V |
| Rated power | 1 100 W at 220 V / 350 W at 110 V |
What items are included in the printer package?
The package includes the ELEGOO Centauri Carbon 2 3D printer, touchscreen, filament spool holder and mount, power cord, nozzle cleaning needle, Allen wrenches, screwdriver, filament sample, spare nozzle cleaning element, user manual, USB flash drive, scraper blade, and filament end sensor cable.
Does the Centauri Carbon 2 support multi-color 3D printing?
Yes, the printer is ready for multi-color printing through the compatible CANVAS system, which is available separately.
Which software and file formats can be used with this printer?
The printer supports ElegooSlicer, Orca, and Cura software. It accepts STL, OBJ, 3MF, and STEP input formats and outputs G-code.
