QIDI Box Multi-Filament System for Q2 3D Printers
Price: 210.50 €
| Products ID: | 183991 |
|---|---|
| Manufactured by: | QiDi |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 744581223501 |
Delivery options to:
Choose country

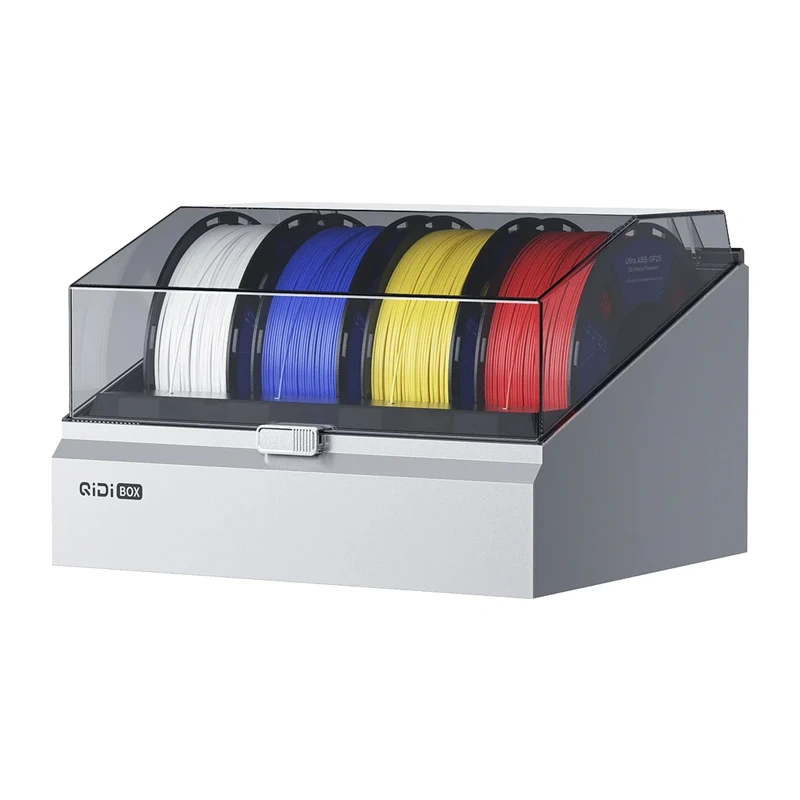

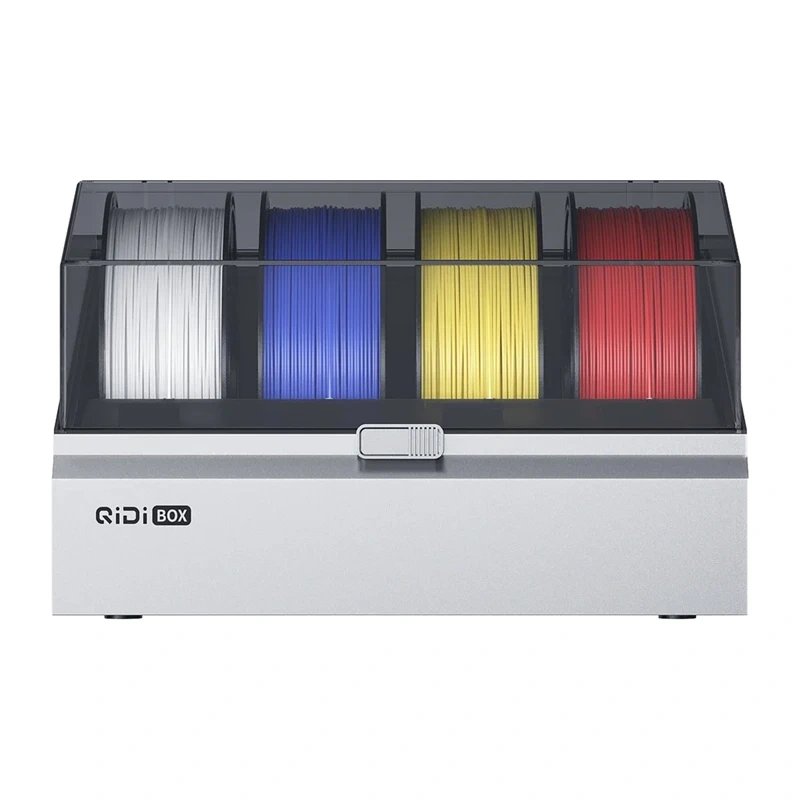

The QIDI Box for the Q2 Series is a 4-channel multi-filament system designed for multi-color 3D printing and multi-material projects. It supports 1.75 mm filaments, automatic spool switching, active drying up to 65°C during printing, and intelligent filament recognition via NFC.
Key Features
- Four independent channels with hardened steel dual gearboxes and 42-type stepper motors
- Simultaneous filament drying up to 65°C during printing with real-time temperature and humidity tracking
- Automatic switch to backup spools and smart detection of tangles, jams, and filament runout
- NFC tag recognition for automated material parameter settings
- Expandable up to 4 units for 16-color or multi-material printing setups
| Manufacturer | QIDI |
|---|---|
| Model | Box |
| Compatibility | Q2 |
| Device dimensions | 357 × 300 × 234 mm |
| Weight | 4.35 kg |
| Housing Material | ABS/PC |
| Number of Channels | 4 |
| Maximum Expansion | Up to 4 QIDI Box units with appropriate accessories |
| Channel Indicators | 4 independent indicator lights |
| Filament Diameter | 1.75 mm |
| Supported printing filaments | PLA, PETG, ABS, ASA, PET, PA, PC, PVA (dried), BVOH (dried), PP, POM, HIPS, TPU 64D, ABS-CF/GF, PLA-CF/GF, PETG-CF/GF, PPS-CF, PET-CF/GF |
| Unsupported filaments | TPE, standard TPU, TPU 95A, QIDI PAHT-CF, damp PVA and BVOH, select Silk materials (including PLA Silk), PLA Glow-in-the-dark, and materials that are excessively stiff or flexible |
| Supported materials during drying | PLA, ABS, ASA, PA, PC, PET, PETG, PPS, PLA Wood |
| Maximum drying temperature | 65°C |
| Simultaneous drying and printing | Yes |
| Airtight filament storage | Yes |
| Temperature and humidity monitoring | Yes |
| NFC/RFID | Yes |
| Filament monitoring | Detection of tangles, jams, and filament shortages |
| Automatic switch to backup spool | Yes |
| Compatible spool width | 50–72 mm |
| Compatible spool diameter | 195–202 mm |
| Power supply | 110 V or 220–240 V AC, 50/60 Hz, depending on regional version |
| Maximum rated power | 245 W |
What is included in the package?
The set includes the QIDI Box for Q2, power cord, 8–4-pin signal cable, BOX Hub signal cable, BOX Hub, 5 PTFE tubes (1000 mm each), 4 desiccant packs, and 2 PTFE tubing clamps.
What spool sizes are compatible with the QIDI Box?
The system accommodates spools with an outer diameter of 195–202 mm and a width between 50 and 72 mm.
Can flexible filaments be used in this system?
Only TPU 64D is supported. Standard flexible filaments such as TPU, TPU 95A, and TPE are not compatible.
