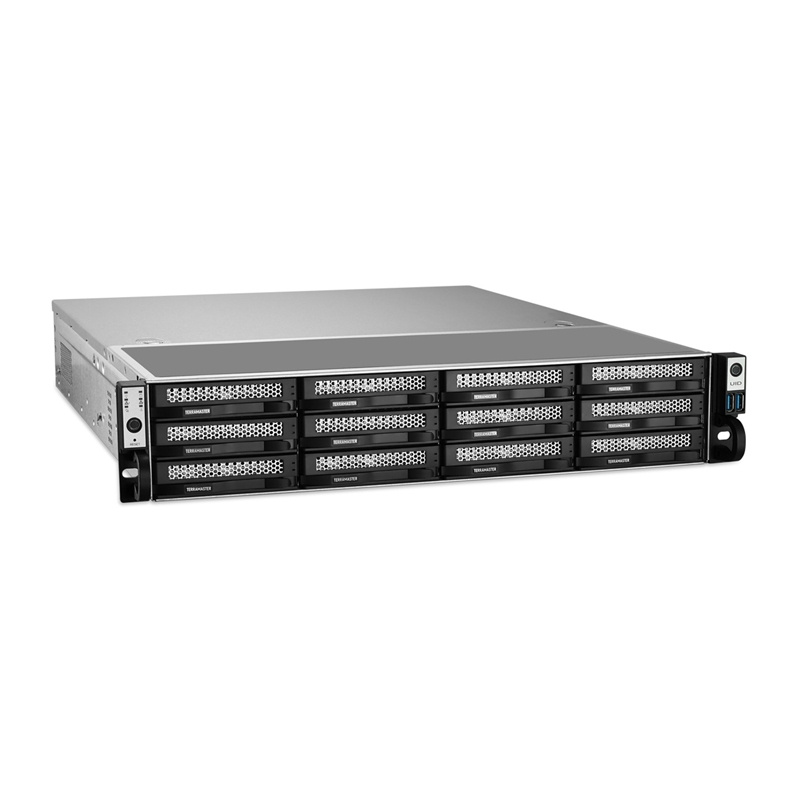

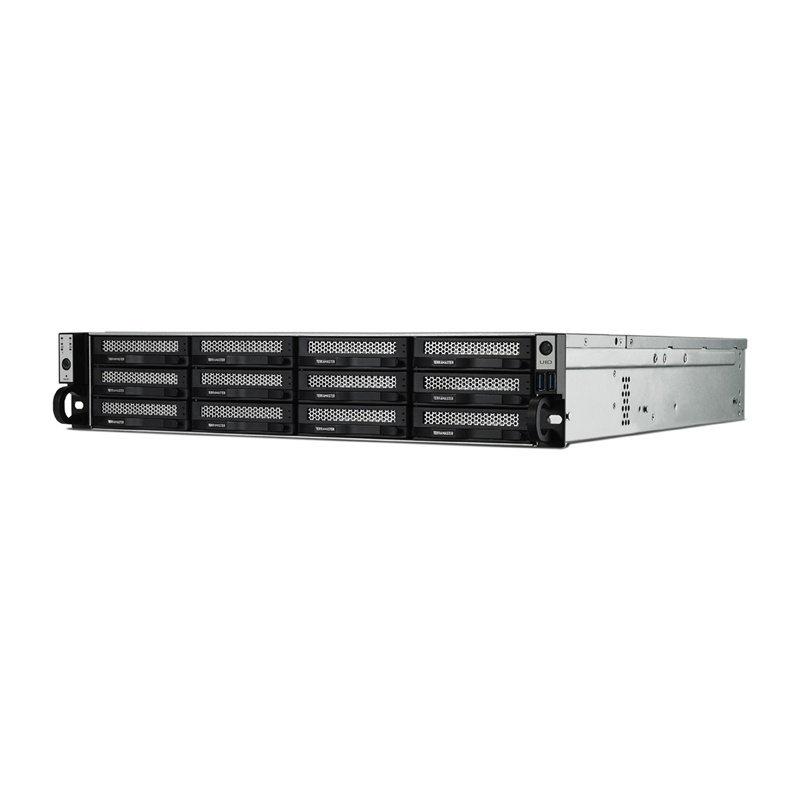

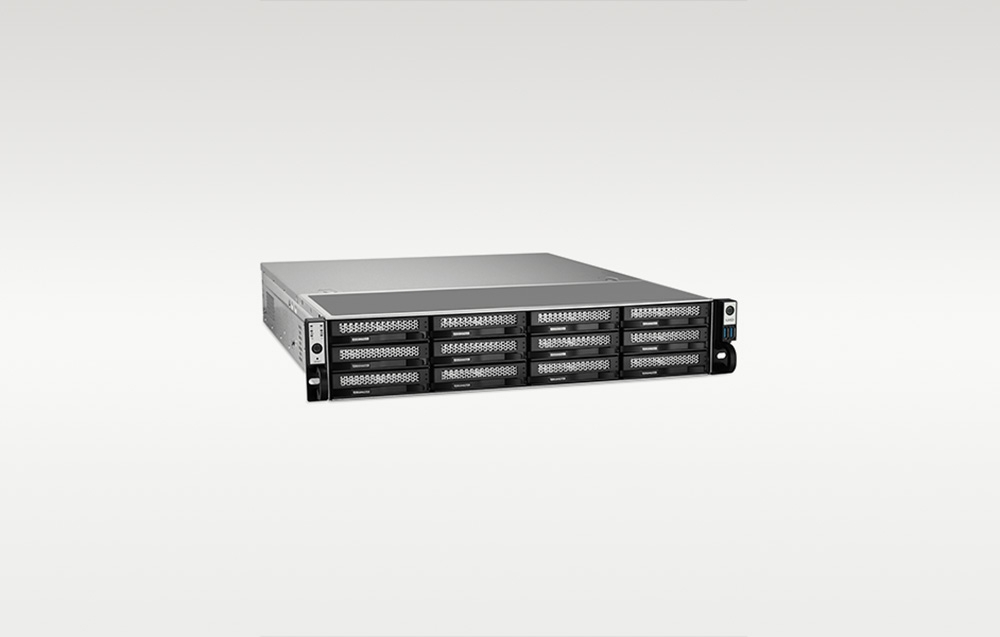

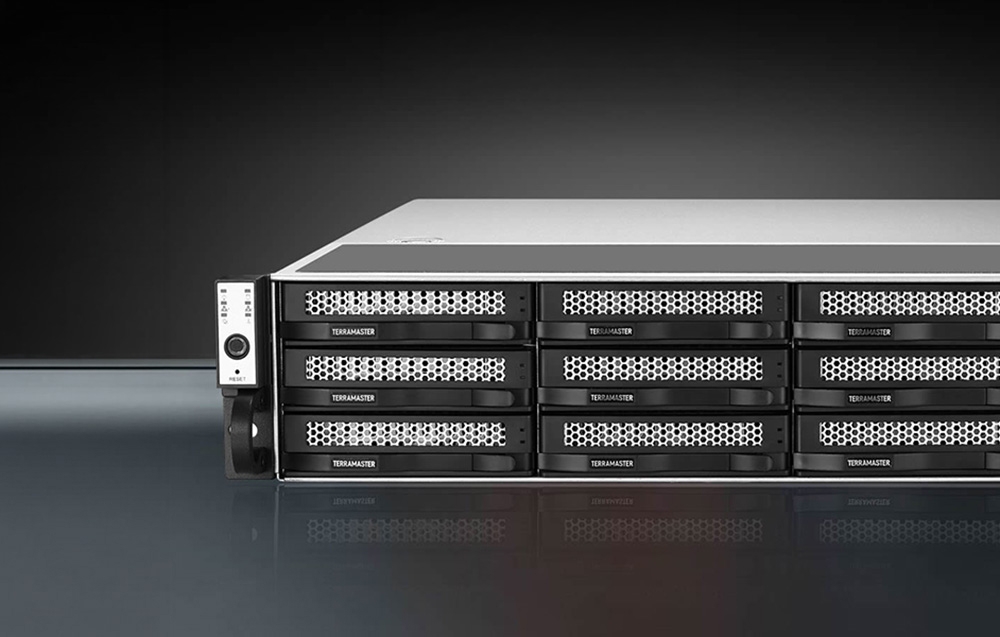

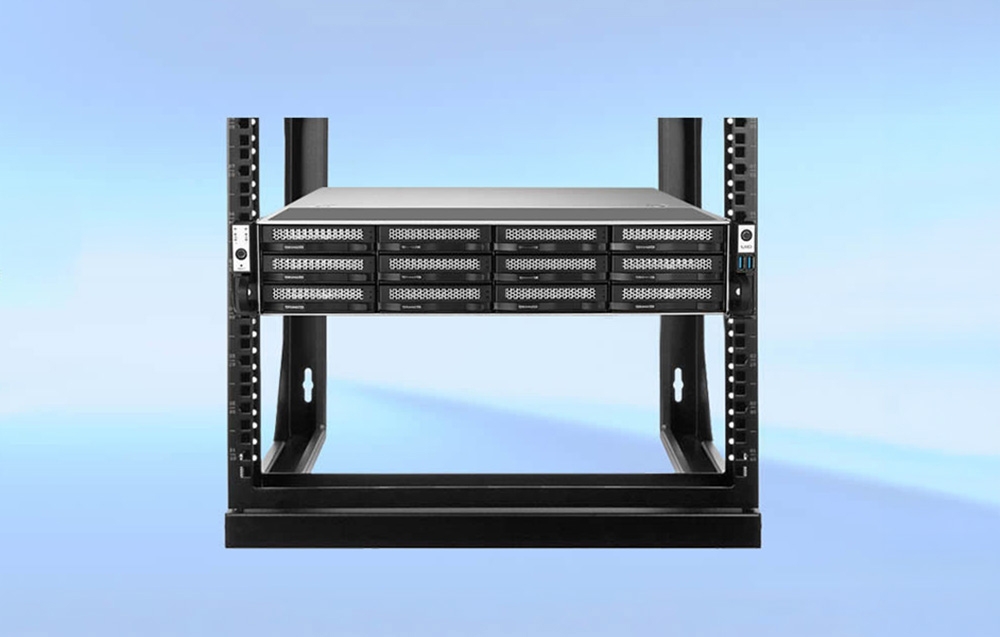

TERRAMASTER U12-500 Plus NAS File Server, Intel Core i7-1255U, 16 GB RAM, 12 bays
Price: 2058.60 €
| Products ID: | 177306 |
|---|---|
| Manufactured by: | Terramaster |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6939236146050 |
Delivery options to:
Choose countryThe TerraMaster U12-500 Plus is a high-performance NAS file server designed for small and medium-sized businesses requiring centralized data storage, backup, and sharing. It is powered by a 10-core Intel Core i7-1255U processor, 16 GB expandable DDR5 RAM, and 12 drive bays supporting up to 264 TB of storage.
Key Features
- 10-core Intel Core i7-1255U processor with 16 GB DDR5 memory, expandable up to 64 GB
- 12 drive bays for 3.5" and 2.5" SATA HDDs/SSDs with hot-swap support
- Dual 10GbE RJ-45 ports with Link Aggregation support for high network throughput
- Two M.2 2280 NVMe PCIe 4.0 slots and one PCIe 3.0 x4 expansion slot
- Integrated Business Backup Suite for centralized backups, snapshots, and cloud sync
- TOS operating system with AES encryption, OTP 2FA, and HyperLock security mechanisms
| Manufacturer | TerraMaster |
|---|---|
| Model | U12-500 Plus |
| Processor | Intel Core i7-1255U |
| Architecture | x86 64-bit |
| Number of cores/threads | 10 cores / 12 threads |
| Maximum clock speed | up to 4.7 GHz |
| RAM | 16 GB DDR5 non-ECC SO-DIMM |
| Maximum RAM | 64 GB DDR5 non-ECC |
| Number of memory slots | 2 |
| Number of Drive Bays | 12 |
| Supported Drives | 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD |
| Maximum Capacity | up to 264 TB (12 × 22 TB) |
| Hot-swap support | Yes |
| M.2 NVMe slots | 2 × M.2 2280 PCIe 4.0 x4 |
| Network ports | 2 × 10GbE RJ-45 |
| USB ports | 3 × USB 3.1 Type-A (10 Gb/s), 1 × USB-C (10 Gb/s) |
| HDMI | 1 |
| Expansion slot | 1 × PCIe 3.0 x4 |
| Supported RAID | TRAID, TRAID+, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| File System | Btrfs, EXT4 |
| Dimensions | 88 × 440 × 550 mm |
| Weight | 16 kg |
| Power supply | 500 W |
| Noise level | 39 dB(A) |
| Operating system | TOS |
What is the maximum storage capacity supported by this server?
The TerraMaster U12-500 Plus supports a total storage capacity of up to 264 TB using twelve 22 TB drives.
What items are included in the package?
The package includes the TerraMaster U12-500 Plus NAS server, a power cord, an RJ-45 network cable, a quick start guide, a warranty document, and a set of mounting screws for drive and device installation.
Can the system memory be upgraded?
Yes, while the server comes with 16 GB DDR5 SO-DIMM RAM, it features two memory slots allowing expansion up to 64 GB DDR5.
