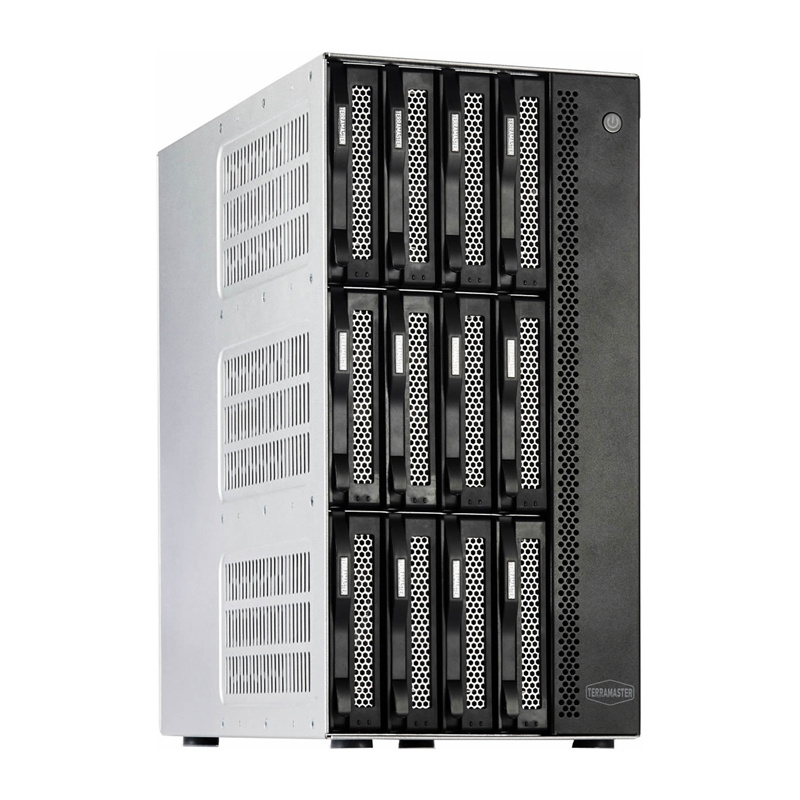

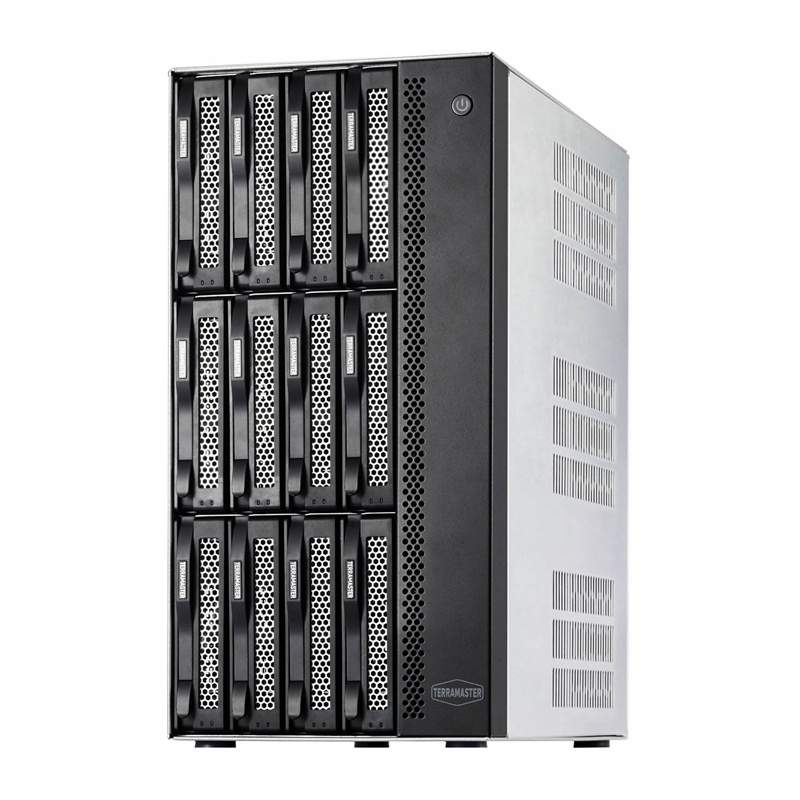

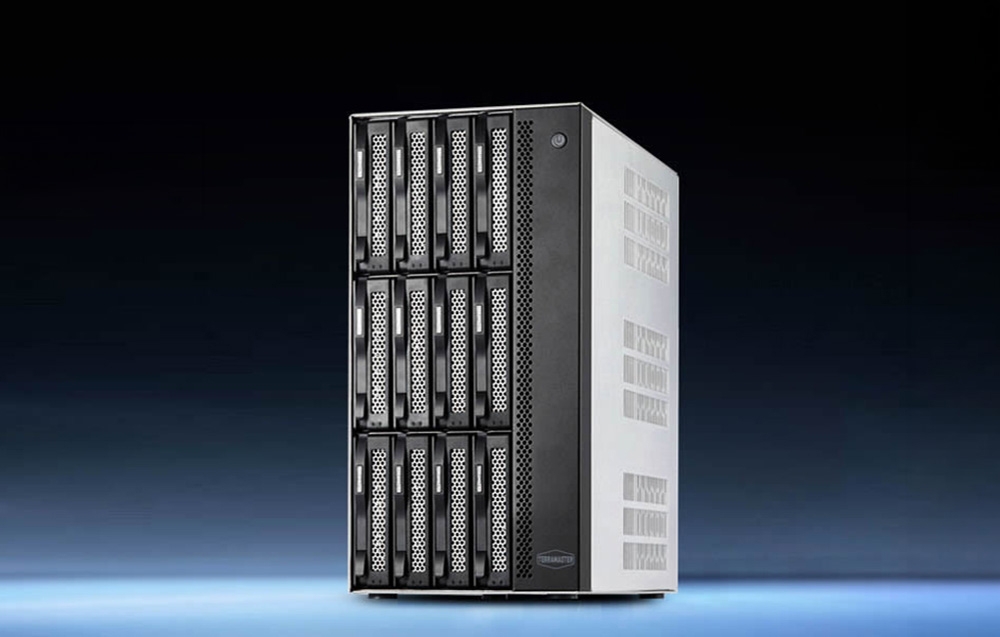

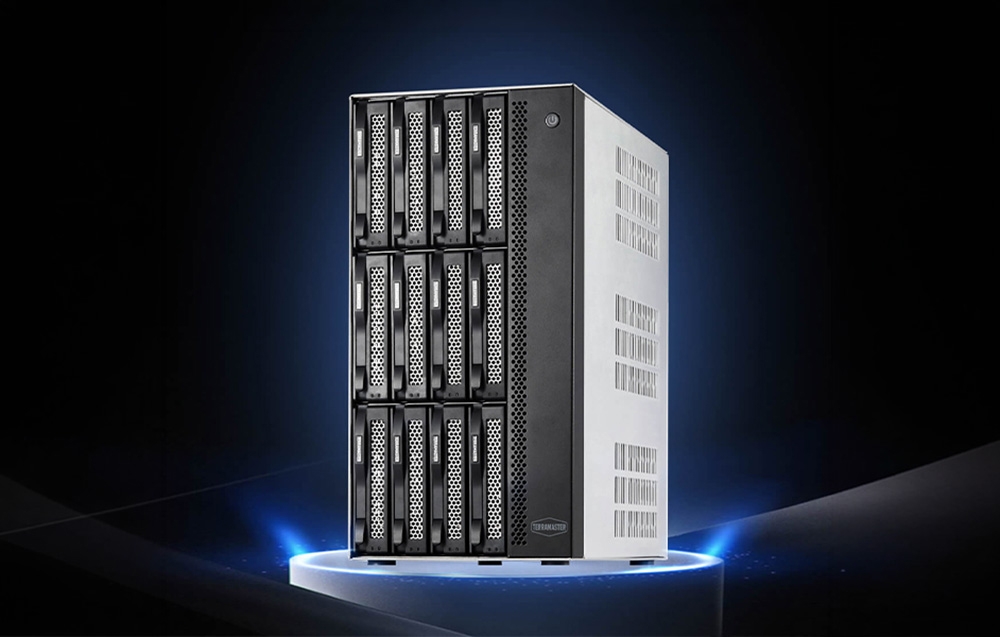

TerraMaster T12-500 Pro 12-Bay NAS Server, Intel Core i7-1255U, 16GB RAM, 2x 10GbE

TerraMaster T12-500 Pro 12-Bay NAS Server, Intel Core i7-1255U, 16GB RAM, 2x 10GbE — image 3

TerraMaster T12-500 Pro 12-Bay NAS Server, Intel Core i7-1255U, 16GB RAM, 2x 10GbE — image 4

TerraMaster T12-500 Pro 12-Bay NAS Server, Intel Core i7-1255U, 16GB RAM, 2x 10GbE — image 5

Price: 2145.50 €

Products ID:	177304
Manufactured by:	Terramaster
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6939236145329

Delivery options to:

Choose country

TerraMaster T12-500 Pro 12-Bay NAS Server, Intel Core i7-1255U, 16GB RAM, 2x 10GbE

The TerraMaster T12-500 Pro is a 12-bay NAS file server equipped with a 10-core Intel Core i7-1255U processor and 16 GB of DDR5 memory, expandable up to 64 GB. It supports up to 288 TB of raw storage capacity and provides fast network connectivity via dual 10GbE ports alongside two M.2 NVMe PCIe 4.0 slots for SSD caching.

Key Features

10-core Intel Core i7-1255U processor with boost clocks up to 4.7 GHz
16 GB DDR5 RAM, expandable up to 64 GB via two SODIMM slots
12 SATA drive bays supporting hot-swap and up to 288 TB capacity
Dual 10GbE network ports with link aggregation support
Dual M.2 2280 NVMe PCIe 4.0 slots for SSD cache acceleration
Business Backup Suite and Snapshot capability for comprehensive data protection

Manufacturer	TerraMaster
Model	T12-500 Pro
Processor	Intel Core i7-1255U
Processor architecture	x86 64-bit
Number of cores/threads	10 cores / 12 threads
Maximum clock speed	up to 4.7 GHz
RAM	16 GB DDR5 non-ECC SODIMM
Maximum supported RAM	64 GB DDR5
Number of memory slots	2 × DDR5 SODIMM
Number of drive bays	12
Supported drives	3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
Maximum capacity	up to 288 TB (12 × 24 TB)
Hot Swap	Yes
M.2 slots	2 × M.2 2280 NVMe PCIe 4.0 x4
Supported internal file systems	Btrfs, EXT4
Supported external file systems	EXT3, EXT4, NTFS, FAT32, HFS+, Btrfs

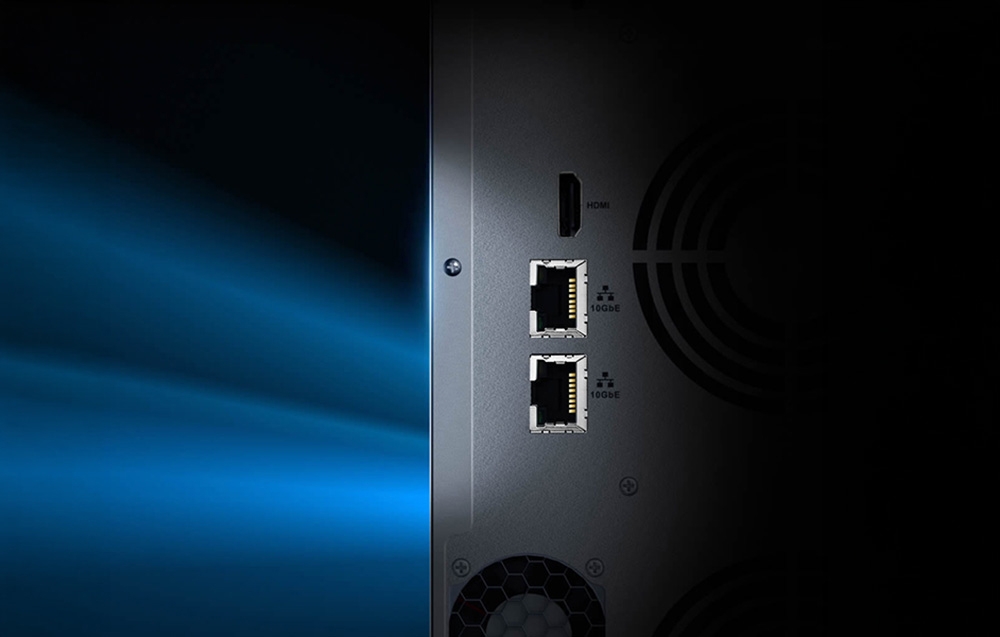

Network ports	2 × RJ-45 10GbE
USB ports	3 × USB 3.1 Type-A (10 Gb/s), 1 × USB 3.1 Type-C (10 Gb/s)
Video output	HDMI
Supported RAID configurations	TRAID, TRAID+, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Hardware transcoding	H.264, H.265, MPEG-4, VC-1
Maximum number of concurrent SMB/AFP/FTP/SFTP connections	512
Noise level	24.5 dB(A)
Power supply	500 W
Dimensions	334 × 165 × 295 mm
Net weight	7.9 kg
Operating temperature	0°C – 40°C

What is the maximum storage capacity supported by the T12-500 Pro?

The server supports up to 288 TB of raw storage when using twelve 24 TB drives.

Can the system memory be upgraded?

Yes, the server includes two DDR5 SODIMM slots and can be upgraded from 16 GB up to 64 GB of RAM.

What items are included in the package?

The package includes the TerraMaster T12-500 Pro NAS server, power cord, RJ-45 network cable, quick start guide, warranty information, and a set of mounting screws.
