TerraMaster F4 SSD NAS File Server Intel N95 8GB RAM 4 bays 5GbE

TerraMaster F4 SSD NAS File Server Intel N95 8GB RAM 4 bays 5GbE — image 3

TerraMaster F4 SSD NAS File Server Intel N95 8GB RAM 4 bays 5GbE — image 4

TerraMaster F4 SSD NAS File Server Intel N95 8GB RAM 4 bays 5GbE — image 5

Price: 517.60 €

Products ID:	177524
Manufactured by:	Terramaster
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6939236147170

Delivery options to:

Choose country

The TerraMaster F4 SSD is a compact all-flash NAS file server powered by an Intel N95 processor, 8 GB of DDR5 memory, and four M.2 2280 NVMe SSD slots for fast and quiet data storage.

Key Features

Performance: Intel N95 quad-core processor clocked up to 3.4 GHz and 8 GB DDR5 SODIMM RAM, expandable up to 32 GB.
All-Flash Design: 4 M.2 NVMe SSD bays support up to 32 TB total storage with quiet 19 dB(A) operation.

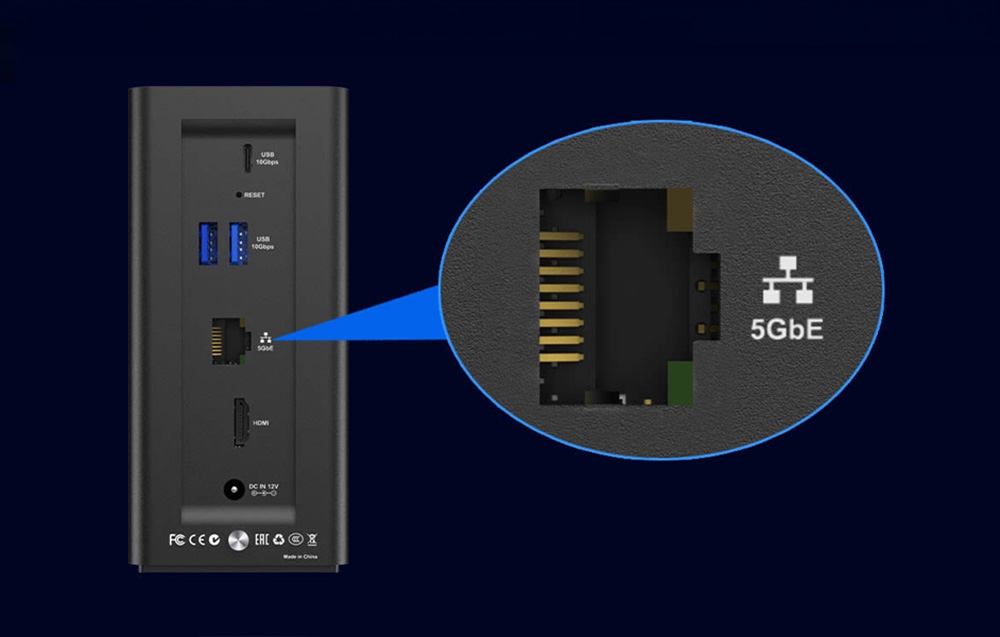

High-Speed Networking: 5GbE RJ-45 port provides fast data transfers, quick backups, and low latency.
Media Transcoding: Hardware 4K H.264/H.265 video decoding and transcoding with HDMI 2.0b output.
Data Protection: Comprehensive backup tools, cloud synchronization, hardware encryption, and TRAID/RAID support.

Manufacturer	TerraMaster
Model	F4 SSD
Device type	All-Flash NAS server
Processor	Intel N95, 4 cores / 4 threads
Processor clock speed	up to 3.4 GHz
Architecture	x86 64-bit
RAM	8 GB DDR5 non-ECC SODIMM
Maximum supported RAM	32 GB DDR5 non-ECC SODIMM
Number of memory slots	1 × DDR5 SODIMM
Drive slots	4 × M.2 2280 NVMe SSD
M.2 Interfaces	2 × PCIe 3.0 x2, 2 × PCIe 3.0 x1
Maximum Storage Capacity	up to 32 TB (4 × 8 TB)
Supported internal file systems	Btrfs, EXT4
Supported external file systems	EXT3, EXT4, NTFS, FAT32, HFS+, Btrfs
Network port	1 × RJ-45 5GbE
USB ports	2 × USB 3.2 Gen 2 Type-A (10 Gb/s), 1 × USB 3.2 Gen 2 Type-C (10 Gb/s)
Video output	1 × HDMI 2.0b
Hardware decoding/transcoding	H.264, H.265, MPEG-4, VC-1
Max. resolution	4K (4096 × 2160) at up to 60 FPS
Supported RAID levels	TRAID, TRAID+, JBOD, Single, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Maximum number of user accounts	128
Supported protocols	SMB/CIFS, AFP, NFS, FTP, SFTP, WebDAV, HTTPS, SSH, iSCSI
Noise level	19 dB(A)
Power Supply	48 W
Dimensions	138 × 60 × 140 mm
Weight	0.6 kg

What storage drives does the TerraMaster F4 SSD support?

It supports up to four M.2 2280 NVMe SSDs, providing a total storage capacity of up to 32 TB (4 × 8 TB).

What is included in the package?

The package includes the TerraMaster F4 SSD NAS server, AC power adapter, power cord, RJ-45 network cable, quick start guide, warranty information, and a set of mounting screws.
