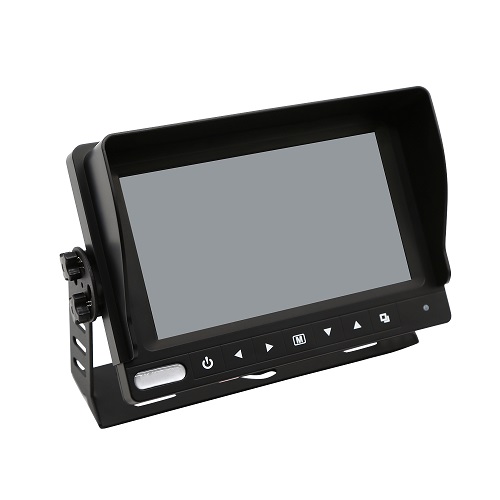

Waterproof 7" TFT-LCD Vehicle CCTV Monitor IP69k
213.80 €
Hismart
Products ID: 170519
In supplier warehouse
Available to order: 1 pcs.
Delivery Time 5–10 business days
Delivery options to:

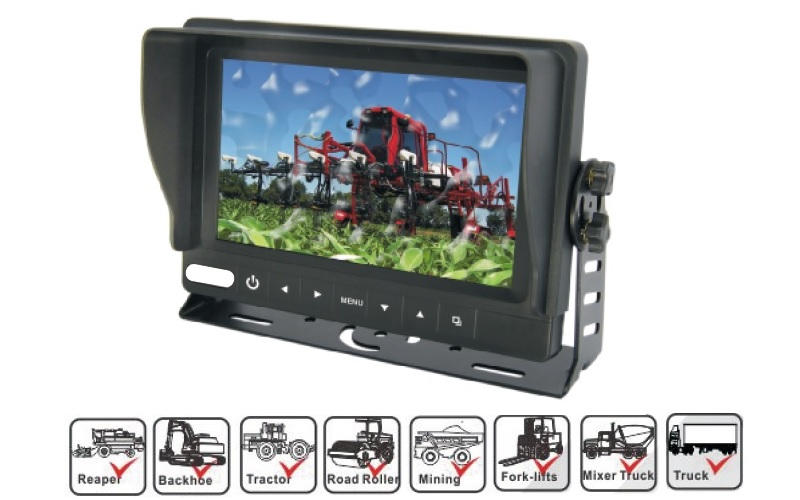

Choose countryThis waterproof 7-inch TFT-LCD colour monitor is engineered for vehicle monitoring and industrial CCTV applications in demanding environments.
Key Features
- IP69k waterproof and pressure-resistant protection for harsh conditions
- RGB 800x480 resolution and 400 cd/m2 brightness display
- Dual-channel CVBS video input supporting PAL and NTSC formats
- ABS shell with aluminium alloy heat dissipation and integrated sun visor
- Built-in protection against load dump, overvoltage, short circuit, and reverse polarity
- Wide operating voltage range of DC 11-32V
| Screen Size | 7" |
|---|---|
| Display Type | TFT-LCD |
| Resolution | 800 x 480 px |
| Active Display Size | 153.6 x 86.6 mm |
| Brightness | 400 cd/m2 |
| Contrast Ratio | 500:1 |
| Response Time | 25 ms |
| Video Input | 2 channels (CVBS, PAL/NTSC) |
| Processor | Techwell |
| Power Supply | DC 11-32V |
| Power Consumption | Max. 5W |
| Protection Rating | IP69k |
| Housing Material | ABS plastic, aluminium alloy |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C ~ +80°C |

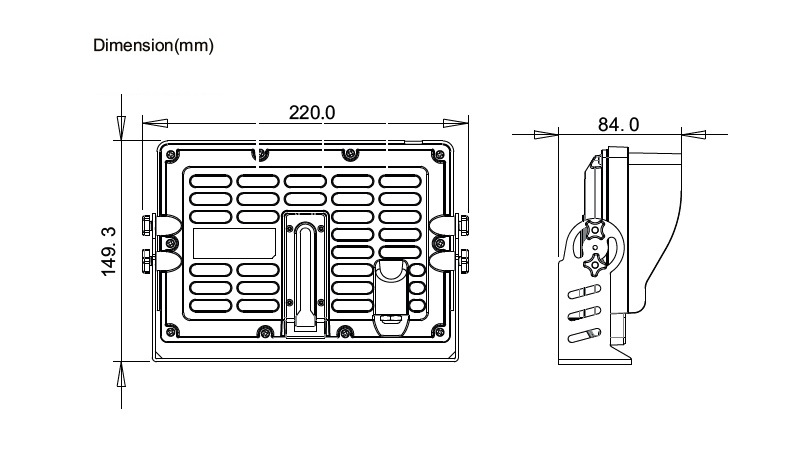

| Dimensions | 220 x 149 x 84 mm |
| Weight | 700 g |
| EAN | 9990000991976 |
|---|
How many cameras can be connected to this monitor?
The monitor supports 2-channel CVBS camera signal inputs.
What is the operating voltage range for this monitor?
The monitor operates on a DC power supply ranging from 11V to 32V.
What is the ingress protection level of the device?
It is rated IP69k for waterproof and pressure resistance.
