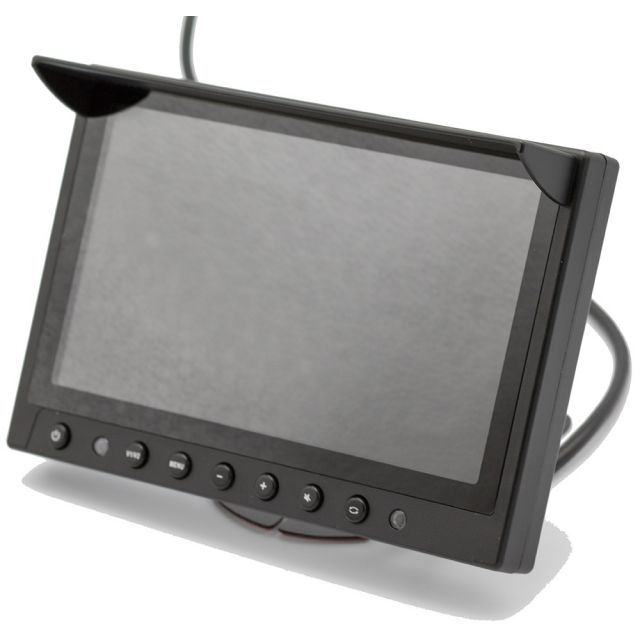

Dahua 7" TFT-LCD Monitor with M12 A-Coding Connector
Price: 64.70 €
| Products ID: | 172331 |
|---|---|
| Manufactured by: | Dahua Technology Co., Ltd |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 4775342532422 |
Delivery options to:
Choose countryDahua 7-inch widescreen color TFT-LCD monitor with LED backlight and M12 A-coding connectivity.
Key Features
- 7-inch widescreen TFT-LCD panel with 800 x 3 (RDB) x 480 resolution
- LED backlight with 350 cd/m² brightness and 500:1 contrast ratio
- M12 A-coding connector
- Wide operating voltage range of 6 VDC to 36 VDC (< 7.5 W)
- Operating temperature range from -10°C to 60°C
| Display Size | 7" |
|---|---|
| Panel Type | TFT-LCD |
| Backlight | LED |
| Resolution | 800 x 3 (RDB) x 480 |
| Connection Type | M12 A-coding |
| Brightness | 350 cd/m² |
| Contrast Ratio | 500:1 |
| Field Frequency | 50 Hz, 60 Hz, 75 Hz |
| Effective Display Area | 154.08 mm x 85.92 mm (6.07 in. x 3.38 in.) |
| Dimensions (L x W x H) | 198.37 mm x 138.70 mm x 25.70 mm (7.81 in. x 5.46 in. x 1.01 in.) |
| Power | 6 VDC to 36 VDC, < 7.5 W |
| Working Temperature | -10° C to 60° C (14° F to +140° F) |
What connector type does this monitor use?
This monitor features an M12 A-coding connector.
What is the operating voltage range?
The monitor operates on 6 VDC to 36 VDC with power consumption under 7.5 W.
