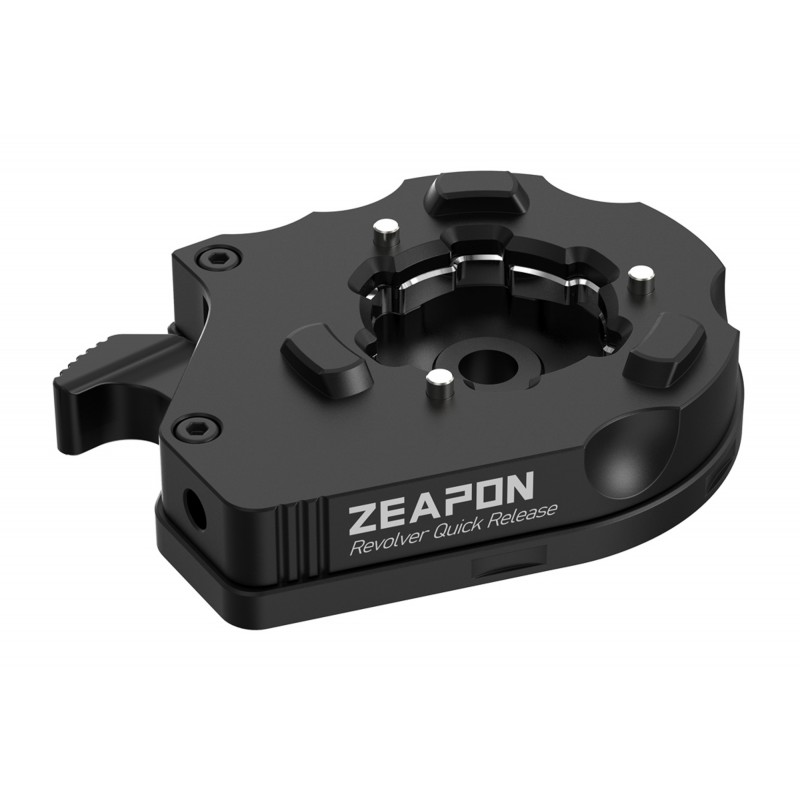

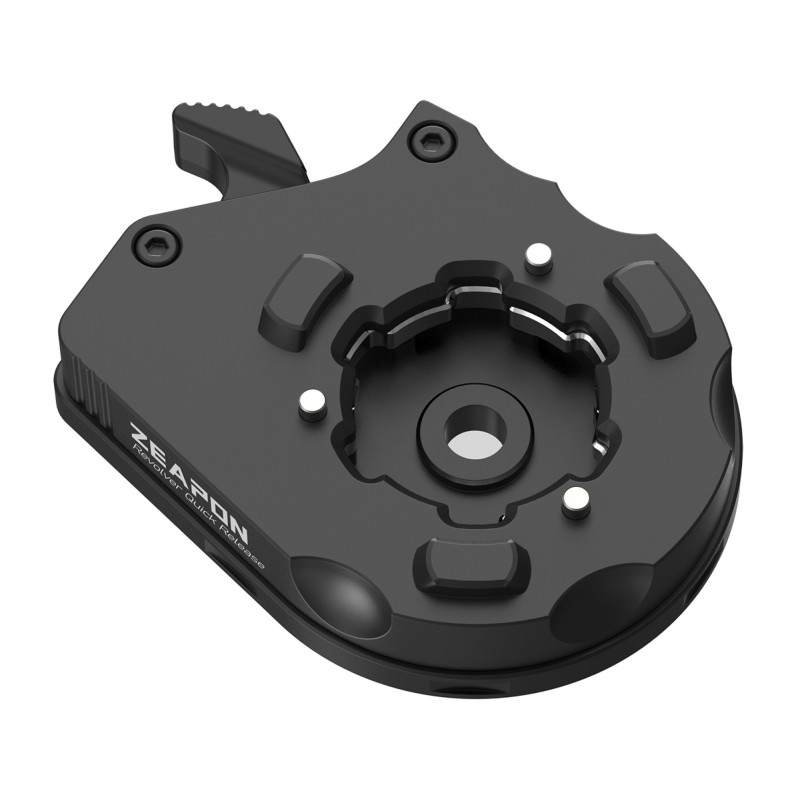

Zeapon Revolver Quick Release Socket Adapter, 3/8" Thread
The Zeapon Revolver Quick Release Socket adapter is the base component of a fast-mounting camera system designed for quick and secure camera setup across various production gear.
Versatile Mounting System

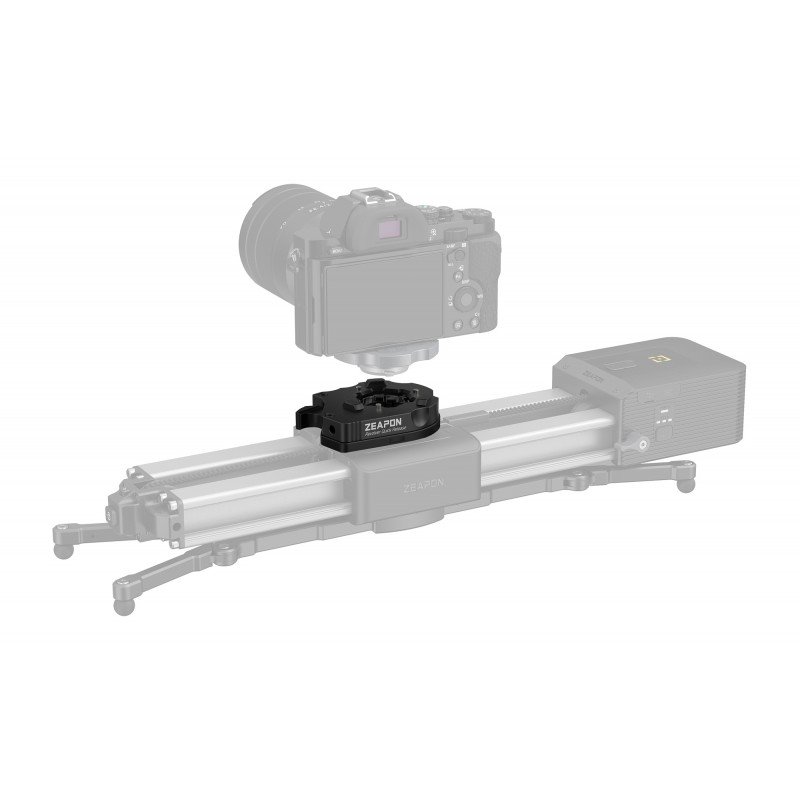

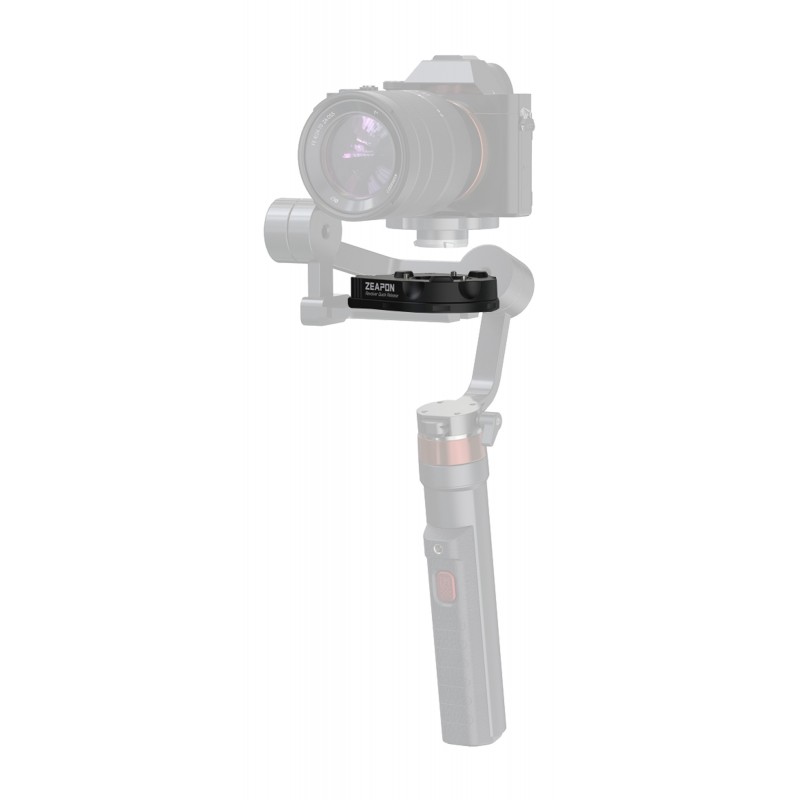

Featuring a standard 3/8" female thread, the socket installs directly onto tripods, monopods, sliders, tripod heads, gimbals, and motion control devices. With a load capacity of up to 10 kg, it reliably holds heavier cameras with substantial lenses.
Multidirectional Locking Mechanism

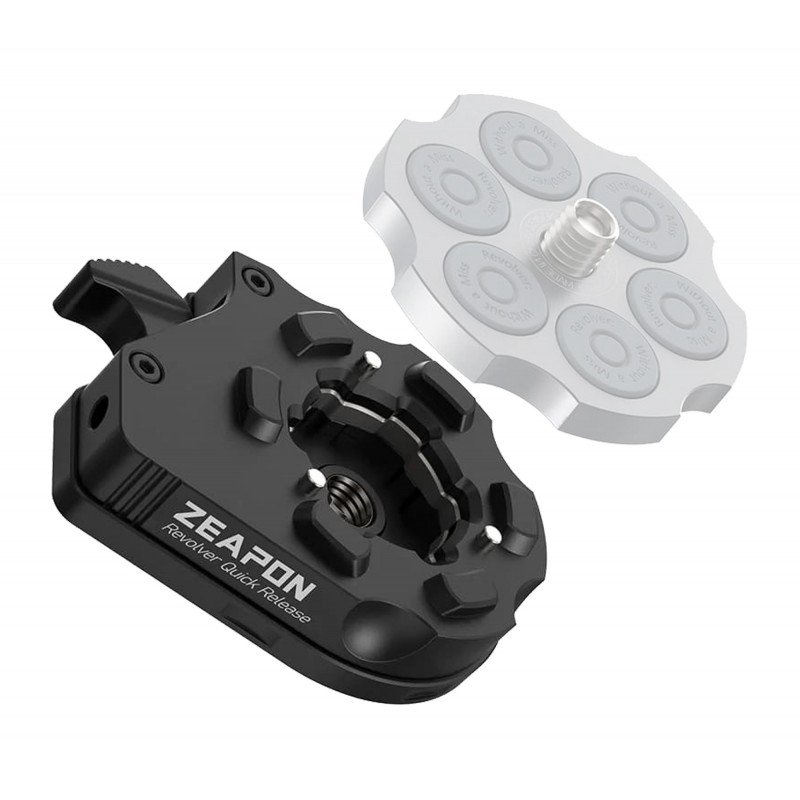

Designed to pair with the Zeapon Revolver Quick Release Pin plate, this adapter allows the plate to be inserted in 6 different orientations. It incorporates an instant push-button release and an emergency unlocking adjustment point that can be operated using a screwdriver.
Durable Construction
Manufactured from aluminium alloy, stainless steel, and silicone, the adapter features sandblasted and anodised surface treatment for enhanced structural strength and longevity.
| Model | Zeapon Revolver Quick Release Socket |
|---|---|
| Compatible board | Zeapon Revolver Quick Release Pin |
| Material | Aluminium alloy / stainless steel / silicon |
| Dimensions | 21 x 63 x 85 mm |
| Weight | 180 g |
| Lifting capacity | 10 kg |
| Mounting thread | 3/8" female |
| EAN | 6970684670346 |
|---|
What is included in the package?
The package contains the Zeapon Revolver Quick Release Socket adapter. The matching Zeapon Revolver Quick Release Pin plate is sold separately or as part of a handle kit.
What is the maximum payload capacity?
The adapter supports a lifting capacity of up to 10 kg.
How is the socket mounted to equipment?
It attaches to tripods, sliders, gimbals, and heads via a female 3/8" mounting thread.
