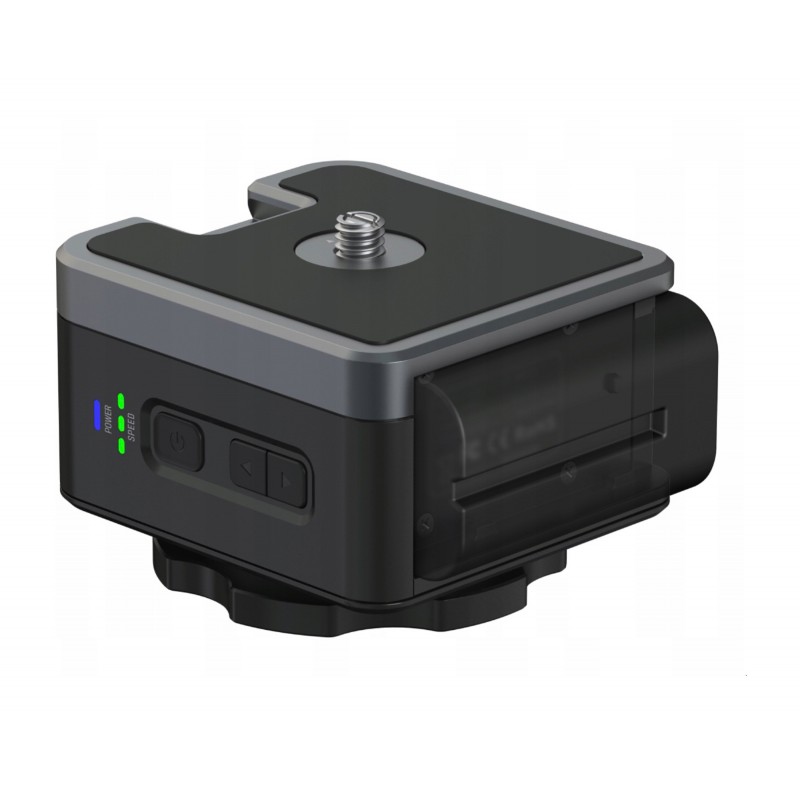

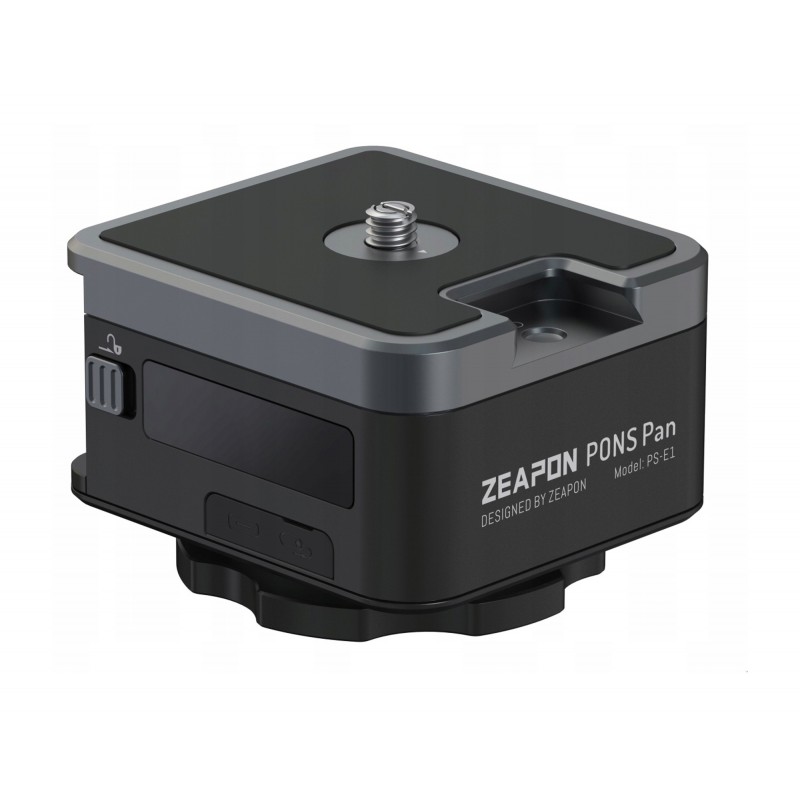

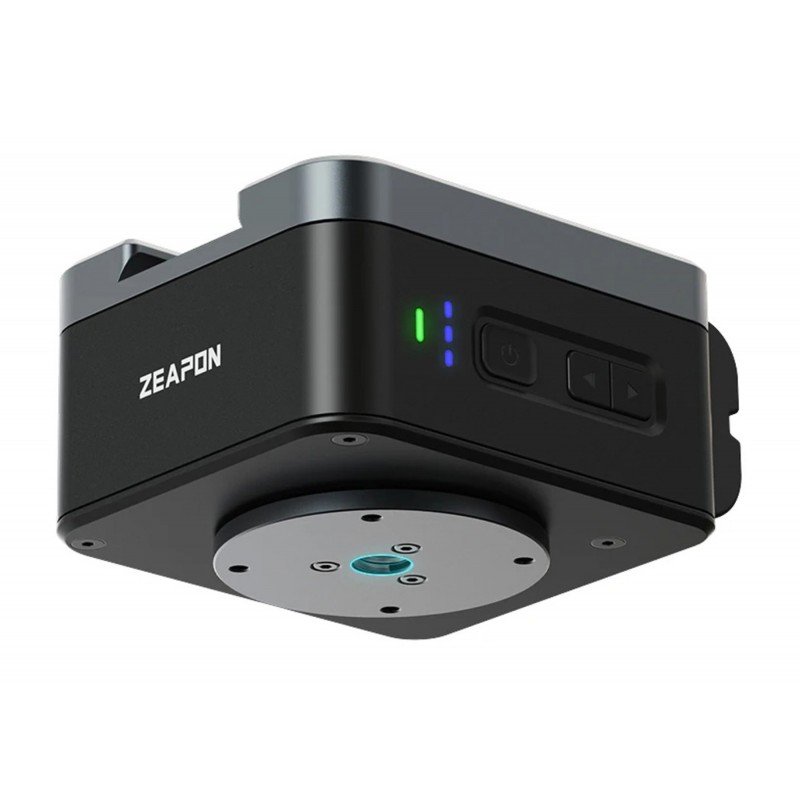

Motorized Pan Head Zeapon Pons

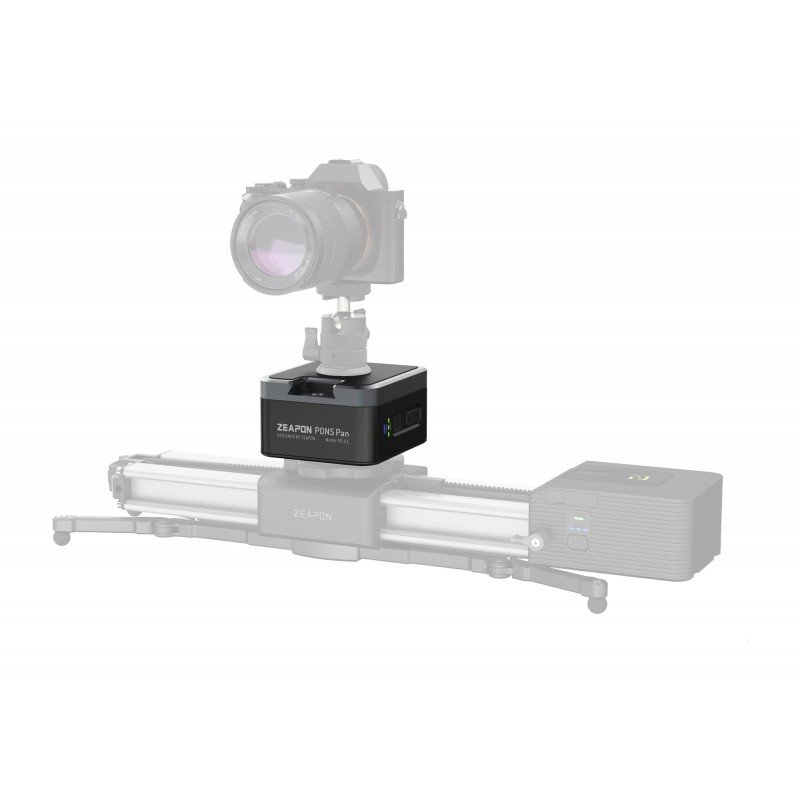

The Zeapon Pons Motorised Pan Head automates 360º horizontal camera movement for smooth video capture, panoramic photography, and product filming. It functions as an independent unit or pairs with the Zeapon Micro 2 Plus slider, arm kits, and additional Pons modules to build a multi-axis motion control setup.
Precise Movement and Product Photography
Users can program up to 6 positions in a single movement sequence and select custom rotation speeds. The unit features an integrated 2-in-1 male thread adapter (1/4" and 3/8") that fully retracts into the housing, transforming the flat top into a 360º rotating turntable suitable for product shoots.
Controls and Power Integration

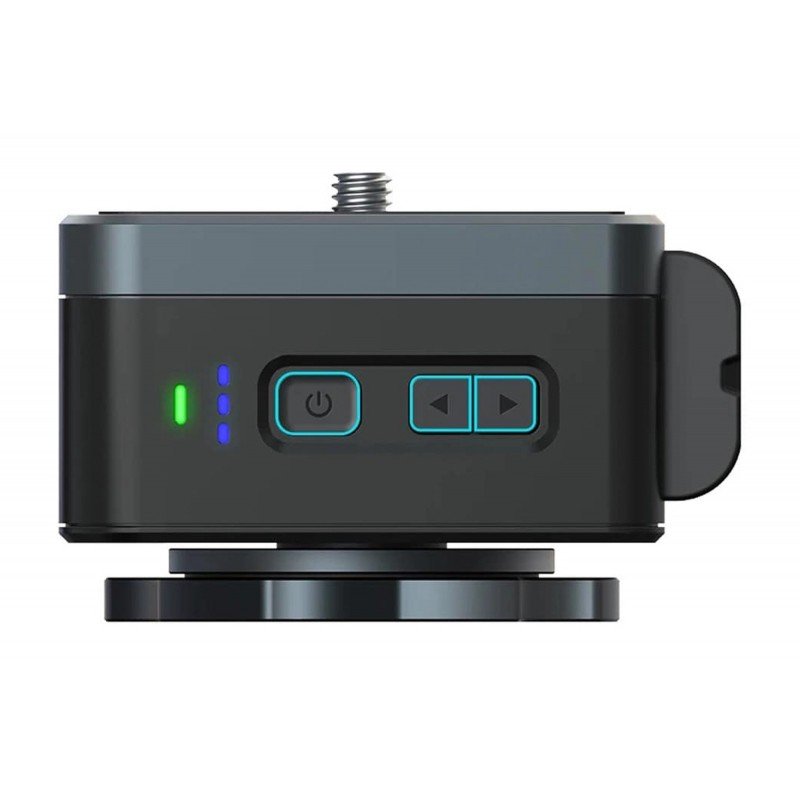

- Onboard physical buttons for real-time motion control or direct position programming
- Bluetooth connectivity with the free Zeapon Lab app (iOS and Android) for automated timelapse sequences
- Quiet motor operation generating a maximum noise level of 39 dB
- Compatible with standard NP-F series batteries with secure locking mechanism
- USB-C port with Power Delivery protocol support and 2.5 mm shutter release interface
| Model | Zeapon Pons Motorised Pan Head |
|---|---|
| Input | 5 V / 2 A |
| Mobile application | Zeapon Lab (iOS / Android) |
| Communication | Bluetooth |
| Max load capacity in vertical position | 4 kg |
| Max load capacity in horizontal position | 50 kg |
| Average head rotation speed | 9º per second (full rotation: 40 s) |
| Minimum head rotation speed | 4º per second (full rotation: 90 s) |
| Power supply | NP-F batteries, charging via USB-C (Power Delivery protocol) |
| Operating time with NP-F550 battery | 3 h |
| Operating time with NP-F750 battery | 6 h |
| Operating time with NP-F970 battery | 12 h |
| Dimensions | 86 x 95 x 64 mm |
| Weight | 831 g |
| EAN | 6970684670322 |
|---|
What is included in the package?
The kit includes the Zeapon Pons Motorised Pan Head only.
What is the maximum load capacity?
The head supports a maximum load of up to 50 kg in the horizontal position and up to 4 kg in the vertical position.
Which power sources can be used?
It runs on NP-F series batteries (such as NP-F550, NP-F750, or NP-F970) and supports charging via a USB-C Power Delivery connection.
