Stabila TECH 196M DL electronic magnetic spirit level, 122 cm
Delivery options to:

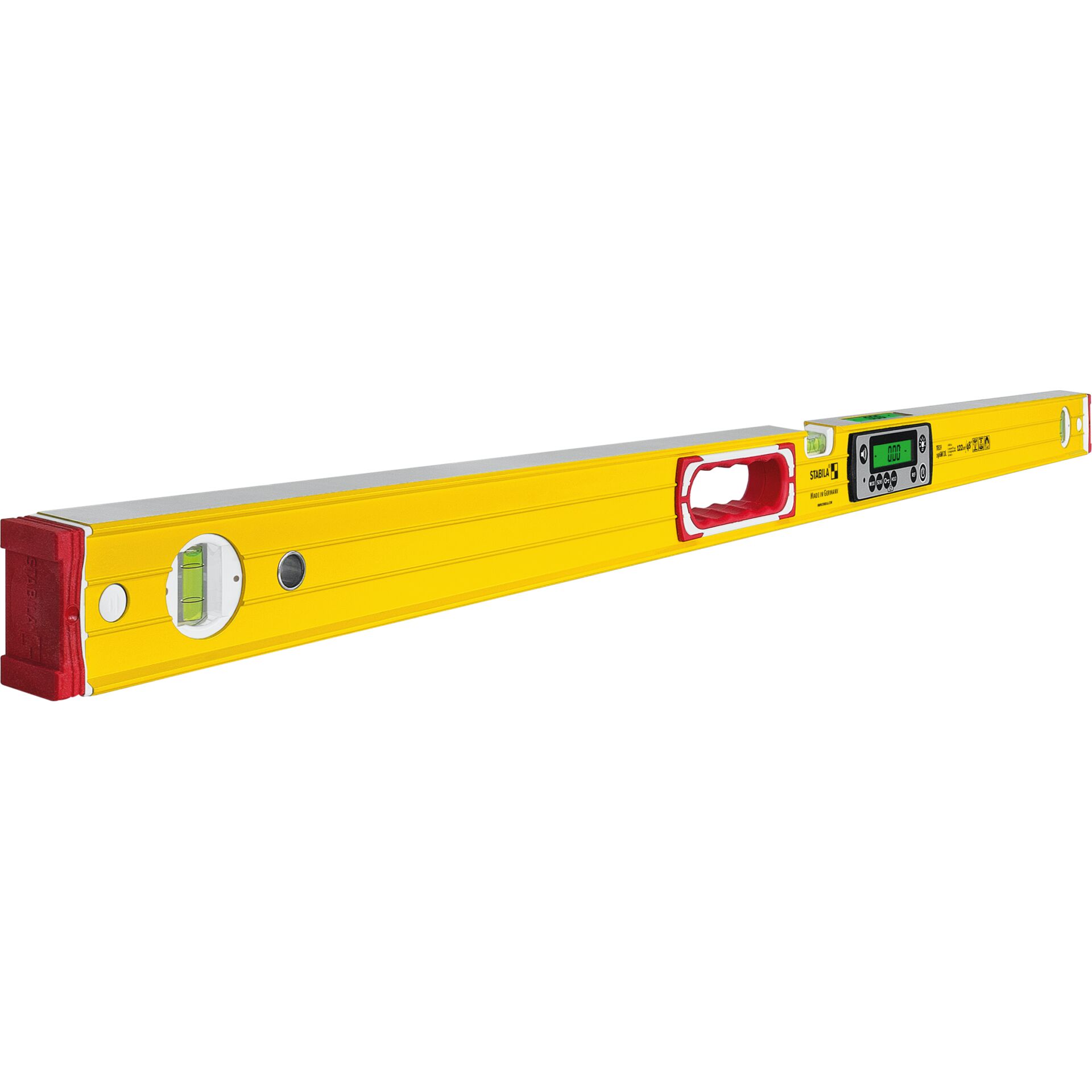

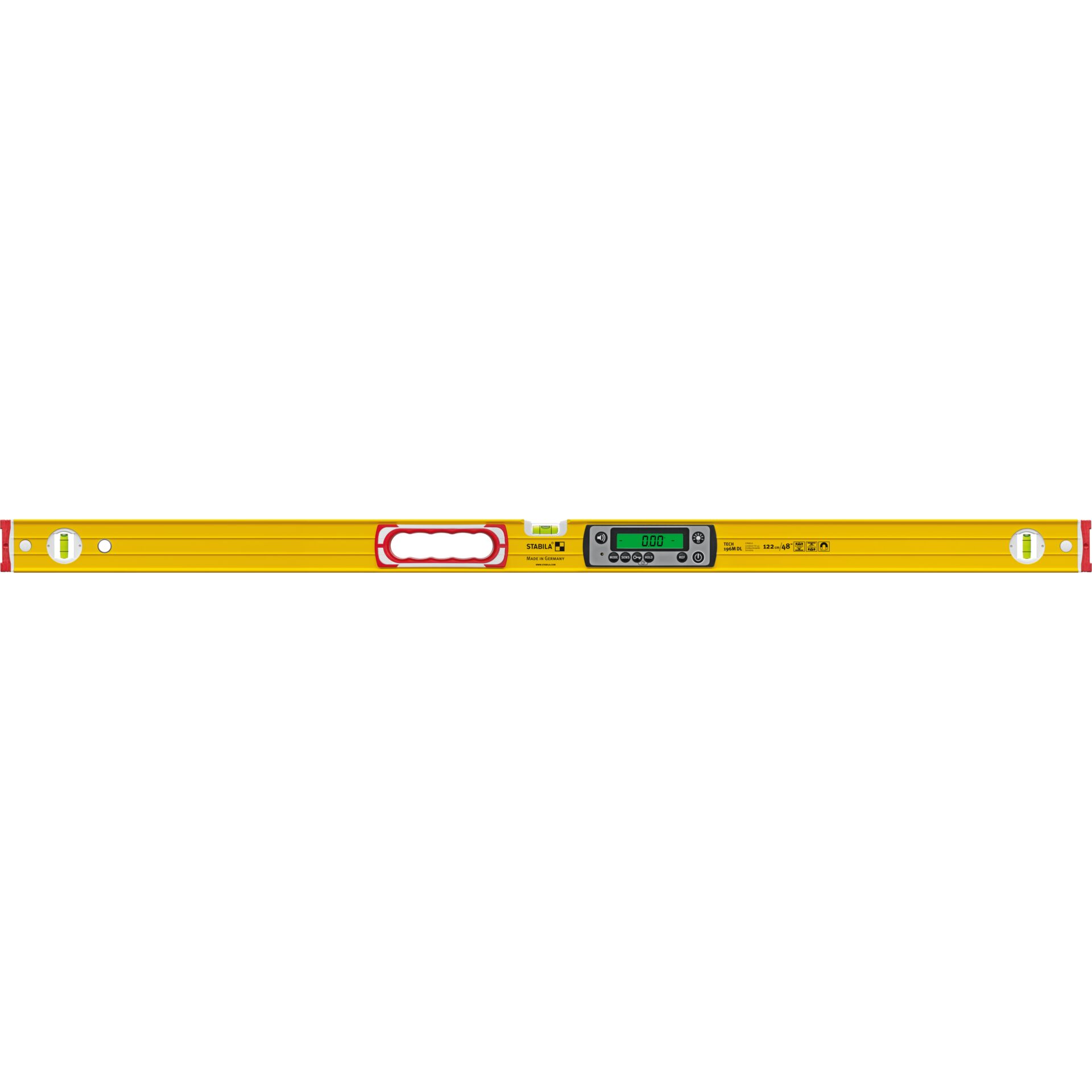

Choose countryThe Stabila TECH 196M DL is a 122 cm electronic spirit level for measuring inclines and gradients. Its rare-earth magnetic system holds the instrument on metal surfaces, while the reinforced aluminium profile is suited to daily building-site use.
Reading and alignment
Two digital displays show measurements without delay. Button-operated illumination helps in poor light, and the readout rotates automatically in the reverse position. Different display modes accommodate different measurement requirements. Acoustic guidance helps with alignment without constantly watching the display. Electronic inclination measurement accuracy at 0° and 90° is ± 0.05°.
Measurement functions
- CAL-FREE: eliminates the need for calibration during daily use.
- REF-MODE: allows angles to be measured, stored and transferred.
- KEY-LOCK: protects against accidental input while working.
Construction and contents
The level has two measuring surfaces and removable, shock-absorbing end caps with an anti-slip stopper. IP67 protection supports work in dusty and damp environments. Battery operating time is up to 400 h. A spirit level bag and 2 AA batteries are included.
| Measurement accuracy in normal position | ± 0.50 mm/m |
|---|---|
| Measurement accuracy in reverse position | ± 0.50 mm/m |
| Electronic inclination measurement accuracy at 0° and 90° | ± 0.05° |
| Electronic inclination measurement accuracy from 1° to 89° | ± 0.10° |
| Number of measuring surfaces | 2 |
| Magnetic system | Rare-earth magnet |
| End caps | Removable, shock-absorbing, with anti-slip stopper |
| Profile | Rectangular aluminium profile with reinforcing ribs |
| Operating time | Up to 400 h |
| Protection rating | IP67 |
| Battery type | AA (Mignon) |
| Length | 122 cm |
| Display | Yes |
| Number of measuring points | 2 |
| Power supply | Batteries |
| Type | Spirit level |
| Colour | Yellow |
| EAN | 4005069203108 |
|---|
What is included?

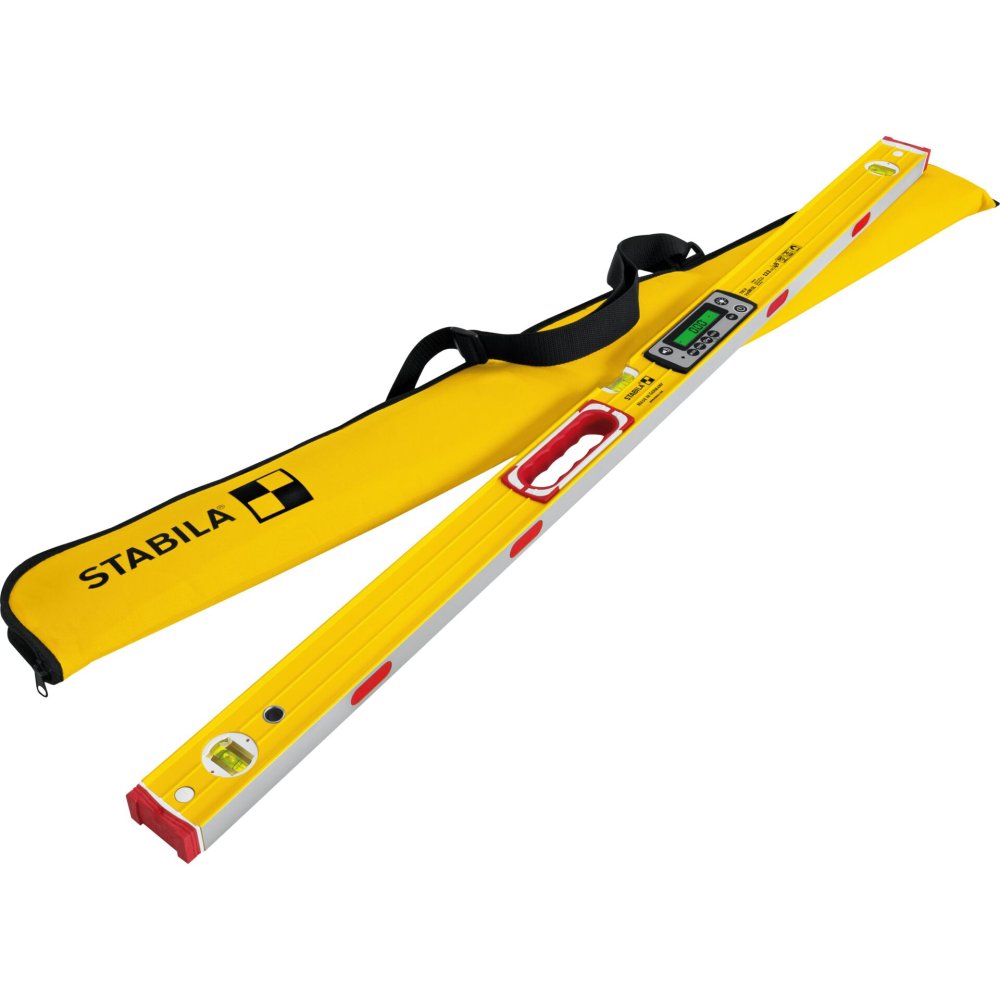

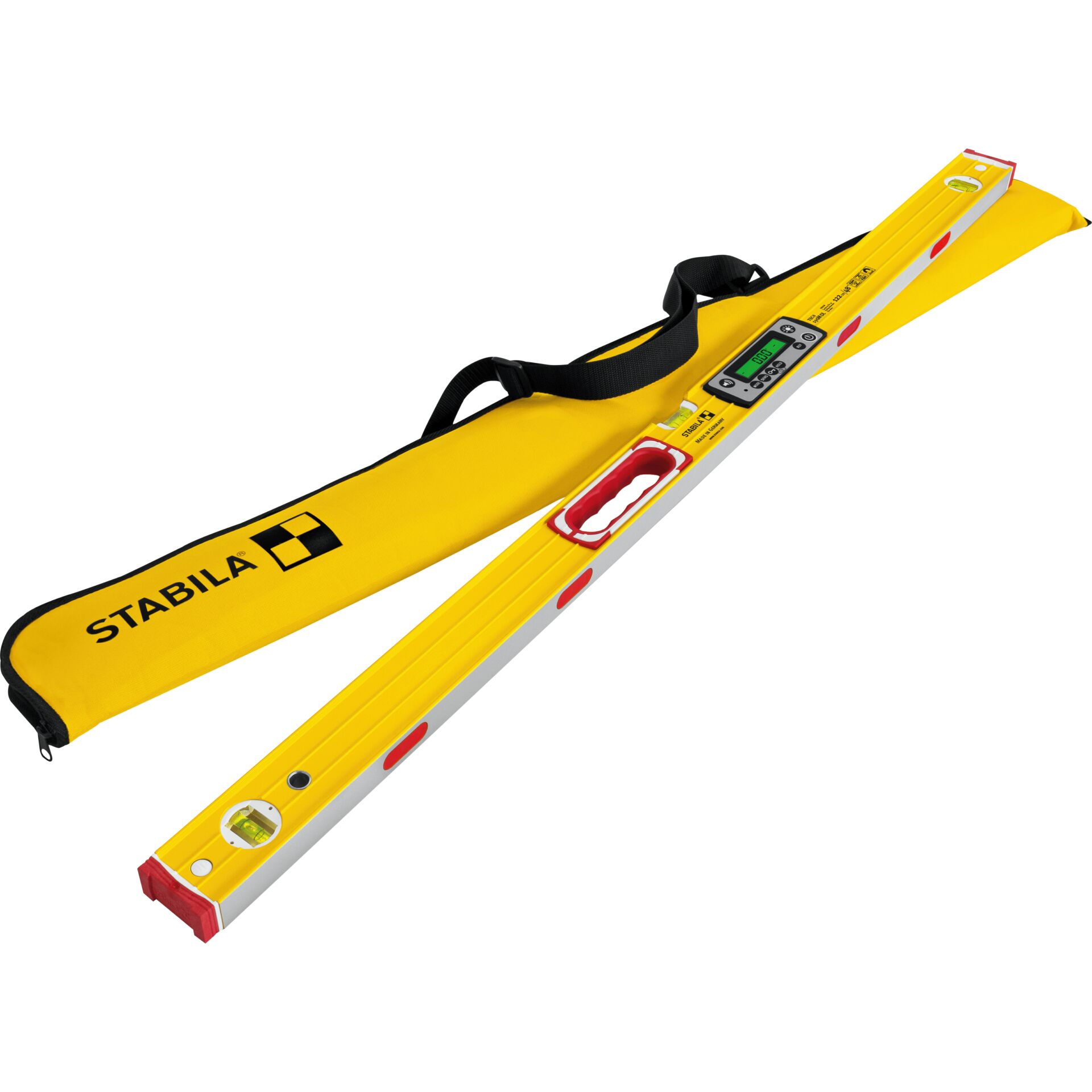

The TECH 196M DL electronic spirit level, a spirit level bag and 2 AA batteries are included.
Can an angle measurement be stored and transferred?
Yes. REF-MODE allows angles to be measured, stored and transferred.
