Amaran F22c - V-mount Flexible RGBWW LED Light Mat 60x60 cm 200W
Amaran
| Products ID: | 195230 |
|---|---|
| Manufactured by: | Amaran |
| Availablity: | SOLDOUT! |
| EAN: | 6971842183340 |
Delivery options to:
Choose country

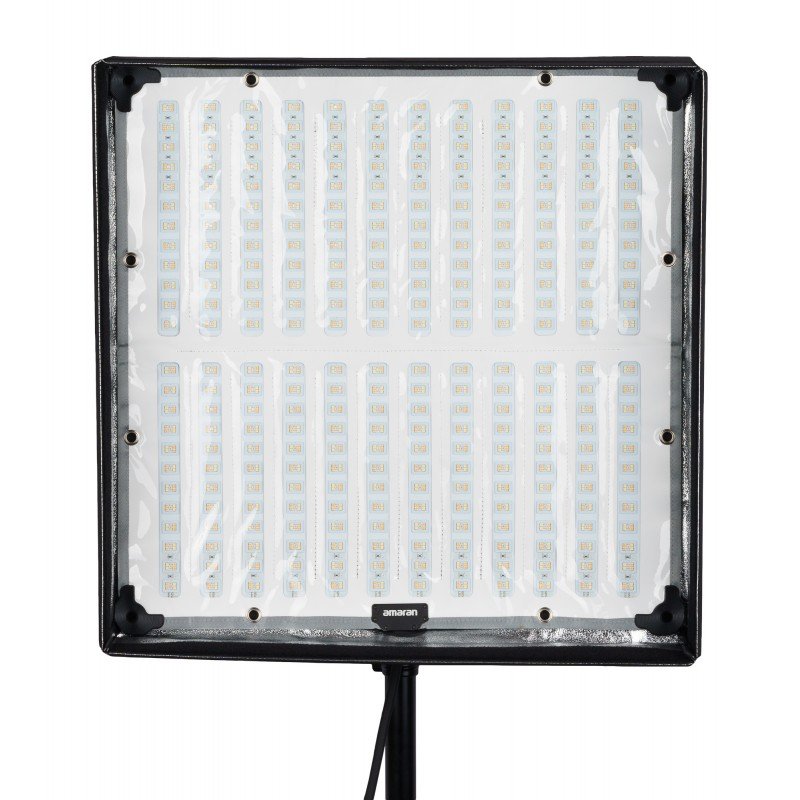

The Amaran F22c - V-mount is a 60 by 60 cm flexible LED light mat delivering up to 200 W of output power. Designed for versatile studio and on-location shooting, it measures just 5 mm in thickness and weighs 880 g, serving as an ultra-mobile alternative to heavy traditional LED panels.
Precise Color and White Light Control
Equipped with an RGBWW chipset, the light mat provides full HSI color space adjustments alongside an adjustable color temperature range from 2500 K to 7500 K. It includes green-magenta tint tuning (± 1.00 G) and built-in GEL filter simulations. High fidelity ratings, including CRI ≥95 and TLCI ≥97, ensure accurate color reproduction on film sets.
Versatile Mounting and Light Shaping

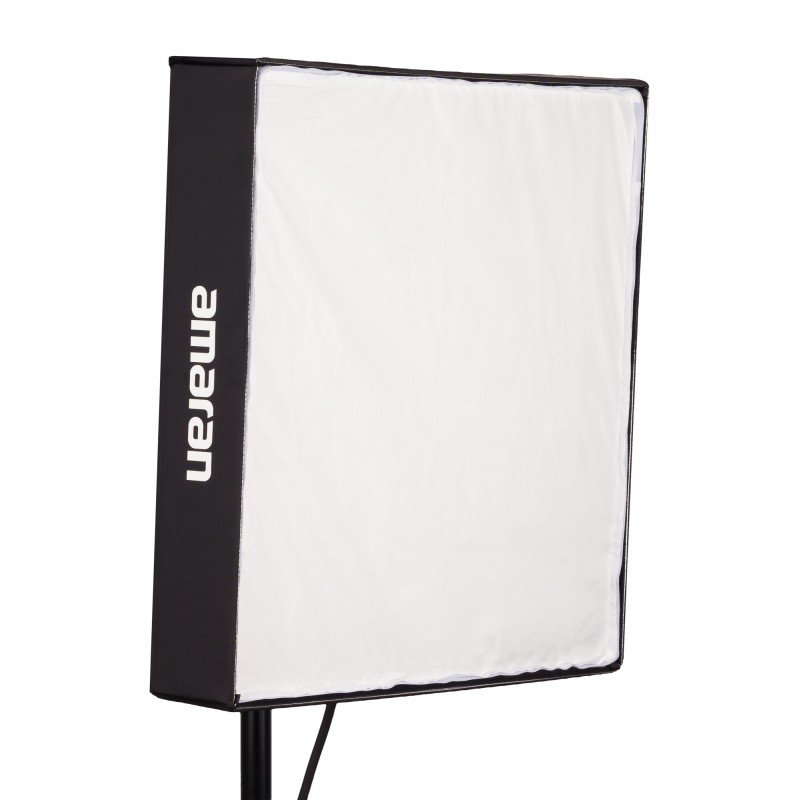

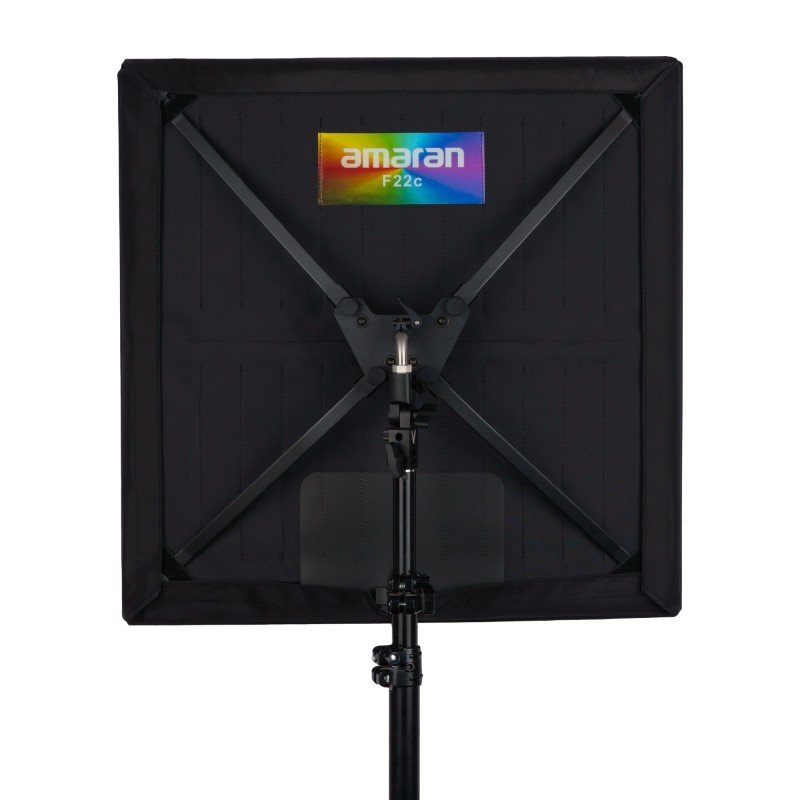

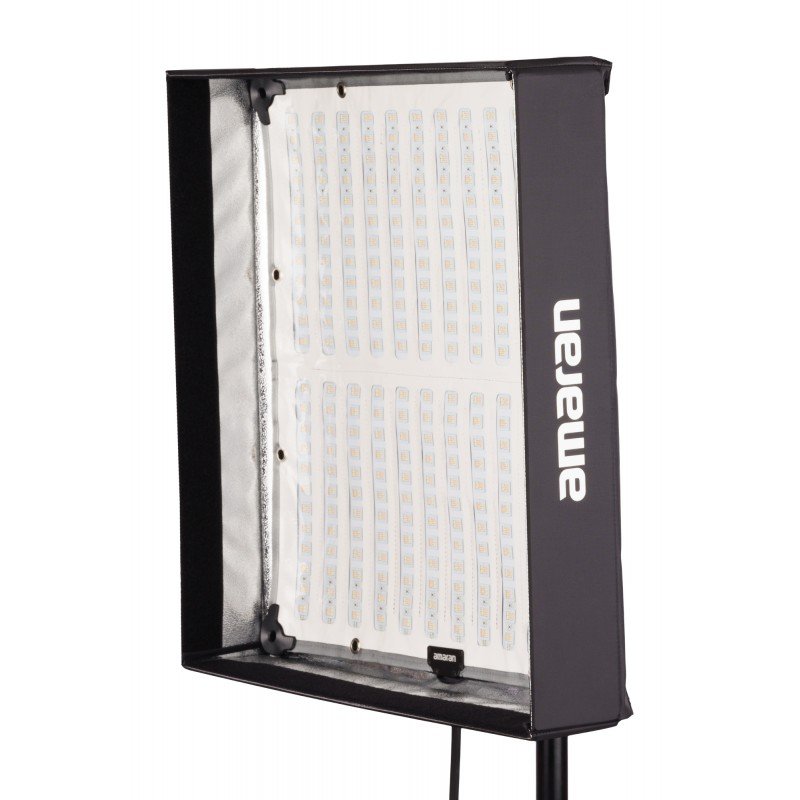

The flexible mat can be mounted using adhesive tape, zip ties, or Velcro in confined spaces, or mounted on standard light stands using the included folding X-Frame bracket and articulating adapter. The kit includes a dedicated softbox, two front diffusion fabrics (-0.5 EV and -2.5 EV), and a 45° grid to control beam spill.
External Control Box and Power Options

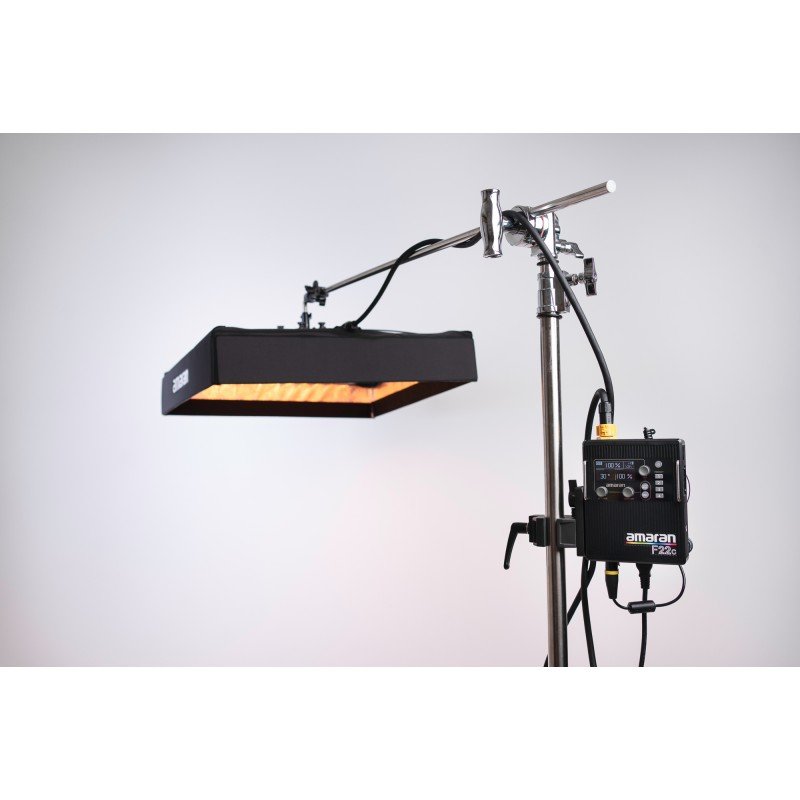

The external Control Box features an OLED display, quick-adjust controls, and an integrated V-mount plate. It operates via the included AC power supply or compatible external batteries. Remote operation is supported via the Sidus Link mobile app over Bluetooth (up to 80 meters) and wired DMX512 via a USB-C adapter.
| Model | Amaran F22c - V-mount |
|---|---|
| CRI | ≥95 |
| TLCI | ≥97 |
| CQS | ≥96 |
| TM-30 RF | 94 |
| TM-30 RG | 102 |
| SSI (Tungsten) | ≥83 |
| SSI (D56) | ≥74 |
| LED Configuration | RGBWW (red, green, blue, warm white, cool white) |
| Beam Angle | 180º (45º with grid) |
| Maximum Power Output | 200 W |
| Maximum Power Consumption | 240 W |
| Operating Current | 5 A |
| AC Power Supply | 48 V DC |
| D-Tap Battery Voltage | 12 V - 28.8 V DC |
| Compatible Battery Voltages | 16.8 V, 26 V, 28.8 V |
| DC Power Cable | 3 m (locking connector) |
| AC Power Cable | IEC C13, 4 m (locking connector) |
| Operating Temperature | -10°C - 40°C |
| Control Methods | Control panel, Sidus Link app, DMX |
| Wireless Connectivity | Bluetooth 5.0 (Sidus Mesh) |
| Wireless Range | up to 80 m |
| Firmware Upgrade | via Sidus Link app |
| Display | OLED |
| Cooling | Passive (natural heat dissipation) |
| Mounting Points | 3x 1/4" thread |
| LED Lifespan | 50 000 h |
| Certifications | CE, FCC, cTUVus, KC, NCC, ROHS |
| Lamp Dimensions | 60 x 60 x 0.5 cm |
| Dimensions with Softbox | 62.5 x 62.5 x 10.5 cm |
| Controller Dimensions | 19 x 15 x 7 cm |
| Carrying Case Dimensions | 66 x 35 x 10.5 cm |
| Lamp Weight | 0.88 kg |
| Weight with Softbox | 2.83 kg |
| Grid Weight | 116 g |
| Controller Weight | 1.2 kg |
| Power Supply Weight | 1.1 kg |
| Bracket Weight | 0.66 kg |
| Total Kit Weight with Case | 7.92 kg |
What light modifiers are included in the package?
The package includes a collapsible softbox, two diffusion fabrics (-0.5 EV and -2.5 EV), and a 45° honeycomb grid.
Can the Amaran F22c be powered by batteries?
Yes, the external Control Box features an integrated V-mount plate compatible with suitable V-mount batteries and D-Tap power sources.
How can the fixture be controlled remotely?
It can be controlled wirelessly using the Sidus Link mobile app up to 80 meters away, or integrated into a DMX512 setup using a USB-C to DMX adapter.
