AOCHUAN Smart X Pro Standard 3-axis smartphone gimbal, black
Delivery options to:

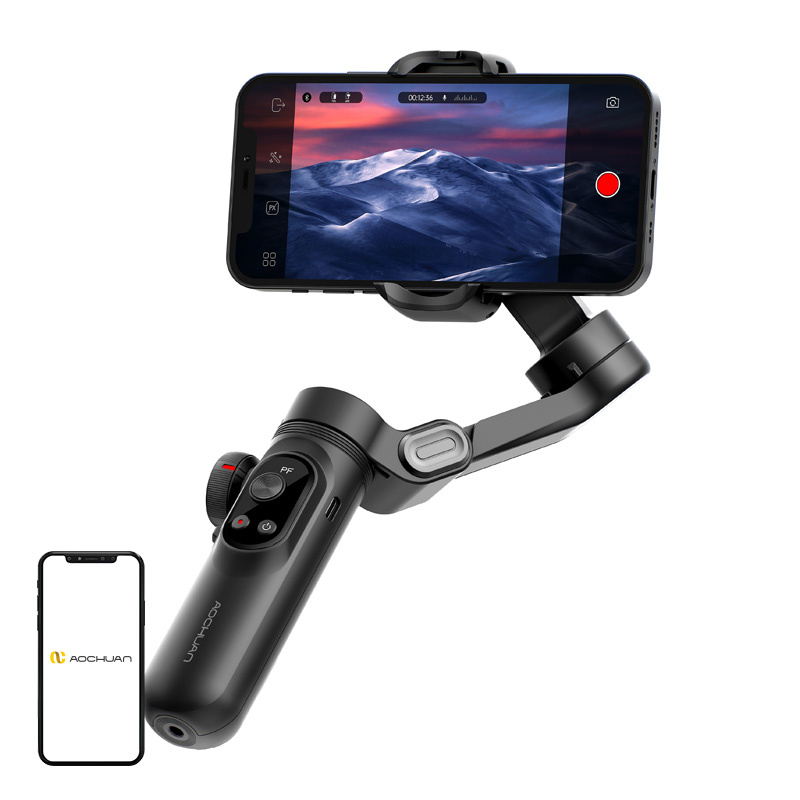

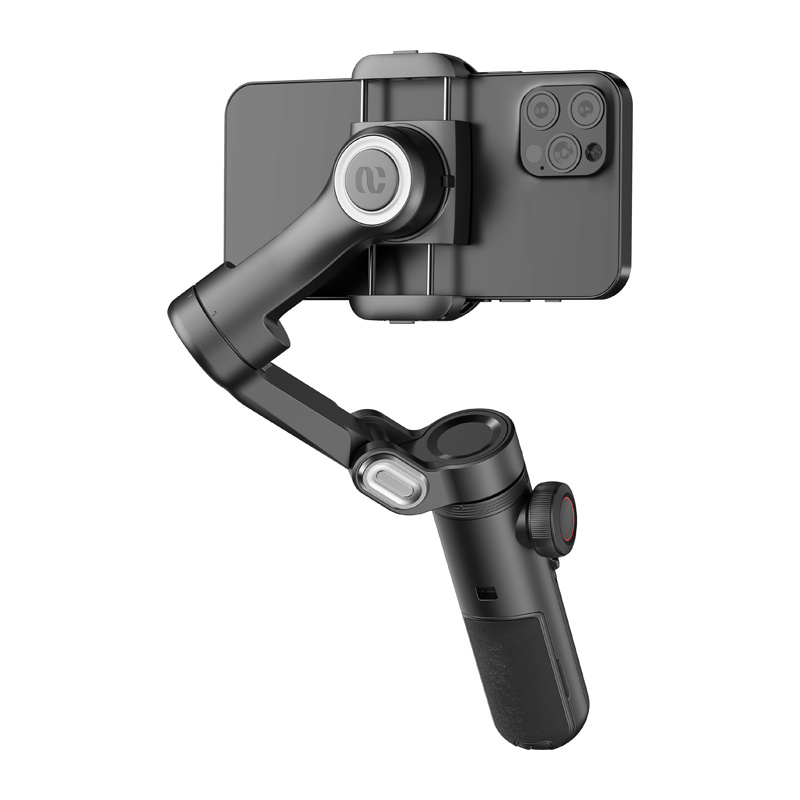

Choose countryThe AOCHUAN Smart X Pro Standard is a foldable 3-axis gimbal for smartphone filming. It helps reduce camera shake while moving and accommodates phones 55–90 mm wide and weighing up to 250 g.
Filming modes and controls
Choose from 6 modes: L, PF, F, POV, DM and S. Zoom and focus controls let you adjust your shot, while the OLED screen displays key settings.
- Movement range: 310° pan, 330° roll and 76° tilt.
- Wireless charging: a 5 V / 0.4 A output lets you top up a compatible smartphone while recording.
- Portability: the gimbal weighs 310 g and folds down to 158 × 108 × 55 mm.
Battery and included accessories
The removable 3200 mAh lithium-ion battery provides up to 7–10 hours of operation without using wireless charging. A full charge takes approximately 2.5 hours, with a 5 V / 2 A power input and USB-C charging connection. The operating temperature range is 0–45 °C.
The package includes 1 gimbal, 1 tripod, 1 USB-C charging cable and 1 user manual.
| Manufacturer | AOCHUAN |
|---|---|
| Model | Smart X Pro Standard |
| Colour | Black |
| Stabilisation type | 3-axis |
| Operating modes | L / PF / F / POV / DM / S |
| Display | OLED |
| Power supply | Removable 3.6 V / 3200 mAh lithium-ion battery |
| Operating time | Up to 7–10 hours without using wireless charging |
| Charging time | Approximately 2.5 hours |
| Operating voltage | 3.6 V |
| Power input | 5 V / 2 A |
| Wireless charging output | 5 V / 0.4 A |
| Maximum load | Up to 250 g |
| Phone width range | 55–90 mm |
| Pan range | 310° |
| Roll range | 330° |
| Tilt range | 76° |
| Dimensions unfolded | 268 × 125 × 65 mm |
| Dimensions folded | 158 × 108 × 55 mm |
| Weight | 310 g |
| Material | Polymer composite |
| Charging interface | USB-C |
| Operating temperature | 0–45 °C |
| Framing controls | Zoom and focus control |
| EAN | 6972467710331 |
|---|
Which phones fit this gimbal?
It supports phones 55–90 mm wide and weighing no more than 250 g.
Does the stated runtime include wireless phone charging?
No. The stated runtime of up to 7–10 hours applies without using wireless charging.
