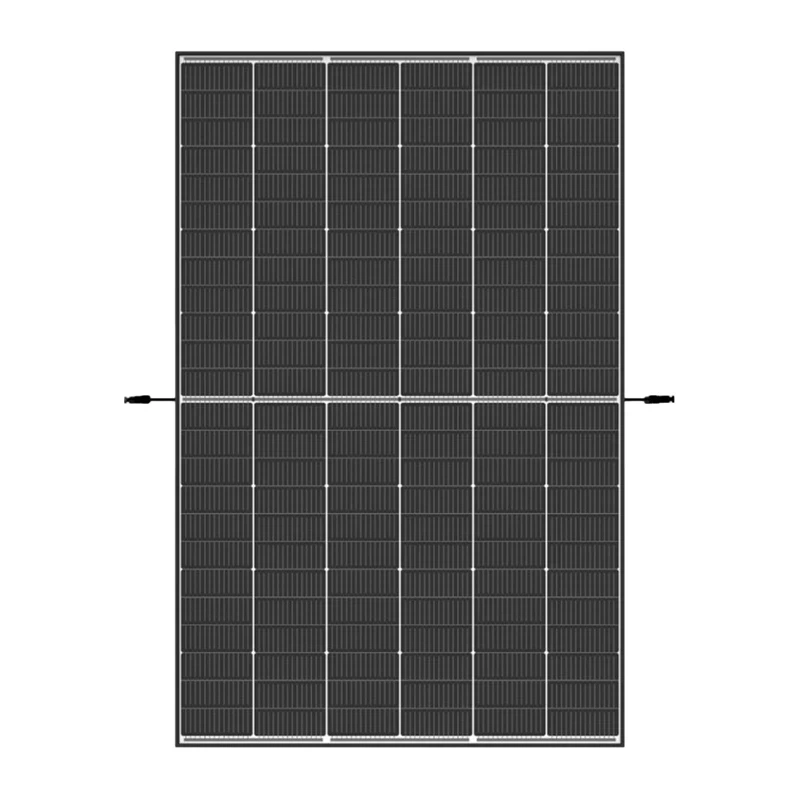

EcoFlow Trina Solar 520W Solar Panel
Price: 156.60 €
| Products ID: | 159928 |
|---|---|
| Manufactured by: | Ecoflow |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 5905156109629 |
Delivery options to:
Choose countryThe EcoFlow Trina Solar 520W is a monocrystalline photovoltaic panel featuring Ni-TOPCon cells with a maximum efficiency of 22.9%. Its double-glass construction and anodized aluminum frame provide reliable operation in various weather conditions.
Key features
- Maximum output power of 520W with 0/+5W power tolerance.
- Low temperature coefficient of -0.29%/°C for stable performance.
- Double-glass design withstands 5400 Pa snow and 2400 Pa wind loads.
- IP68 rated junction box with 3 bypass LEDs.
- Compatible with popular photovoltaic modules and mounting systems.
| Cells | Monocrystalline |
|---|---|
| Number of Cells | 108 |
| Dimensions | 1961 x 1134 x 30 mm |
| Weight | 23.5 kg |
| Front glass | 1.6 mm, AR-coated glass |
| Rear glass | 1.6 mm, thermally strengthened glass |
| Frame | 30 mm, anodized aluminum alloy |
| Junction box | IP68 rating, 3 bypass LEDs |
| Connection cables | 4.0 mm² PV cable |
| Connector | TS4, TS4 Plus, MC4 EV02 |
What are the dimensions of the solar panel?
The panel measures 1961 x 1134 x 30 mm and weighs 23.5 kg.
What is the maximum wind and snow load capacity?
It can withstand snow loads up to 5400 Pa and wind loads up to 2400 Pa.
