Solar Panel Bracket for Standing Seam Metal Roof (Click)
Price: 8.60 €
| Products ID: | 171877 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000822683 |
Delivery options to:

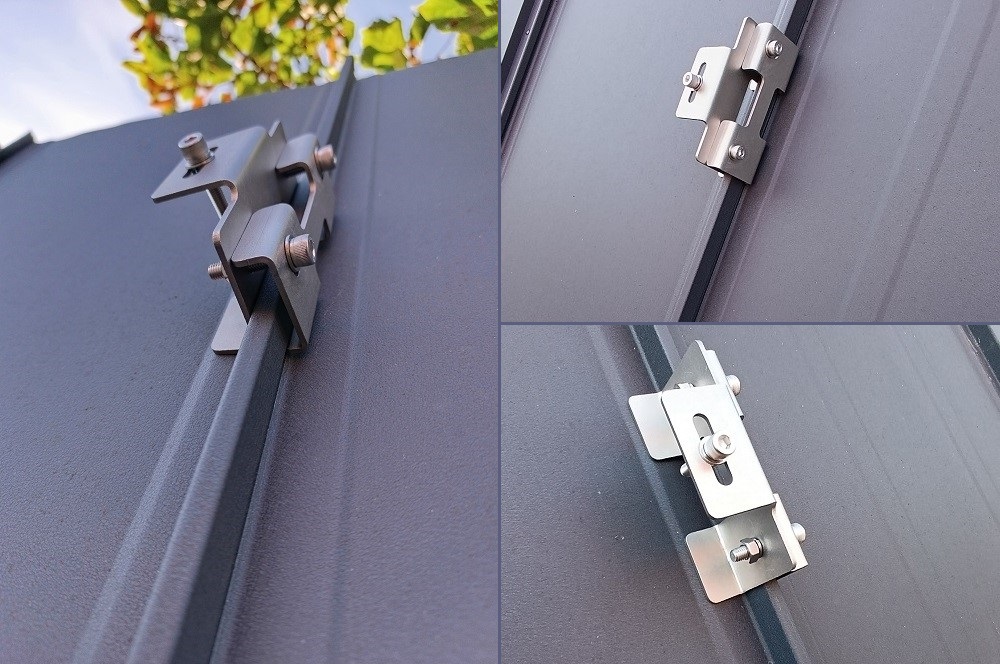

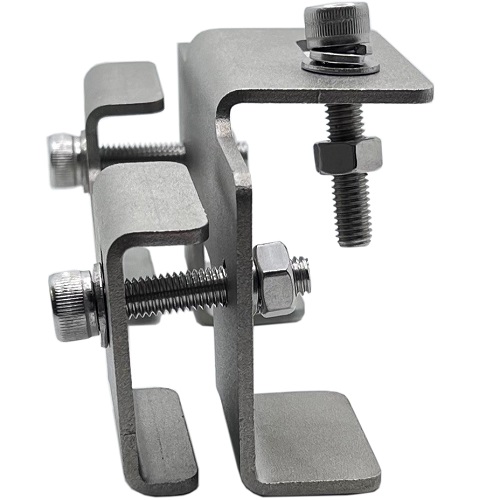

Choose countryStainless steel roof bracket designed for mounting solar panel rails directly onto Click-lock standing seam sheet metal roofs. It clamps securely onto the seam without penetrating or damaging the roof surface.
Key Features
- Non-penetrating installation directly onto standing seam metal roofs
- Manufactured from A2-70 grade 304 stainless steel
- Includes stainless steel M8x50 bolts, nuts, flat washers, and spring washers
- Functions as an adapter for solar mounting rails
| Material | Stainless steel A2-70, grade 304 |
|---|---|
| Application | Standing seam sheet metal roofing (Click-lock) |
| Bracket dimensions | 140 x 67 x 73 mm |
| Bolt dimensions | Ø7.5 mm x 49 mm |
| Bracket weight | 333 g |
| Total weight | 489 g (with bolts) |
| Set contents | 2 bracket parts, 3x bolts, 3x nuts, 3x flat washers, 3x spring washers |
Does this bracket require drilling into the roof?
No, the bracket clamps directly onto the standing seam and is secured with bolts without penetrating the roof sheet.
What is included in the package?
The package includes 2 bracket parts, 3 bolts, 3 nuts, 3 flat washers, and 3 spring washers.
