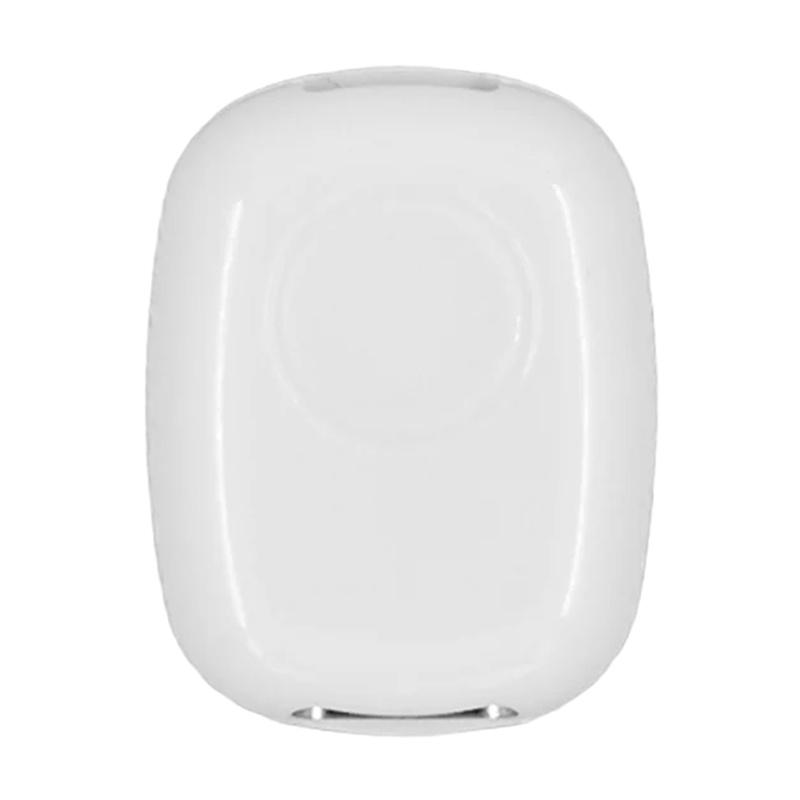

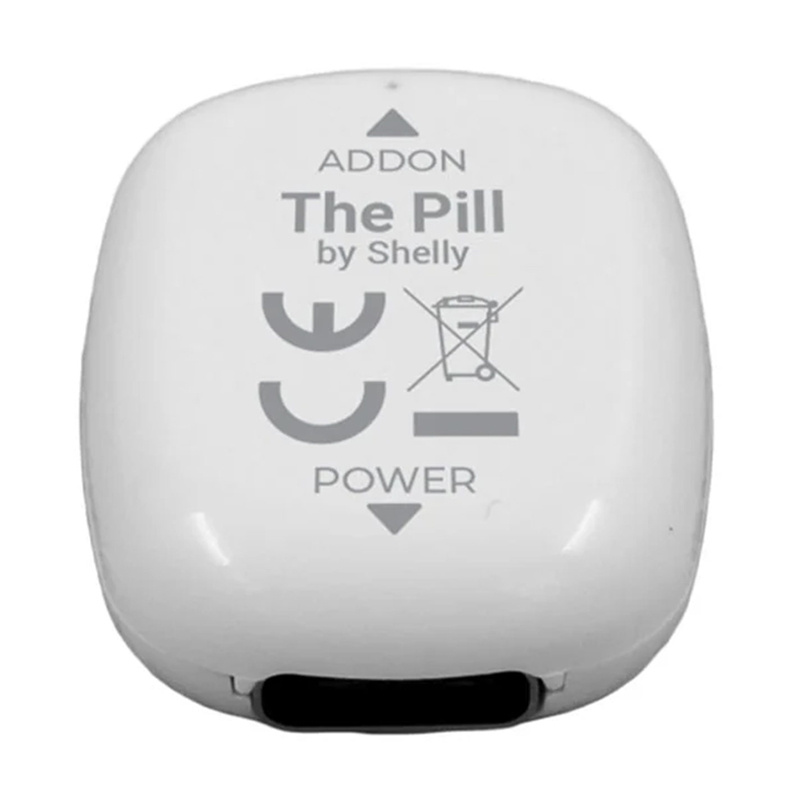

Shelly The Pill Universal Wi-Fi and Bluetooth Sensor, White
27.40 €
incl. VAT
In supplier warehouse · 349 pcs. Delivery Time: 4–10 business days
In your cart: 0
Delivery options to:
Choose countryShelly The Pill is a compact module designed to integrate with sensors and smart automation systems. Equipped with 2.4 GHz Wi-Fi and Bluetooth BLE 4.2 connectivity, it operates continuously via USB-C power.
Key Features
- Supports up to five DS18B20 temperature probes and one DHT22 temperature and humidity sensor
- Powered by an ESP32-C3 microcontroller with 8 MB Flash, supporting MQTT, WebSocket, HTTP, and scripting
- Integrated DC voltmeter with a measuring range of 0 to 2.5 V
- Configurable 3.3 V digital input and output modes
- Ultra-compact plastic housing measuring 26 × 19.95 × 8.5 mm and weighing 3 g
| Manufacturer | Shelly |
|---|---|
| Model | Pill |
| Color | White |
| Dimensions | 26 × 19.95 × 8.5 mm |
| Weight | 3 g |
| Housing material | Plastic |

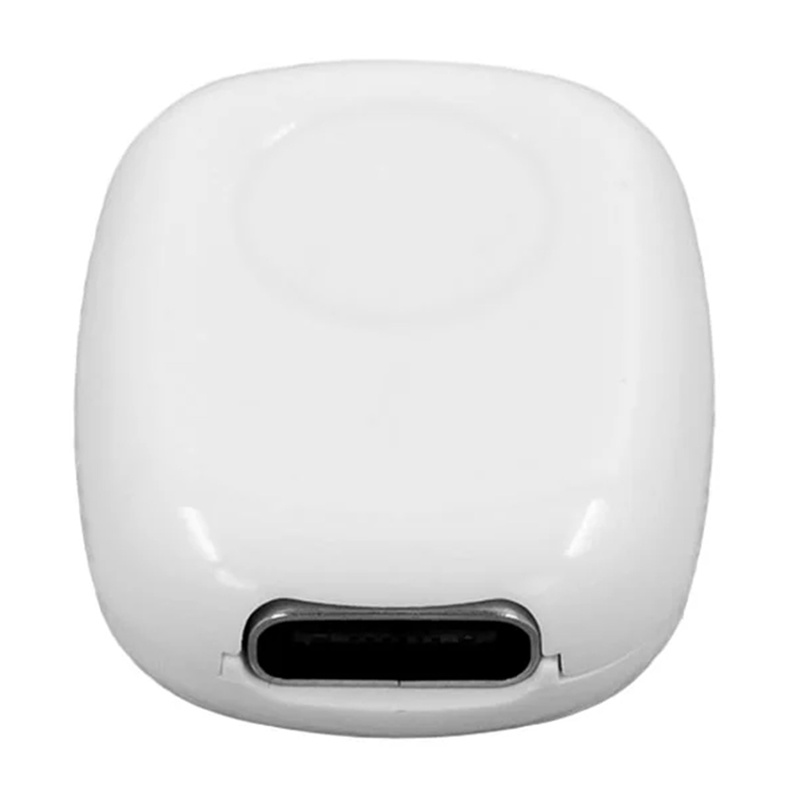

| Power supply | 5 V DC (via USB Type-C port) |
| Power consumption | < 1 W |
| Processor | Shelly ESP32-C3 (ESP-Shelly-C38F) |
| Flash memory | 8 MB |
| Wi-Fi connectivity | 802.11 b/g/n (2401–2483 MHz) |
| Bluetooth connectivity | BLE 4.2 (2402–2480 MHz) |
| Built-in DC voltmeter | 0–2.5 V |
| Supported external sensors | 1 × DHT22, up to 5 × DS18B20 |
| Operating temperature | -20°C to 40°C |

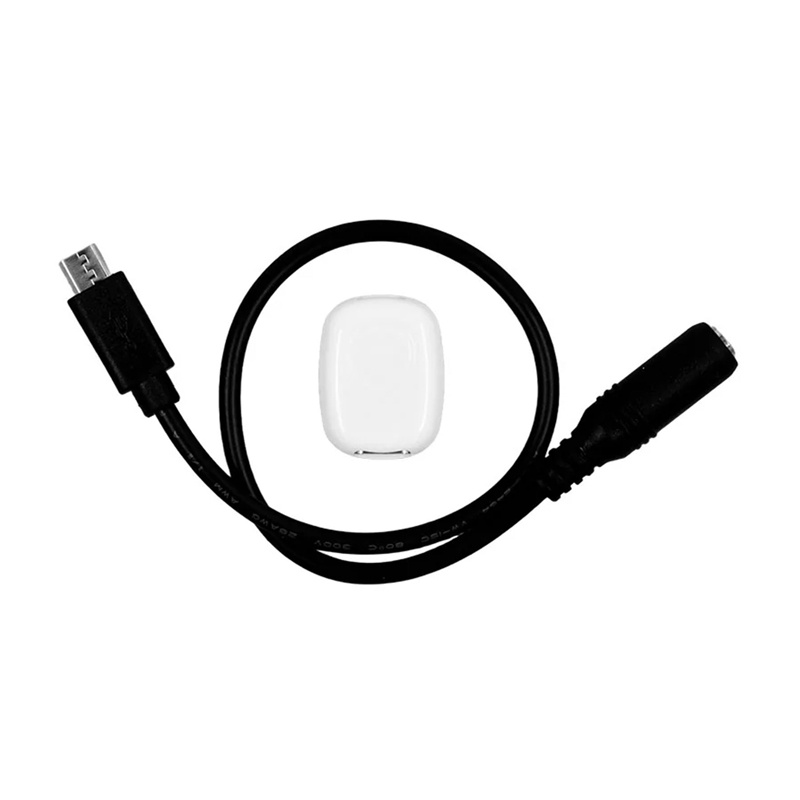

| Package contents | Sensor, USB-C cable |
| EAN | 3800238073558 |
|---|
Which external sensors are compatible with Shelly The Pill?
Shelly The Pill supports one DHT22 temperature and humidity sensor or up to five DS18B20 temperature probes simultaneously.
How is Shelly The Pill powered?
It is powered via a 5 V DC USB Type-C port, consuming less than 1 W of power.
What is included in the package?
The package includes the Shelly The Pill sensor and a USB-C cable.
