Shelly Plus Add-on Sensor Adapter for Shelly Plus Devices

23.60 € 28.30 € You save 4.70 € incl. VAT
In supplier warehouse · 113 pcs. Delivery Time: 4–10 business days

In your cart: 0

Delivery options to:

Choose country

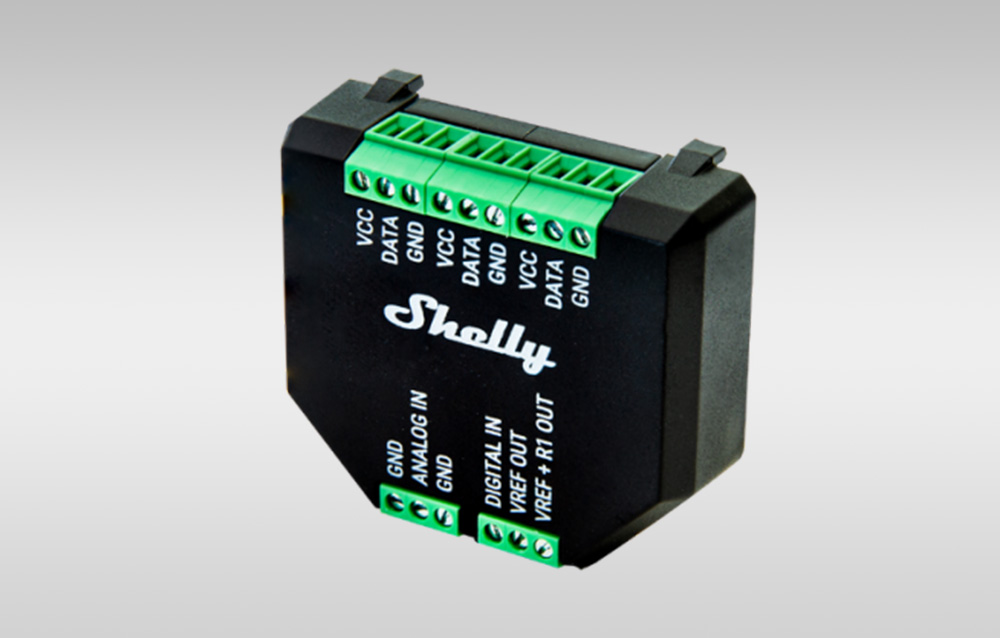

The Shelly Plus Add-on is a galvanically isolated sensor interface created for Shelly Plus devices to expand functionality and sensor integration in home automation systems.

Key Features

  • Device Compatibility: works with Shelly Plus 1, Shelly Plus 1PM, Shelly Plus 2PM, and Shelly Plus i4 / i4DC.
  • Galvanic Isolation: ensures a separate, reliable connection for external sensors.
  • Compact Dimensions: measuring 37 × 42 × 15 mm, it installs conveniently in tight installation spaces.

ManufacturerShelly
ModelPlus Add-on
Dimensions37 × 42 × 15 mm
Weight105 g
Operating Temperature-20°C to 40°C
Humidity30% to 70%
Max. Altitude2000 m
DC Supply Voltage3.3 V
Power Consumption< 0.5 W
VCC max.10 mA
VREF OUT max.1 mA
VREF+R1 OUT10 kΩ
CompatibilityShelly Plus 1 / 1PM, Shelly Plus 2PM, Shelly Plus i4 / i4DC
EAN3800235266427
Which devices are compatible with the Shelly Plus Add-on?

It is compatible with Shelly Plus 1 / 1PM, Shelly Plus 2PM, and Shelly Plus i4 / i4DC.

What are the physical dimensions of the Shelly Plus Add-on?

The adapter measures 37 × 42 × 15 mm and weighs 105 g.
